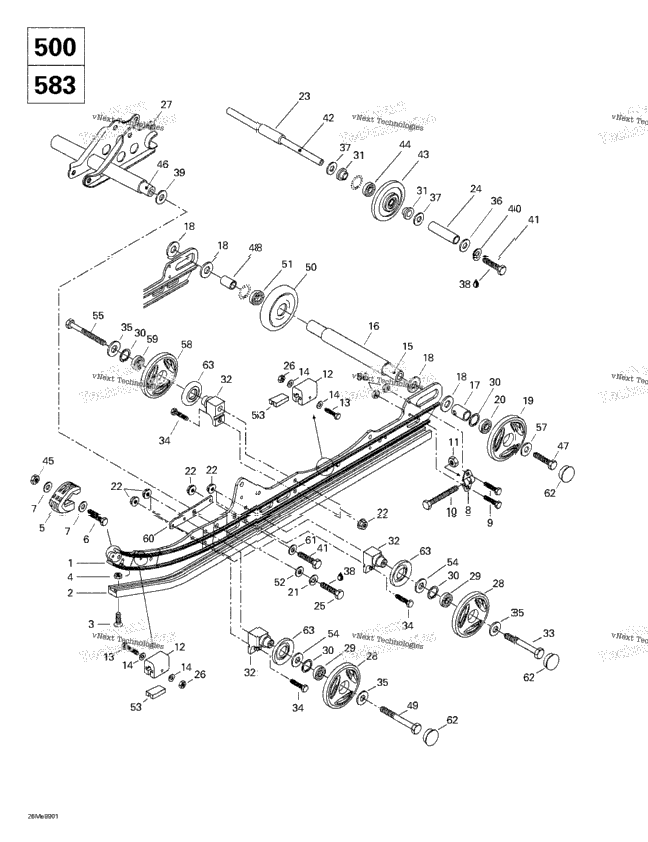

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 503188960 | Runner (121") Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 560103300 | Runner Shoe Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 2 | 216362560 | Countersunk Phillips Screw M6 x 25 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 2 | 228561045 | Elastic Stop Nut M6 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 572075400 | RUNNER PROTECTOR Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 222052565 | SCREW-HEX.CAP DIN.933 Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 4 | 391301600 | Washer Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 503155300 | Tensioner Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 4 | 222062065 | Hex. Screw M6 x 20 Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 230100044 | HEX. SCREW M10 X 100 Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 228501045 | Elastic Stop Nut M10 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 570063000 | Rubber Stopper Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 222054065 | SCREW-HEX.CAP DIN.931 Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 8 | 391301700 | Washer Formula Deluxe 500 LC. Formula Deluxe 583. | 8 |
| 1 | 503160700 | Rear Axle Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 503183000 | CENTRAL SPACER Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 503189075 | Outer Spacer Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 4 | 503180400 | Washer Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 2 | 572097712 | Wheel 165 Includes 19 - 20. Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 2 | 405404500 | Ball Bearing 6205 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 224721218 | Lock Washer 12 mm Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 16 | 228781045 | Elastic Flange Stop Nut M8 Formula Deluxe 500 LC. Formula Deluxe 583. | 16 |
| 503153100 | Spacer Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 503188951 | External Spacer Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 222023565 | SCREW-HEX.CAP M12 X 35 Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 4 | 228551045 | Elastic Stop Nut M5 Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 503185000 | Welded Shock Support Formula Deluxe 500 LC. | ||
| 503188976 | Welded Shock Support Formula Deluxe 583. | ||
| 4 | 572097612 | Bonded Wheel 135 Includes 28 - 29. Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 4 | 405404500 | Ball Bearing 6205 Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 371901700 | CIRCLIP Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 4 | 415112700 | Cushion Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 503174600 | SUPPORT Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 222088565 | Hex. Screw M8 x 85 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 6 | 222082565 | Hex. Screw M8 x 25 Formula Deluxe 500 LC. Formula Deluxe 583. | 6 |
| 6 | 503183100 | Washer Formula Deluxe 500 LC. Formula Deluxe 583. | 6 |
| 2 | 503183200 | Yellow, Washer Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 4 | 503154000 | WASHER Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 1 | 413707400 | Loctite 271, 10cc Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 503175400 | Hardened Washer Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 224781140 | Lock Washer 8 mm Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 6 | 222083065 | Hex. Screw M8 x 30 Formula Deluxe 500 LC. Formula Deluxe 583. | 6 |
| 503160000 | Wheel Support Axle Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 572018900 | IDLER WHEEL Includes 43 - 44. Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 2 | 228551045 | Elastic Stop Nut M5 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 503174900 | Lower Axle Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 732601002 | Hex. Screw Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 1 | 503182900 | Inner Spacer Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 2 | 222089065 | Hex. Screw M8 x 90 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 1 | 572045800 | Wheel 165 Includes 50 - 51. Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 1 | 405404500 | Ball Bearing 6205 Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 2 | 224021251 | Flat Washer 12 mm Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 4 | 572084800 | Reinforcement Stopper Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 503173700 | WASHER Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 222088065 | Hex. Screw M8 x 80 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 4 | 228761045 | Elastic Flange Nut M6 Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 2 | 503183300 | Washer Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 2 | 503188997 | Wheel 135 Includes 58 - 59. Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 503189060 | Reinforcement Plate Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 4 | 224081171 | Flat Washer 8 mm Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 6 | 570063600 | Wheel Cap Formula Deluxe 500 LC. Formula Deluxe 583. | 6 |
| 6 | 572089000 | LABYRINTH SEAL Formula Deluxe 500 LC. Formula Deluxe 583. | 6 |
