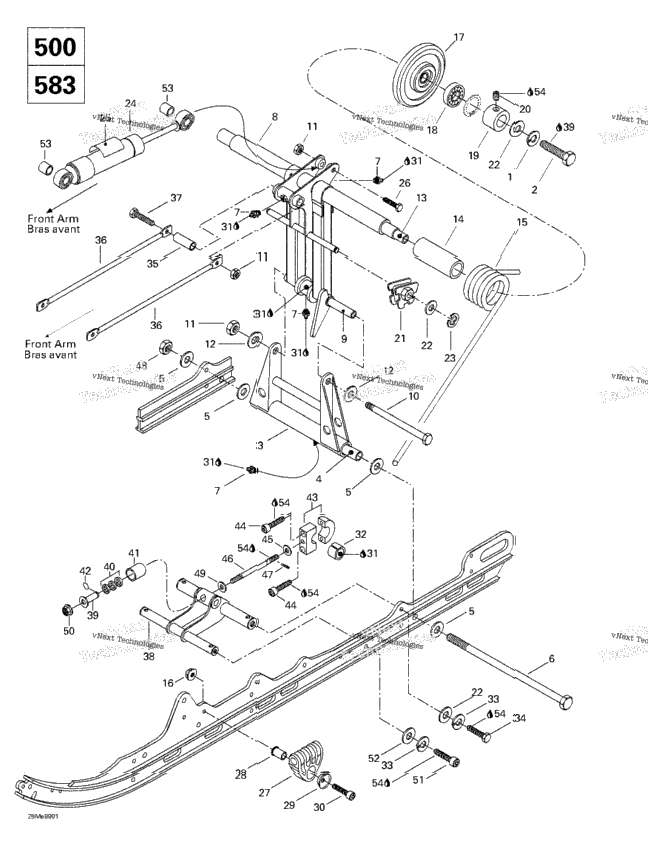

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 213000003 | Lock Washer 10 mm Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 2 | 222003565 | Hex. Screw M10 x 35 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 503169200 | Pivot Welded Arm Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 503154703 | Lower Axle Pivot Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 4 | 224081201 | FLAT WASHER Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 1 | 732601198 | Long Bolt M8 Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 4 | 408200700 | Grease Fitting Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 503189230 | Welded Rear Arm Formula Deluxe 500 LC. | ||
| 503188961 | Rear Arm Formula Deluxe 583. | ||
| 1 | 503144300 | Upper Axle, Pivot Arm Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 1 | 732601197 | Bolt M8, Short Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 3 | 228581045 | Elastic Stop Nut M8 Formula Deluxe 500 LC. Formula Deluxe 583. | 3 |
| 2 | 224081171 | Flat Washer 8 mm Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 503168700 | Rear Cross Shaft Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 572080700 | Bushing Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 415010500 | RH Spring Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 414944200 | RH Spring (Europe) Formula Deluxe 500 LC. | ||
| 415010600 | LH Spring Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 414944300 | LH SPRING (EUROPE) Formula Deluxe 500 LC. | ||
| 2 | 228781045 | Elastic Flange Stop Nut M8 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 572091400 | Idler Wheel Includes 17 - 18. Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 405404500 | Ball Bearing 6205 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 2 | 503168800 | Retaining Ring Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 2 | 222560865 | Socket Set Screw M6 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 1 | 572030800 | LH ADJUST CAM Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 1 | 572030900 | RH ADJUST CAM Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 6 | 224001211 | Flat Washer 10 mm Formula Deluxe 500 LC. Formula Deluxe 583. | 6 |
| 371907100 | e Circlip Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 503189172 | Rear Shock Formula Deluxe 500 LC. | ||
| 503189257 | Rear Shock (Europe) Formula Deluxe 500 LC. | ||
| 415094900 | Rear Shock Formula Deluxe 583. | ||
| 516000181 | Shock Decal Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 516000182 | HPG Decal (Europe) Formula Deluxe 500 LC. | ||
| 1 | 222085065 | Hex. Screw M8 x 50 Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 2 | 503188933 | Spring Support Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 503188934 | Spring Guide Axle Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 503188929 | CUSHION RETAINER Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 222984565 | Socket Head Screw M8 x 45 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 413706100 | LITHIUM GREASE, 400 GR Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 1 | 415027800 | CUSHION Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 224701188 | WASHER-LOCK SPRING DIN.128A-A2 Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 222003065 | Hex. Screw M10 x 30 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 503158600 | Tie Rod Shaft Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 503187100 | Tie Rod Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 1 | 222087565 | Hex. Screw M8 x 75 Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 503188969 | Bracket Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 503172900 | Bushing Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 3 | 570049600 | RUBBER STOPPER Formula Deluxe 500 LC. Formula Deluxe 583. | 3 |
| 503103600 | Cup Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 371910700 | Circlip Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 503189044 | Pivot Block Ass'y Includes 43 - 47. Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 222983065 | Socket Head Screw M8 x 30 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| XXXX | Not Available As Spare Part - Washer Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| XXXX | Not Available As Spare Part - Threaded Rod Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 732804011 | Rolled Pin M3 x 18 Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 1 | 228781045 | Elastic Flange Stop Nut M8 Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 503183400 | WASHER Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 1 | 228701045 | Flange Elastic Nut M10 Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
| 2 | 222903565 | Socket Head Screw M10 x 35 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 503176700 | Hardened Washer 10 mm Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 414802600 | CUSHION Formula Deluxe 500 LC. | ||
| 1 | 413707400 | Loctite 271, 10cc Formula Deluxe 500 LC. Formula Deluxe 583. | 1 |
