Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

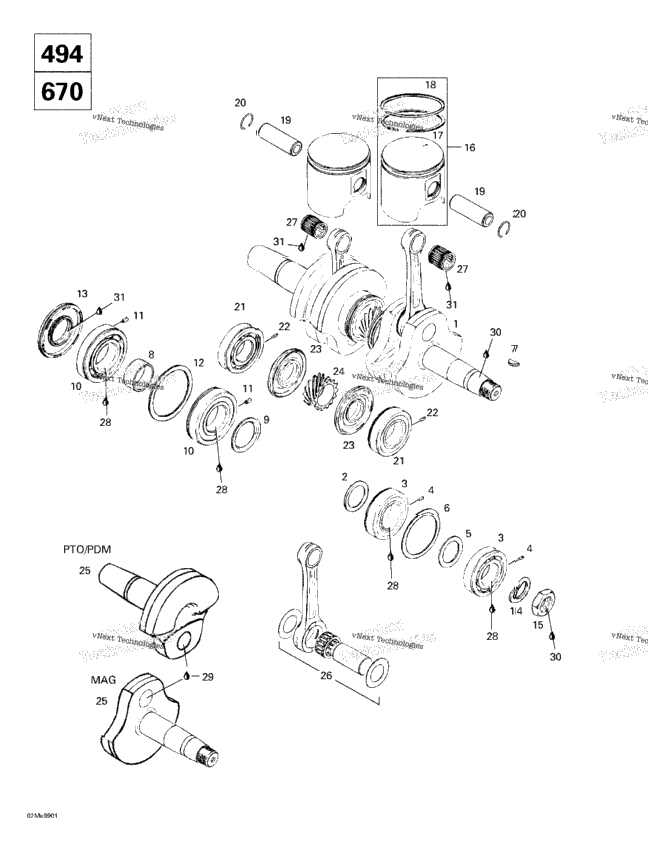

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 420886932 | Crankshaft Ass'y Includes 1 - 15. Formula Deluxe 500 LC. | ||
| 420887985 | Crankshaft Ass'y Includes 1 - 13. Formula Deluxe 670. | ||
| 1 | 420827445 | DISTANCE RING Formula Deluxe 500 LC. Formula Deluxe 670. | 1 |
| 420932589 | BALL BEARING 6206 ASS'Y Includes 3 - 4. Formula Deluxe 500 LC. | ||
| 420832538 | BALL BEARING Formula Deluxe 670. | ||
| 420929972 | Dowel Pin Formula Deluxe 500 LC. Formula Deluxe 670. | ||
| 1 | 420427684 | ADJUSTMENT WASHER Formula Deluxe 500 LC. Formula Deluxe 670. | 1 |
| 1 | 420827050 | RETAINING DISK Formula Deluxe 500 LC. Formula Deluxe 670. | 1 |
| 1 | 420246015 | Woodruff Key Formula Deluxe 500 LC. Formula Deluxe 670. | 1 |
| 420847684 | Distance Sleeve Formula Deluxe 500 LC. Formula Deluxe 670. | ||
| 1 | 420827760 | DISTANCE RING Formula Deluxe 500 LC. Formula Deluxe 670. | 1 |
| 2 | 420832574 | BALL BEARING Includes 10 - 11. Formula Deluxe 500 LC. Formula Deluxe 670. | 2 |
| 1 | 420927710 | Retaining Disk Formula Deluxe 500 LC. Formula Deluxe 670. | 1 |
| 1 | 420831950 | Oil Seal Formula Deluxe 500 LC. Formula Deluxe 670. | 1 |
| 1 | 420945759 | Lock Washer, 22 mm Formula Deluxe 500 LC. Formula Deluxe 670. | 1 |
| 1 | 420842230 | Hex. Nut M22 X 15 Formula Deluxe 500 LC. Formula Deluxe 670. | 1 |
| 420887553 | Piston Ass'y (2 rings 69.39 mm) Includes 16 - 18. Formula Deluxe 500 LC. | ||
| 420887610 | Piston Ass'y (2 rings 77.90 mm) Formula Deluxe 670. | ||
| 420887554 | Oversize Pist. Ass'y (2 rings 69.64 mm) Formula Deluxe 500 LC. | ||
| 420887611 | Oversize Pist. Ass'y (2 rings 78.15 mm) Formula Deluxe 670. | ||
| 420915985 | Rectangular Ring 69.5 mm Formula Deluxe 500 LC. | ||
| 420815025 | Rectangular Ring 78.0 mm Formula Deluxe 670. | ||
| 420915986 | OVERSIZE RECTANGULAR RING 69.75 MM Formula Deluxe 500 LC. | ||
| 420815021 | Oversize Rectangular Ring 78.25 mm Formula Deluxe 670. | ||
| 420815045 | Semi-trapez Ring 69.5 mm Formula Deluxe 500 LC. | ||
| 2 | 420815090 | SEMI-TRAPEZ RING 78.00 MM Formula Deluxe 670. | 2 |
| 420815046 | Oversize Semi-trapez Ring 69.75 mm Formula Deluxe 500 LC. | ||
| 420815091 | Oversize Semi-trapez Ring 78.25 mm Formula Deluxe 670. | ||
| 420916186 | GUDGEON PIN Formula Deluxe 500 LC. | ||
| 420916370 | GUDGEON PIN Formula Deluxe 670. | ||
| 4 | 420945735 | Piston Circlip Formula Deluxe 500 LC. | 4 |
| 4 | 420845100 | CIRCLIP Formula Deluxe 670. | 4 |
| 420932589 | BALL BEARING 6206 ASS'Y Includes 21 - 22. Formula Deluxe 500 LC. | ||
| 2 | 420831990 | Oil Seal Formula Deluxe 500 LC. Formula Deluxe 670. | 2 |
| 420935748 | Central Gear 14 Teeth Formula Deluxe 500 LC. Formula Deluxe 670. | ||
| 420818660 | Crankshaft (PTO side) Formula Deluxe 500 LC. | ||
| 420818704 | Crankshaft (PTO side) Formula Deluxe 670. | ||
| 420818690 | Crankshaft (MAG side) Formula Deluxe 500 LC. | ||
| 420818733 | Crankshaft (MAG side) Formula Deluxe 670. | ||
| 420886955 | Crankshaft Repair Kit (PTO side) Formula Deluxe 500 LC. | ||
| 420887988 | Crankshaft Repair Kit (MAG side) Formula Deluxe 670. | ||
| 420886956 | CRANKSHAFT REPAIR KIT (MAG SIDE) Formula Deluxe 500 LC. | ||
| 420887989 | Crankshaft Repair Kit (PTO side) Formula Deluxe 670. | ||
| 420832438 | Needle Bearing Formula Deluxe 500 LC. | ||
| 2 | 420832442 | Needle Bearing Formula Deluxe 670. | 2 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML Formula Deluxe 500 LC. Formula Deluxe 670. | ||
| 1 | 293800039 | Loctite 642, 50 ml Formula Deluxe 500 LC. Formula Deluxe 670. | 1 |
| 1 | 413703000 | Loctite 242, 10 cc Formula Deluxe 500 LC. Formula Deluxe 670. | 1 |
| 1 | 413707000 | Dow Corning 111, 150 g Formula Deluxe 500 LC. Formula Deluxe 670. | 1 |
