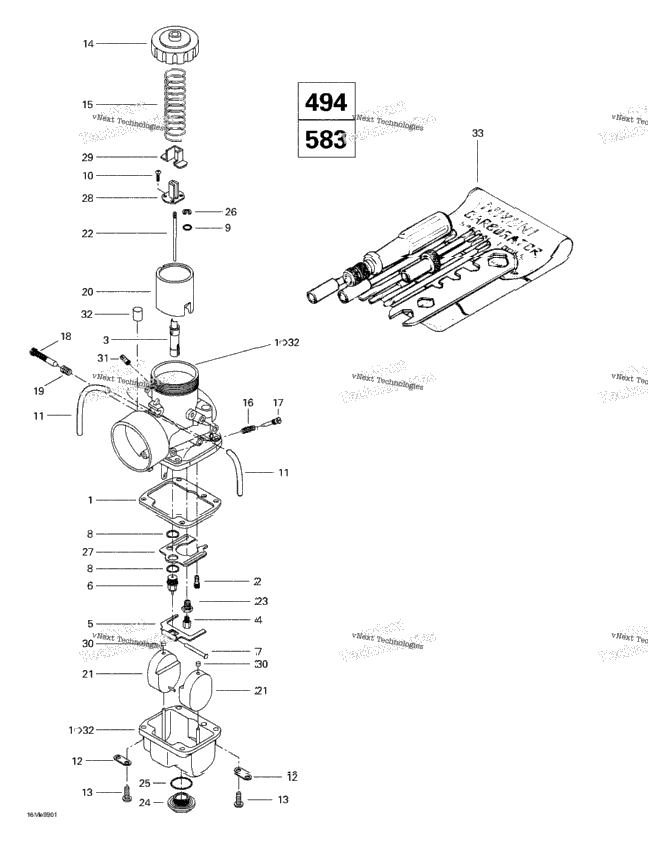

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 403138527 | Carburetor VM 38-408 (PTO) Includes 1 - 32. Formula Deluxe 500 LC. | ||
| 403138528 | Carburetor VM 38-409 (MAG) Formula Deluxe 500 LC. | ||
| 403138511 | Carburetor VM 38-416 (PTO) Formula Deluxe 583. | ||
| 403138512 | Carburetor VM 38-417 (MAG) Formula Deluxe 583. | ||
| 404104700 | GASKET Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 404109500 | PILOT JET 50 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 404160900 | Needle Jet NJ-480-Q3 Formula Deluxe 500 LC. | ||
| 404156900 | Needle Jet NJ-480-P7 Formula Deluxe 583. | ||
| 1 | 404101200 | Main Jet MJ 300 (PTO) Formula Deluxe 500 LC. | 1 |
| 1 | 404100400 | Main Jet MJ 270 Formula Deluxe 583. | 1 |
| 1 | 404100500 | Main Jet MJ 280 Formula Deluxe 500 LC. | 1 |
| 1 | 404100600 | Main Jet 260 Formula Deluxe 583. | 1 |
| 2 | 404105000 | FLOAT LEVER Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 2 | 404147400 | Needle Valve 1.5 Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 2 | 404103300 | Lever Pin Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 4 | 404101600 | Seat Washer Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 2 | 404117000 | Packing Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 4 | 404121300 | Screw With Washer Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 404161802 | Air Vent Tube Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 4 | 404103000 | PLATE Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 8 | 404102000 | Screw With Lock Washer Formula Deluxe 500 LC. Formula Deluxe 583. | 8 |
| 404105100 | COVER Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 404154800 | Spring Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 404139800 | SPRING Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 404149000 | AIR SCREW Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 404102800 | IDLE SPEED SCREW Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 404101700 | Spring Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 404131300 | Piston Valve CA 2.5 Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 404105400 | FLOAT Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 404161820 | Jet Needle J8 6DGY09 Formula Deluxe 500 LC. | ||
| 404159900 | Jet Needle J8 6DEY4 Formula Deluxe 583. | ||
| 2 | 404105500 | Guide Screw Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 404105600 | DRAIN PLUG SCREW Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 404101500 | O-RING Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 2 | 404152400 | E-Ring Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| XXXX | Not Available As Spare Part - Baffle Plate Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 2 | 404160800 | CONNECTOR Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 2 | 404122100 | Cover Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 4 | 404105800 | Cap Formula Deluxe 500 LC. Formula Deluxe 583. | 4 |
| 2 | 404153400 | Nipple Formula Deluxe 500 LC. Formula Deluxe 583. | 2 |
| 404158900 | Filter Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 404112000 | TOOL KIT Formula Deluxe 500 LC. Formula Deluxe 583. | ||
| 861767300 | High Altitude Kit, (Not Shown) Formula Deluxe 500 LC. | ||
| 861767200 | High Altitude Kit, (Not Shown) Formula Deluxe 583. |
