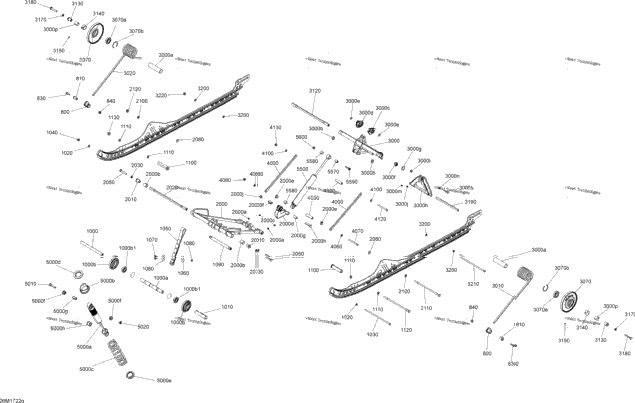

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 503191183 | Spring Support | 2 |
| 2 | 503190754 | Retainer Cushion | 2 |
| 2 | 205082554 | Socket Screw M8 X 25 | 2 |
| 2 | 233281466 | Elastic Flange Nut M8 | 2 |
| 1 | 503193332 | STRAP AXLE 2,5'' Lug Track | 1 |
| 1 | 503194723 | FRONT WHEEL AXLE 3,0'' Lug Track | 1 |
| 2 | 503194724 | Wheel 86 3,0'' Lug Track | 2 |
| 1 | 503190396 | Ball Bearing 3,0'' Lug Track | 1 |
| 1 | 503189265 | Spacer | 1 |
| 2 | 503192494 | Washer | 2 |
| 1 | 503192440 | Bolt M8 X 248mm | 1 |
| 1 | 233281466 | Elastic Flange Nut M8 | 1 |
| 2 | 503194679 | Stopper Strap 2,5'' Lug Track | 2 |
| 1 | 503194745 | STOPPER STRAP 3,0'' Lug Track | 1 |
| 1 | 503193995 | Washer | 1 |
| 1 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 | 1 |
| 1 | 233261466 | Hex. Flange Elastic Nut M6 | 1 |
| 1 | 503193435 | Pivot Axle | 1 |
| 2 | 503191259 | Center Bushing | 2 |
| 4 | 250200143 | Flat Washer | 4 |
| 1 | 503193227 | Bolt M10 X 251MM | 1 |
| 1 | 233201466 | Flange Elastic Nut M10 | 1 |
| 1 | 503194304 | Front Arm Ass'y | 1 |
| 2 | 232061404 | Hexagonal Nut M6 | 2 |
| 2 | 503191556 | Extended Bushing | 2 |
| 2 | 408200700 | Grease Fitting | 2 |
| 1 | 503193464 | Rocker | 1 |
| 2 | 503191555 | Swivel Bushing | 2 |
| 1 | 503193037 | Bushing | 1 |
| 1 | 503189282 | Bushing | 1 |
| 1 | 207005044 | Hex. Screw M10 X 1.5 X 50 | 1 |
| 1 | 233601416 | Elastic Locking Nut M10 X 1.5 | 1 |
| 2 | 503194000 | Bushing | 2 |
| 1 | 503193441 | Upper Shaft | 1 |
| 2 | 503192496 | Washer | 2 |
| 2 | 250000605 | Hex. Screw S.Grip M10 X 55 | 2 |
| 2 | 250200032 | Washer | 2 |
| 2 | 250200143 | Flat Washer | 2 |
| 1 | 503194296 | Rear Arm Ass'y | 1 |
| 2 | 503193218 | Bushing | 2 |
| 1 | 503191565 | LH Cam Adjuster | 1 |
| 1 | 503191566 | RH Cam Adjuster | 1 |
| 2 | 293370013 | E-Circlip | 2 |
| 1 | 503194035 | Radial Joint | 1 |
| 1 | 293370114 | Inner Circlip | 1 |
| 1 | 503193699 | Pivot Arm | 1 |
| 1 | 232061404 | Hexagonal Nut M6 | 1 |
| 1 | 207084056 | Hex. Screw M8 X 1.25 X 40 | 1 |
| 1 | 408200700 | Grease Fitting | 1 |
| 1 | 503192494 | Washer | 1 |
| 1 | 503193003 | Black, LH Spring Square | 1 |
| 1 | 503193002 | Black, RH Spring Square | 1 |
| 2 | 503191150 | Wheel 155 | 2 |
| 2 | 503193548 | Ball Bearing | 2 |
| 2 | 415129780 | Retaining Ring | 2 |
| 2 | 503193439 | Retaining Ring | 2 |
| 2 | 206260844 | Socket Set Screw M6 X 8 | 2 |
| 1 | 503189156 | Pivot Arm Axle | 1 |
| 4 | 503192494 | Washer | 4 |
| 2 | 503192900 | Acceleration Link Rod | 2 |
| 1 | 503193993 | Axle | 1 |
| 1 | 503193372 | Screw M8 X 90 | 1 |
| 1 | 503194749 | Central Shock Package X | 1 |
| 1 | 503194750 | Central Shock Package SP | 1 |
| 1 | 505073625 | Adjustment Cam Package SP | 1 |
| 1 | 503194182 | Black, Spring Package X | 1 |
| 1 | 503191882 | Black, Spring Package SP | 1 |
| 1 | 503191872 | Spring Guide Package SP | 1 |
| 1 | 503194270 | Spring Stopper | 1 |
| 2 | 503189117 | Urethane Bushing | 2 |
| 1 | 503189271 | Bushing | 1 |
| 1 | 233601466 | Elastic Locking Nut M10 | 1 |
| 1 | 503193189 | Rear Shock Package SP | 1 |
| 1 | 503193529 | Rear Shock Package X | 1 |
| 1 | 503192606 | Rear Shock Axle | 1 |
| 2 | 505072663 | Leg Cushion | 2 |
| 1 | 207684044 | Hex. Flange Screw M8 X 40 | 1 |
