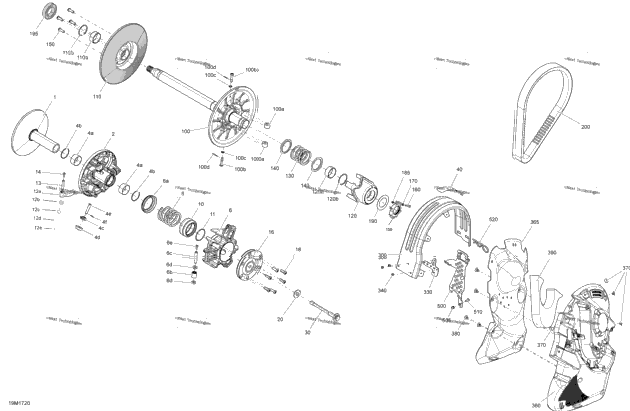

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 417224155 | Fixed Flange Ass'y | 1 |
| 1 | 417224181 | Sliding Flange Ass'y Include 4a to 4f | 1 |
| 2 | 293250389 | Bushing | 2 |
| 2 | 293370117 | Circlip | 2 |
| 3 | 417224153 | Back Torque Roller | 3 |
| 3 | 417224034 | Torque Roller | 3 |
| 3 | 417223992 | Axle - 8mm | 3 |
| 3 | 250400074 | Spring Pin 3/32" X 3/4" | 3 |
| 417224019 | Spyder Ass'y Includes 6 to 6e | ||
| 1 | 417224002 | Spring Guide | 1 |
| 3 | 417223808 | Roller Ass'y | 3 |
| 3 | 417223989 | Axle - 10mm | 3 |
| 6 | 417224009 | Washer-Thrust | 6 |
| 3 | 250000763 | Torx-Truss M/S M5 X 14 S.Grip | 3 |
| 1 | 417224166 | Clutch Spring High Altitude | 1 |
| 1 | 417224015 | Clutch Spring Sea Level | 1 |
| 1 | 417224168 | Clutch Spring High Altitude | 1 |
| 1 | 417224003 | Seat Spring | 1 |
| 1 | 293370116 | Circlip | 1 |
| 3 | 417224225 | Ramp 967 High Altitude | 3 |
| 3 | 417224038 | Ramp 951 Sea Level | 3 |
| 3 | 417224147 | Ramp 966 High Altitude | 3 |
| 1 | 417224113 | Molded Cam | 1 |
| 1 | 417224086 | RH Lever | 1 |
| 1 | 417224114 | LH Lever | 1 |
| 1 | 417224117 | Pivot 38mm High Altitude | 1 |
| 1 | 417224116 | Pivot 33mm Sea Level | 1 |
| 3 | 417223631 | Axle - 8mm | 3 |
| 1 | 417223994 | Cushion-Drive | 1 |
| 6 | 250000757 | Button Head Torx Screw M8 X 25 S.Gr | 6 |
| 1 | 250200144 | Conical Spring Washer M14 | 1 |
| 1 | 417300522 | Pulley Drive Bolt M14 X 144 | 1 |
| 1 | 516007667 | Warning Decal | 1 |
| 1 | 417127400 | Fix Flange Ass'y Includes 100 to 100d | 1 |
| 2 | 417127016 | Pulley Roller | 2 |
| 2 | 417127294 | Pivot Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 250400070 | Spring Pin | 2 |
| 1 | 417127317 | Sliding Flange Ass'y Includes 110 to 110b | 1 |
| 1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127532 | Cam Ass'y Includes 120 to 120b | 1 |
| 1 | 417127118 | Blue Spring High Altitude | 1 |
| 1 | 417127039 | Black, Return Spring Sea Level | 1 |
| 2 | 417127116 | Swivel Abutment | 2 |
| 4 | 250000707 | Hex. Button Head Screw M8 X 25 | 4 |
| 1 | 415129604 | Calibration Ass'y | 1 |
| 1 | 205052544 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 1 | 504152574 | Ball Bearing | 1 |
| 1 | 417300391 | Belt | 1 |
| 1 | 417300479 | Belt Guard | 1 |
| 1 | 417300494 | Bracket | 1 |
| 3 | 390909200 | Avex Rivet | 3 |
| 1 | 417300480 | CVT Air Duct Pulley | 1 |
| 1 | 417300503 | Acoustic Panel | 1 |
| 5 | 293150103 | Pop Rivet 3/16" | 5 |
| 4 | 414644300 | Black, Dart | 4 |
| 1 | 417300509 | Foam | 1 |
| 1 | 250000767 | Torx Truss Screw M6 X 12 | 1 |
| 1 | 417300482 | Belt Guard Bracket | 1 |
| 1 | 293450268 | Insert M5 X 0.8 | 1 |
| 1 | 250000742 | Torx Screw M5 X 14 | 1 |
| 1 | 114045200 | Hair Pin | 1 |
