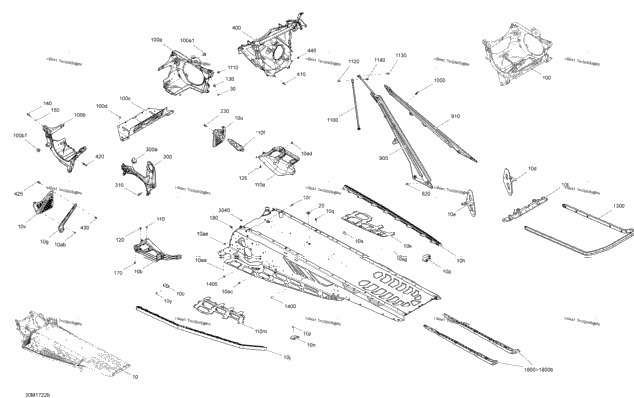

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 415130143 | Black - Tunnel Module 154 Model 154 | 1 |
| 1 | 415130147 | Black - Tunnel Module 165 Model 165 | 1 |
| 1 | 518328684 | RH Footrest Reinforcement | 1 |
| 1 | 518328682 | LH Footrest Reinforcement | 1 |
| 2 | 518326647 | Reinforcement Plate | 2 |
| 1 | 518328468 | RH Suspension Bracket | 1 |
| 1 | 518328467 | LH Suspension Bracket | 1 |
| 1 | 518329048 | RH Reinforcement Footrest | 1 |
| 1 | 518329049 | LH Footrest Reinforcement | 1 |
| 1 | 518328451 | RH Roller | 1 |
| 1 | 518328452 | LH Roller | 1 |
| 518328691 | RH Liner Tunnel | ||
| 518328692 | LH Liner Tunnel | ||
| 1 | 518329088 | LH Reinforcement Plate | 1 |
| 1 | 518329089 | RH Reinforcement Plate | 1 |
| 293450232 | Insert M6 X 1.0 | ||
| 2 | 250300027 | Clinch Stud M6 X 20 | 2 |
| 1 | 210261050 | Hex. Forming Screw M6 X 10 | 1 |
| 1 | 518328990 | Rear Cap | 1 |
| 1 | 518328460 | RH Footrest | 1 |
| 1 | 518328463 | LH Footrest | 1 |
| 30 | 293150203 | Rivet Avibulb 3/16 | 30 |
| 6 | 293150183 | Rivet | 6 |
| 4 | 293150144 | Stavex Rivet | 4 |
| 4 | 293150096 | Hemlock Rivet, 6.5 mm | 4 |
| 12 | 293150119 | Hemlock Rivet, 6.5 mm | 12 |
| 8 | 293150174 | Hemlock Rivet, 6.4 mm | 8 |
| 2 | 293150147 | Hemlock Rivet | 2 |
| 1 | 518328515 | Radiator 154 | 1 |
| 1 | 518328688 | Radiator 165 | 1 |
| 2 | 518329480 | Member Fixation Plate | 2 |
| 2 | 293730052 | Black, Plug | 2 |
| 2 | 506151252 | Washer | 2 |
| 2 | 250000942 | Hex Screw M8 X 30 | 2 |
| 2 | 250200111 | Washer | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 1 | 518328485 | Engine Module Includes 100 to 100d | 1 |
| 1 | 518328487 | RH Member Ass'y Includes 100a to 100a1 | 1 |
| 1 | 505073317 | Leg Cushion | 1 |
| 1 | 518328490 | LH Member Ass'y Includes 100b to 100b1 | 1 |
| 1 | 518328486 | Bottom Plate | 1 |
| 14 | 293150203 | Rivet Avibulb 3/16 | 14 |
| 3 | 293150147 | Hemlock Rivet | 3 |
| 2 | 250000712 | Torx Screw M6 X 20 | 2 |
| 2 | 207662044 | Hex. Flange Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 293450268 | Insert M5 X 0.8 | 2 |
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 1 | 207562044 | Flange Screw M6 X 20, Scotch Grip | 1 |
| 1 | 518328693 | Brace Ass'y Includes 300 to 300a | 1 |
| 1 | 512060295 | Rubber Mount | 1 |
| 4 | 210283040 | Hex. Flange Screw M6 X 30 | 4 |
| 1 | 518328476 | Suspension Module | 1 |
| 2 | 250000822 | Hex. Flange Screw M6 X 16 | 2 |
| XXXX | Not Available As Spare Part - Hex. Flange Screw M6 X 35 | ||
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 6 | 293150119 | Hemlock Rivet, 6.5 mm | 6 |
| 1 | 518329079 | Yellow, LH Member | 1 |
| 1 | 518329080 | Yellow - RH Member | 1 |
| 4 | 250000887 | Pan Head Torx Screw M8 X 12 | 4 |
| 2 | 250300629 | Stud M5 X 20 | 2 |
| 2 | 518328497 | Upper Column Support | 2 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 3 |
| 1 | 207662544 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 518328501 | Rear Bumper Model 154 | 1 |
| 1 | 518328697 | Rear Bumper Model 165 | 1 |
| 2 | 520001612 | Cap | 2 |
| 3 | 293730047 | Black, Dart 8 mm | 3 |
| 2 | 293730060 | Black, Dart 10 mm | 2 |
| 1 | 520001543 | Rear Protector Includes 1800 to 1800b | 1 |
| 3 | 708000759 | Rubber Stopper | 3 |
| 1 | 293830005 | Rubber Bumper | 1 |
| 2 | 293730062 | Dart | 2 |
