Демо
PowerCatalog
Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

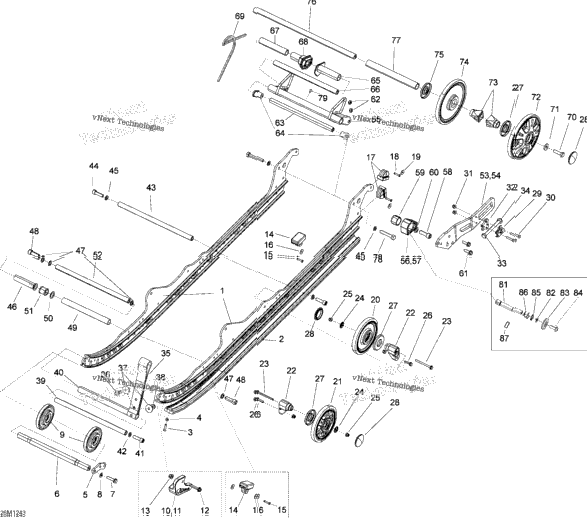

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 503192617 | Runner Machined | 2 |
| 2 | 503192618 | Black Slider, 154" | 2 |
| 4 | 208562531 | Phillips Screw M6 X 25 | 4 |
| 4 | 232561434 | Elastic Stop Nut M6 | 4 |
| 2 | 503192612 | Plate | 2 |
| 1 | 503192643 | Axle | 1 |
| 2 | 207583586 | Hex. Flange Screw M8 X 35, Scotch Grip Sub 250000986 | 2 |
| 2 | 503189157 | Washer | 2 |
| 2 | 503192611 | Black, Wheel Ass'y, 100 mm | 2 |
| 1 | 503192610 | RH Protector | 1 |
| 1 | 503192609 | LH Protector | 1 |
| 2 | 207684044 | Hex. Flange Screw M8 X 40 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 4 | 503190576 | Rubber Stopper | 4 |
| 4 | 293150142 | Pop Rivet 3/16" | 4 |
| 8 | 503191273 | Washer | 8 |
| 4 | 503191291 | Rubber Stopper | 4 |
| 4 | 503191311 | Black, Wheel Ass'y 147 mm | 4 |
| 4 | 503191152 | Black, Wheel Ass'y 147 mm | 4 |
| 8 | 503193082 | Casted Support | 8 |
| 8 | 250000475 | Hex. Flange Screw M6 X 70 | 8 |
| 8 | 503191820 | Wheel Cup M6 | 8 |
| 16 | 233261416 | Elastic Flange Nut M6 X 1.0 | 16 |
| 8 | 250000522 | Hex Flange Screw M6 x 25 | 8 |
| 8 | 503190434 | Labyrinth Seal | 8 |
| 8 | 570063600 | Wheel Cap | 8 |
| 2 | 503192814 | Tensioner | 2 |
| 4 | 250000480 | Hex Cap Screw DIN.931 | 4 |
| 4 | 233261416 | Elastic Flange Nut M6 X 1.0 | 4 |
| 2 | 503190379 | Tensioner Spacer | 2 |
| 230100044 | HEX. SCREW M10 X 100 | ||
| 2 | 233601416 | Elastic Locking Nut M10 X 1.5 | 2 |
| 2 | 503192360 | Stopper Strap | 2 |
| 2 | 207683044 | Hex. Flange Screw M8 X 30 | 2 |
| 4 | 224081301 | Flat Washer | 4 |
| 1 | 503192623 | Axle Strap | 1 |
| 1 | 503192679 | SPACER | 1 |
| 2 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip | 2 |
| 2 | 503189564 | Washer | 2 |
| 1 | 503191418 | Axle Strap | 1 |
| 1 | 503191259 | Center Bushing | 1 |
| 4 | 503189276 | Washer | 4 |
| 2 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip | 2 |
| 1 | 503191421 | Spacer | 1 |
| 1 | 503189273 | Washer | 1 |
| 1 | 503189271 | Bushing | 1 |
| 1 | 503191420 | Shaft | 1 |
| 1 | 503192435 | Rail Pivot RH | 1 |
| 1 | 503192434 | Rail Pivot LH | 1 |
| 1 | 503191414 | Welded Pivot | 1 |
| 1 | 503192426 | LH Block | 1 |
| 1 | 503192427 | RH Block | 1 |
| 2 | 207682534 | Hex. Flange Screw M8 X 25 | 2 |
| 2 | 503189488 | Block Guide | 2 |
| 2 | 503189148 | Washer | 2 |
| 4 | 207682544 | Hex. Flange Screw M8 X 25 | 4 |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
| 1 | 503191390 | Lower Shaft | 1 |
| 2 | 503189324 | Bushing | 2 |
| 1 | 503191668 | LH Spring Cam | 1 |
| 1 | 503191711 | Cam Axle | 1 |
| 1 | 503191713 | Spacer | 1 |
| 1 | 503191190 | RH Spring Cam | 1 |
| 1 | 503192282 | Pivot Spring | 1 |
| 2 | 250000019 | Hex. Screw With Nylon | 2 |
| 2 | 503190439 | Washer | 2 |
| 2 | 503192128 | Deep Black, Wheel Ass'y, 165 mm | 2 |
| 4 | 503190428 | Rear Wheel Spacer | 4 |
| 2 | 503192140 | Black, Wheel Ass'y, 165 mm | 2 |
| 2 | 503190682 | Labyrinth Seal | 2 |
| 1 | 503191408 | Rear Axle | 1 |
| 1 | 503191409 | Spacer | 1 |
| 207005546 | HEX SCREW M10 X 55 | ||
| 1 | 408200700 | Grease Fitting | 1 |
| 1 | 503192437 | Rode | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 503192438 | Handle | 1 |
| 1 | 250000145 | Torx Screw M5 X 14 | 1 |
| 1 | 293370068 | Circlip | 1 |
| 1 | 503192436 | Compression Spring | 1 |
| 1 | 250400005 | Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership | 1 |
