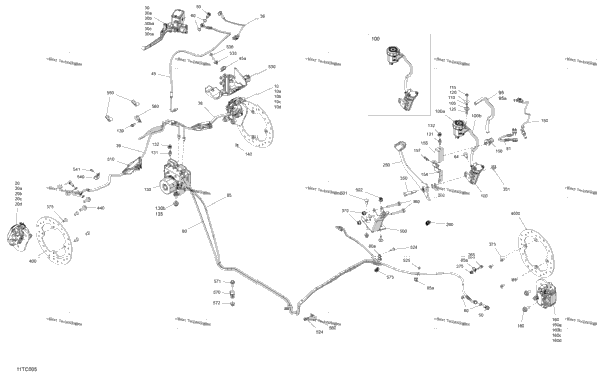

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 705600861 | RH Front Caliper Ass'y Includes 10 to 10d | 1 |
| 1 | 705601014 | LH Organic Brake Pad Kit | 1 |
| 1 | 705601016 | Pin Set | 1 |
| 1 | 705601017 | Bleeding Screw | 1 |
| 1 | 705601018 | Retaining Spring | 1 |
| 1 | 705600862 | LH Front Caliper Ass'y Includes 20 to 20d | 1 |
| 1 | 705601015 | LH Organic Brake Pad Kit | 1 |
| 1 | 705601431 | LH Front Master Cylinder Ass'y Includes 30 to 30ca | 1 |
| 1 | 705601013 | Lever Set | 1 |
| 1 | 507032477 | Clamp And Screw Kit Includes 30b to 30ba | 1 |
| 2 | 250000447 | Hex. Flange Screw M6 X 25 | 2 |
| 1 | 219800096 | Cap Set Includes 30c to 30ca | 1 |
| 2 | 415129356 | Screw M4 X 20 | 2 |
| 1 | 705601669 | Brake Switch | 1 |
| 1 | 705601688 | RH Brake Line | 1 |
| 1 | 705601689 | LH Brake Line | 1 |
| 1 | 705601574 | Brake Hose Includes 45 to 45a | 1 |
| 1 | 293650256 | Clamp | 1 |
| 3 | 705600609 | Banjo Bolt (M10 x 1.25 thread) | 3 |
| 11 | 414920600 | Washer | 11 |
| 1 | 250000163 | Hex. Screw M10 X 14, Scotch Grip | 1 |
| 1 | 705602026 | Master Cylinder Hose Includes 80 to 80a | 1 |
| 1 | 705602024 | Master Cylinder Hose | 1 |
| 1 | 705602025 | RH Rear Hose Includes 85 to 85a | 1 |
| 2 | 293650256 | Clamp | 2 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long Includes 95 to 95a | 1 |
| 415079900 | Tubing 10 mm | ||
| 1 | 705601776 | Rear Master Cylinder Ass'y Includes 100 to 100b | 1 |
| 1 | 705601020 | Oil Tank | 1 |
| 1 | 705601019 | Oil Housing Hose | 1 |
| 1 | 414036300 | Grommet | 1 |
| 1 | 293900112 | Bushing | 1 |
| 1 | 207652044 | Hex.Flange Screw M5 X 20 | 1 |
| 1 | 224060201 | Flat Washer | 1 |
| 1 | 233251434 | Flange Elastic Nut M5 | 1 |
| 1 | 703500984 | VCM Module Includes 130 to 130b | 1 |
| 1 | 710003279 | Shock Damper | 1 |
| 2 | 705600502 | Bleeder Screw | 2 |
| 2 | 705601190 | Bleeder Bolt Cap | 2 |
| 1 | 210261640 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 390406500 | Pop Rivet 3/16" | 1 |
| 1 | 705602015 | Manifold Support | 1 |
| 1 | 705602043 | Manifold | 1 |
| 1 | 705601578 | Pressure Sensor | 1 |
| 2 | 250000690 | Pan Screw Forming, 7500C | 2 |
| 1 | 705600859 | RH Rear Caliper Ass'y Includes 160 to 160d | 1 |
| 2 | 207502046 | Hex. Flange Screw M10 X 20 | 2 |
| 1 | 705602049 | Deep Black, Brake Pedal | 1 |
| 1 | 705600792 | Brake Pedal Spring | 1 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 2 | 293300144 | O-Ring | 2 |
| 1 | 250000513 | Shoulder Screw M10 | 1 |
| 1 | 233201436 | Hex. Flange Elastic Nut M10 | 1 |
| 2 | 207685544 | Hex. Flange Screw M8 X 55 | 2 |
| 2 | 233281414 | Hex. Flange Elastic Nut M8 | 2 |
| 12 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 12 |
| 3 | 705600999 | Disc Brake | 3 |
| 4 | 207502546 | Hex. Flange Screw M10 X 25 | 4 |
| 1 | 705202000 | Brake Pedal Bracket | 1 |
| 3 | 207782044 | Carriage Bolt, M8 X 20 | 3 |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 | 3 |
| 2 | 705602016 | Front Hose Guard | 2 |
| 1 | 250000755 | Torx Screw M6 X 16 | 1 |
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 1 | 705600983 | Front Hose Bracket | 1 |
| 1 | 250100198 | Panel Nut M6 X 1.0 | 1 |
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 1 |
| 2 | 518321570 | Open Clamp | 2 |
| 2 | 390402300 | Pop Rivet 3/16" | 2 |
| 2 | 293650219 | Clamp | 2 |
| 3 | 293650220 | Clamp | 3 |
| 1 | 515175507 | Open Clamp | 1 |
| 1 | 207682044 | Hex. Flange Screw M8 X 20 | 1 |
| 1 | 233281416 | Hex. Elastic Flange Nut M8 | 1 |
| 1 | 705601818 | Hose Clip | 1 |
