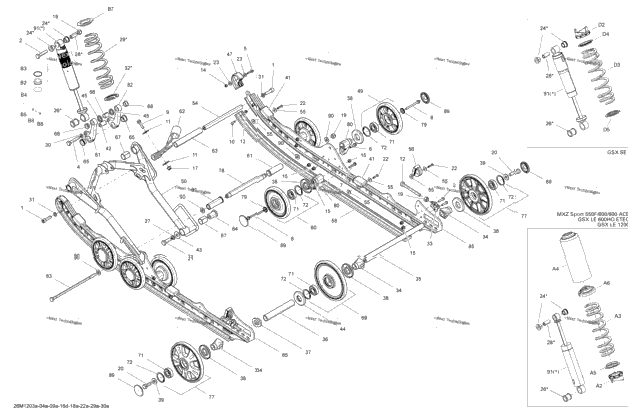

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip | 2 |
| 1 | 207005044 | Hex. Screw M10 X 1.5 X 50 | 1 |
| 4 | 250000479 | HEX. SCREW CAP FULL THREAD M6 X 25 | 4 |
| 1 | 207205544 | Hex. Screw M10 X 55, Scotch Grip | 1 |
| 2 | 207652544 | Hex. Flange Screw M5 X 25 | 2 |
| 4 | 250000522 | Hex Flange Screw M6 x 25 | 4 |
| 2 | 250000522 | Hex Flange Screw M6 x 25 | 2 |
| 6 | 250000475 | Hex. Flange Screw M6 X 70 | 6 |
| 1 | 207683044 | Hex. Flange Screw M8 X 30 | 1 |
| 2 | 208562531 | Phillips Screw M6 X 25 | 2 |
| 2 | 224081301 | Flat Washer | 2 |
| 2 | 230100054 | Hex Screw M10 x 100 | 2 |
| 2 | 232561414 | Elastic Stop Nut M6 | 2 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 | 2 |
| 16 | 250100130 | ELASTIC FLANGE NUT M6 | 16 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 6 | 250100132 | ELASTIC LOCKING NUT M10 | 6 |
| 2 | 250000019 | Hex. Screw With Nylon | 2 |
| 2 | 250000225 | Hex. Screw M12 X 35, Scotch Grip | 2 |
| 1 | 293150142 | Pop Rivet 3/16" | 1 |
| 4 | 391301600 | Washer | 4 |
| 2 | 503189117 | Urethane Bushing | 2 |
| 1 | 503189271 | Bushing | 1 |
| 2 | 503189276 | Washer | 2 |
| 1 | 503189282 | Bushing | 1 |
| 1 | 503191329 | Black, Spring | 1 |
| 1 | 503189564 | Washer | 1 |
| 2 | 503189564 | Washer | 2 |
| 1 | 503192029 | Spring Stopper | 1 |
| 2 | 503192814 | Tensioner | 2 |
| 3 | 503190428 | Rear Wheel Spacer | 3 |
| 1 | 503190429 | Rear Axle | 1 |
| 1 | 503190430 | Spacer | 1 |
| 1 | 503190432 | Washer | 1 |
| 9 | 503190434 | Labyrinth Seal | 9 |
| 2 | 503190439 | Washer | 2 |
| 4 | 503190576 | Rubber Stopper | 4 |
| 1 | 503190604 | Central Shock Axle | 1 |
| 2 | 503190656 | Washer | 2 |
| 1 | 503190682 | Labyrinth Seal | 1 |
| 2 | 503190694 | Plastic Spacer | 2 |
| 2 | 503191137 | Runner Protector | 2 |
| 4 | 503191151 | Wheel 141 mm Ass'y, Black | 4 |
| 1 | 503191579 | Front Arm Ass'y | 1 |
| 1 | 503191260 | Axle Strap | 1 |
| 12 | 503191273 | Washer | 12 |
| 2 | 503191291 | Rubber Stopper | 2 |
| 2 | 503191301 | Black Slider Shoe 120" | 2 |
| 2 | 503191316 | Black, Wheel Ass'y 141 mm | 2 |
| 2 | 503191351 | CENTER BUSHING | 2 |
| 1 | 503192360 | Stopper Strap | 1 |
| 1 | 503191448 | Spacer | 1 |
| 2 | 503191552 | Bushing | 2 |
| 1 | 503191553 | Bushing | 1 |
| 4 | 503191554 | Bushing | 4 |
| 2 | 503191555 | Swivel Bushing | 2 |
| 1 | 503191559 | Black Wheel Ass'y, 180 mm | 1 |
| 1 | 503190396 | Ball Bearing | 1 |
| 1 | 415129371 | Retaining Ring | 1 |
| 2 | 503191742 | Black, Wheel Ass'y, 180 mm | 2 |
| 1 | 503191764 | Center Shaft | 1 |
| 6 | 503191820 | Wheel Cup M6 | 6 |
| 6 | 503193082 | Casted Support | 6 |
| 1 | 503191890 | LH Rocker Arm | 1 |
| 1 | 503191894 | RH Rocker Arm | 1 |
| 1 | 503191896 | BOLT M10 X 251MM | 1 |
| 2 | 503191966 | Lower Axle | 2 |
| 2 | 503192152 | Runner 120'' | 2 |
| 6 | 503192771 | Black, Wheel Cap | 6 |
| 4 | 732900049 | Washer | 4 |
| 1 | 503191590 | Center Shock | 1 |
| 1 | 505070150 | Adjustment Cam | 1 |
| 1 | 503191126 | Protector | 1 |
| 1 | 503191872 | Spring Guide | 1 |
| 1 | 706200881 | Spring Stopper | 1 |
| XXX | Not Available As Spare Parts |
