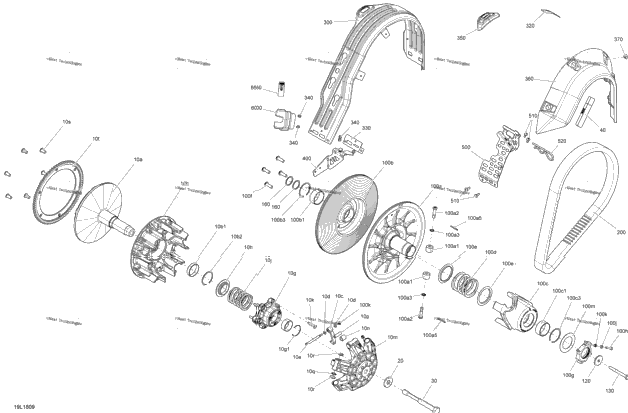

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 417224097 | Fixed Flange Ass'y | 1 |
| 1 | 417224101 | Sliding Flange Ass'y Includes 10b to 10b2 | 1 |
| 1 | 417222758 | Bushing | 1 |
| 1 | 293370037 | Circlip | 1 |
| 6 | 417223557 | Ramp 700 | 6 |
| 12 | 417223255 | Thrust Washer | 12 |
| 6 | 417223694 | Ramp Axle | 6 |
| 6 | 232551414 | Elastic Stop Nut M5 | 6 |
| 1 | 417223907 | Spring Cover Ass'y Includes 10g à 10g1 | 1 |
| 1 | 293370065 | Circlip | 1 |
| 1 | 417223752 | Seat Spring | 1 |
| 1 | 417223748 | Spring Clutch | 1 |
| 6 | 250000580 | Torx Screw M6 X 30 | 6 |
| 1 | 417223865 | Governor Cup Ass'y | 1 |
| 6 | 417223767 | Roller | 6 |
| 6 | 417223257 | Roller Axle | 6 |
| 3 | 293300185 | O-Ring | 3 |
| 12 | 417223919 | Slider Shoe | 12 |
| 6 | 250000706 | Torx Button Head Screw M8 X 16 | 6 |
| 1 | 417223476 | Crown Gear Launch | 1 |
| 1 | 250200144 | Conical Spring Washer M14 | 1 |
| 1 | 417300432 | Pulley Drive Bolt | 1 |
| 1 | 516005503 | Decal English | 1 |
| 1 | 417127392 | Fixe Flange Ass'y Includes 100,001 to 100,004 | 1 |
| 2 | 417127016 | Pulley Roller | 2 |
| 2 | 417127294 | Pivot Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 1 | 417127366 | Slider Flange Ass'y Includes 100,005 to 100,007 | 1 |
| 1 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127367 | Cam Ass'y Includes 100,008 to 100,01 | 1 |
| 1 | 417127061 | Spring | 1 |
| 2 | 417127116 | Swivel Abutment | 2 |
| 1 | 415129604 | Calibration Ass'y | 1 |
| 1 | 205052544 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 1 | 517302322 | Strength Washer Not Shown | 1 |
| 1 | 207287544 | Hex. Cap Screw M8 X 75 | 1 |
| 1 | 417300252 | Spacer Not Shown | 1 |
| 1 | 417300265 | Spacer | 1 |
| 1 | 504112000 | Shim Not Shown | 1 |
| 1 | 414860700 | Drive Belt | 1 |
| 1 | 516003919 | Warning Decal Not Shown | 1 |
| 1 | 417300382 | Belt Guard | 1 |
| 1 | 516006900 | Security Label, Belt Guard | 1 |
| 1 | 417300380 | Reinforcement | 1 |
| 3 | 390909200 | Avex Rivet | 3 |
| 1 | 417300381 | Guide | 1 |
| 1 | 417300356 | Side Protector | 1 |
| 5 | 293150103 | Pop Rivet 3/16" | 5 |
| 1 | 417300363 | Belt Guard Bracket | 1 |
| 417300451 | BELT GUARD BRACKET Not Shown | ||
| 1 | 518325626 | Brake Hose Cover | 1 |
| 2 | 293150163 | Rivet Hucklok Not Shown | 2 |
| 1 | 114045200 | Hair Pin | 1 |
| 1 | 293150096 | Hemlock Rivet, 6.5 mm Not Shown | 1 |
| 1 | 517281905 | Bracket | 1 |
| 2 | 390909100 | Avex Rivet Not Shown | 2 |
| 1 | 516005511 | Belt Decal, English Not Shown | 1 |
