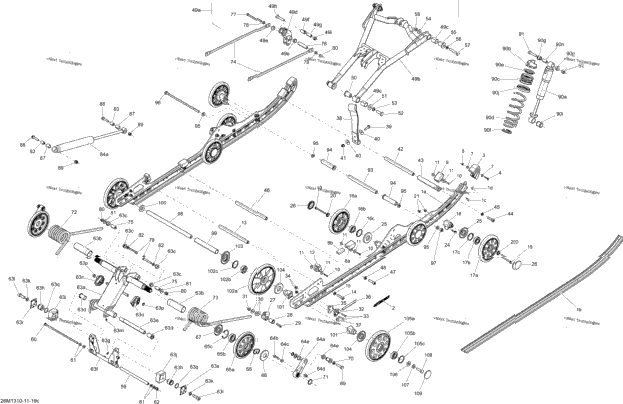

Список запчастей

№	Артикул	Название	Кол-во
1	503193233	RAIL_SUSPENSION 137 B-190	1
1	503191306	Black, Slider Shoe 137''	1
1	208562531	Phillips Screw M6 X 25	1
1	232561414	Elastic Stop Nut M6	1
2	516004755	Runner Decal	2
2	503192530	Slide Protector	2
2	207652544	Hex. Flange Screw M5 X 25	2
2	233251414	Hex. Flange Elastic Nut M5	2
4	250200140	Washer	4
1	503193101	Rubber Stopper	1
1	572084800	Reinforcement Stopper	1
2	503190576	Rubber Stopper	2
6	293150142	Pop Rivet 3/16"	6
12	503191273	Washer	12
2	503192750	Rubber Stopper	2
1	503191260	Axle Strap	1
2	205503554	Socket Head Screw M10 X 35	2
2	503192496	Washer	2
2	503191152	Black, Wheel Ass'y 147 mm Includes 16a to 16c	2
2	503190396	Ball Bearing	2
2	415129371	Retaining Ring	2
4	503193376	Black, Wheel Ass'y 147 mm Includes 17a to 17c	4
4	503190396	Ball Bearing	4
4	415129371	Retaining Ring	4
6	503193082	Casted Support	6
6	207667056	Hex. Flange Screw M6 X 70	6
6	503191820	Wheel Cup M6	6
12	233261466	Hex. Flange Elastic Nut M6	12
6	207662556	Hex. Flange Screw M6 X 25	6
6	503190434	Labyrinth Seal	6
6	503192771	Black, Wheel Cap	6
2	503191183	Spring Support	2
2	503190754	Retainer Cushion	2
2	205082554	Socket Screw M8 X 25	2
4	234082410	Flat Washer 8 mm	4
2	233281466	Elastic Flange Nut M8	2
2	503192814	Tensioner	2
4	207063054	Hex. Cap Screw M6 X 30	4
4	233261466	Hex. Flange Elastic Nut M6	4
2	503193250	Spacer	2
2	230100054	Hex Screw M10 x 100	2
2	233601466	Elastic Locking Nut M10	2
1	503192759	Stopper Strap	1
1	207683044	Hex. Flange Screw M8 X 30	1
2	250200128	Flat Washer 8 mm	2
1	233281466	Elastic Flange Nut M8	1
1	503192678	Spacer	1
1	503193264	Front Arm Ass'y Includes 49a to 49i	1
1	503193265	Front Arm	1
4	503191554	Bushing	4
1	503192531	Rocker	1
2	503191555	Swivel Bushing	2
1	503193037	Bushing	1
1	503189282	Bushing	1
1	207005044	Hex. Screw M10 X 1.5 X 50	1
1	233601416	Elastic Locking Nut M10 X 1.5	1
2	503191966	Lower Axle	2
2	503190656	Washer	2
2	250000537	Hex. Cap Screw M12 X 35	2
2	503192491	Washer	2
2	503191926	Washer	2
2	503190698	Axle	2
2	207006056	Hex. Cap Screw M10 X 60	2
1	503189156	Pivot Arm Axle	1
1	503192440	Bolt M8 X 248mm	1
4	503192494	Washer	4
1	503193365	REAR ARM ASS'Y Includes 63a to 63s	1
2	503192767	Bushing	2
4	503191555	Swivel Bushing	4
2	503191640	Cushion	2
1	503192981	Lower Shaft	1
1	503192823	Pivot Arm Ass'y Includes 63f to 63g	1
1	408200700	Grease Fitting	1
2	503192749	Guide Block	2
1	503192918	LH Cam Block	1
1	503192919	RH Cam Block	1
2	503189276	Washer	2
2	205523544	Socket Head Screw M12 X 35, Scotch Grip	2
1	503191565	LH Cam Adjuster	1
1	503191566	RH Cam Adjuster	1
2	293370013	E-Circlip	2
2	503192921	O-Ring	2
1	516004900	LH Block Sticker Decal	1
1	516004901	RH Block Sticker Decal	1
2	503193072	Extension Arm Ass'y Includes 64a to 64e	2
2	207085044	Hex. Screw M8 X 50	2
2	503189157	Washer	2
2	233281414	Hex. Flange Elastic Nut M8	2
2	503192808	Black Wheel Ass'y 155 mm Includes 65a to 65c	2
2	503191982	Ball Bearing	2
2	415129780	Retaining Ring	2
2	503192592	Labyrinth Ring	2
2	503190434	Labyrinth Seal	2
2	503189146	Axle Spring	2
2	207204056	Cap Screw Hex. M10 X 40	2
2	293370080	Retaining Ring	2
1	503193158	Black, LH Spring Square	1
1	503193159	Black, RH Spring Square	1
2	503193005	Link Rod	2
2	503192555	Axle Bar	2
1	503190643	Axle Bar (Long)	1
1	503193372	Screw M8 X 90	1
2	503192494	Washer	2
2	207085544	Hex. Screw M8 X 55	2
3	233281466	Elastic Flange Nut M8	3
2	234082410	Flat Washer 8 mm	2
2	503192606	Rear Shock Axle	2
1	503193188	Rear Shock Ass'y	1
2	505072663	Leg Cushion	2
2	207684044	Hex. Flange Screw M8 X 40	2
1	503193208	Center Shock Ass'y	1
1	505070150	Adjustment Cam	1
1	503193480	Black Spring (51mm) Short	1
1	503193067	Black, Spring (189mm) Long	1
1	503191872	Spring Guide	1
1	503192608	Spring Stopper	1
2	503189117	Urethane Bushing	2
1	503189271	Bushing	1
1	503191281	Spring Spacer	1
1	233601466	Elastic Locking Nut M10	1
1	503193142	Pivot Axle	1
2	503191259	Center Bushing	2
4	250200138	Washer	4
1	503191896	BOLT M10 X 251MM	1
1	503190429	Rear Axle	1
1	503190430	Spacer	1
1	503190432	Washer	1
3	503190428	Rear Wheel Spacer	3
1	503192778	Deep Black Wheel Ass'y, 180 mm Includes 102a to 102c	1
1	503190396	Ball Bearing	1
1	415129371	Retaining Ring	1
1	503190682	Labyrinth Seal	1
3	503190434	Labyrinth Seal	3
2	503192766	Black, Wheel Ass'y 180 mm Includes 105a to 105c	2
2	503191910	Washer	2
2	234201474	Conical Spring Washer 10 mm	2
2	250000019	Hex. Screw With Nylon	2
2	503192771	Black, Wheel Cap	2
