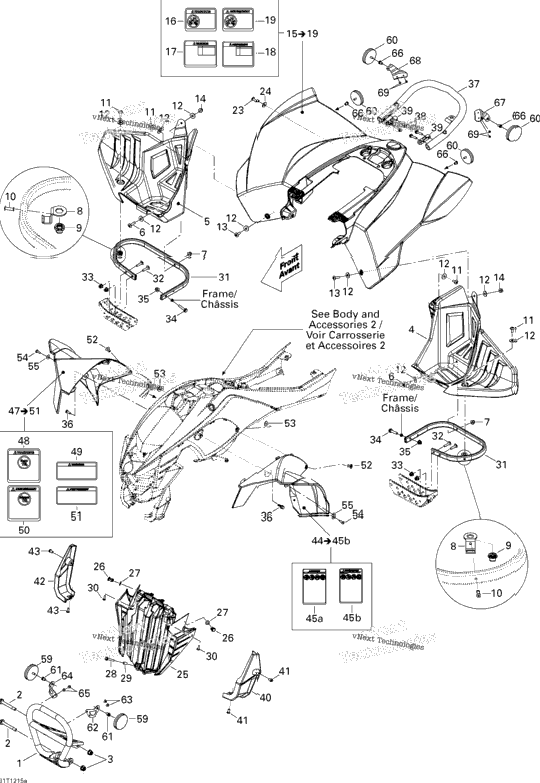

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 705002768 | FRONT BUMPER | ||
| 250000302 | HEX. FLANGED SCREW M8 X 65, SCOTCH GRIP | ||
| 2 | 233181434 | Hex. Flange Nut M8 | 2 |
| 1 | 705001745 | LH FOOT PROTECTOR | 1 |
| 1 | 705001746 | RH FOOT PROTECTOR | 1 |
| 2 | 250000284 | Torx Screw M6 x 25 | 2 |
| 2 | 232561434 | Elastic Stop Nut M6 | 2 |
| 2 | 705002373 | FOOT PROTECTOR BRACKET | 2 |
| 293450274 | Insert | ||
| 2 | 293150023 | RIVET_POP 1/8 X ,625 | 2 |
| 4 | 250000129 | Torx Screw M6 X 16 | 4 |
| 10 | 234062670 | Stainless Steel Flat Washer | 10 |
| 2 | 250000129 | Torx Screw M6 X 16 | 2 |
| 1 | 715001339 | Rear Fender Kit, Yellow Includes 15 to 19 | 1 |
| 1 | 704900005 | WARNING DECAL, PASSENGER | 1 |
| 1 | 704901365 | WARNING DECAL, TIRE PRESSURE | 1 |
| 1 | 704901395 | Warning Decal Tire Pressure, French | 1 |
| 704900006 | Warning Decal, Passenger, French | ||
| 1 | 250000223 | Torx Screw M6 X 16 | 1 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| 1 | 705004009 | Radiator Protector Ass'y | 1 |
| 2 | 293150089 | Tuflok Plastic Rivet | 2 |
| 2 | 506151252 | Washer | 2 |
| 1 | 207662534 | Hex. Flange Screw M6 X 25 | 1 |
| 1 | 707000058 | Spacer | 1 |
| 2 | 243141630 | Hex. Plastic Screw M4.8 X 16 | 2 |
| 2 | 705002091 | FOOT PROTECTOR SUPPORT | 2 |
| 4 | 250000335 | Socket Head Screw M6 X 20 | 4 |
| 4 | 232561434 | Elastic Stop Nut M6 | 4 |
| 2 | 207663034 | Hex. Flange Screw M6 X 30 | 2 |
| 2 | 233261434 | Flange Elastic Nut M6 | 2 |
| 2 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 2 |
| 1 | 705002769 | REAR BUMPER | 1 |
| 4 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip | 4 |
| 2 | 705002913 | CLAMP | 2 |
| 1 | 705002514 | LH Radiator Moulding | 1 |
| 250000339 | SOCKET SCREW M6 X 12 | ||
| 1 | 705002515 | RH RADIATOR MOULDING | 1 |
| 715000713 | LH FRONT FENDER KIT Includes 44 to 45b | ||
| 704901878 | WARNING DECAL, DEATH AND INJURIES | ||
| 0 | 704900002 | Warning Decal, Death And Injuries | 0 |
| 715000567 | RH FRONT FENDER KIT, YELLOW Includes 47 to 51 | ||
| 1 | 704900011 | Warning Decal, Under 16 Years Old | 1 |
| 704901133 | WARNING DECAL, PERFORMANCE | ||
| 1 | 704900012 | Warning Decal, Under 16 Years Old | 1 |
| 1 | 704901135 | Warning Decal, Performance, French | 1 |
| 2 | 293150123 | Pop Rivet 3/16" | 2 |
| 2 | 503191273 | Washer | 2 |
| 2 | 250000128 | Torx Truss Screw M6 X 20 | 2 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 2 | 705002409 | Amber Reflector | 2 |
| 2 | 705002408 | Red Reflector | 2 |
| 2 | 293450268 | Insert M5 X 0.8 | 2 |
| 705002859 | LH Reflector Support | ||
| 2 | 293150144 | Stavex Rivet | 2 |
| 705002860 | RH Reflector Support | ||
| 705002911 | LH SUPPORT | ||
| 705002912 | RH SUPPORT | ||
| 4 | 293150144 | Stavex Rivet | 4 |
