Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|

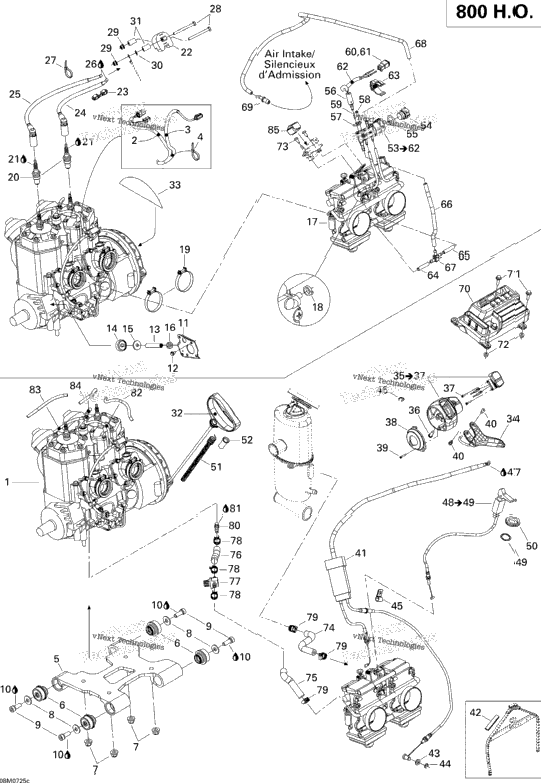

| 400702633 | Engine 793 H.O. | ||
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 512060051 | ENGINE SUPPORT | 1 |
| 4 | 512059691 | Rubber Mount | 4 |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 | 4 |
| 4 | 506151251 | Washer | 4 |
| 4 | 235202544 | TORX LOW HEAD SOCKET SCREW M10 X 25 | 4 |
| 413703400 | Sealant LOCTITE 222MS | ||
| 1 | 512059840 | PLATE | 1 |
| 1 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 1 |
| 1 | 250500007 | STOPPER SCREW | 1 |
| 1 | 512059610 | STOPPER | 1 |
| 512059057 | WASHER | ||
| 1 | 232170411 | Hex. Jam Nut M14 | 1 |
| 403138778 | Carburetor Kit TM40-B322 | ||
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 2 | 512059835 | Gemi Clamp | 2 |
| 2 | 415128524 | Spark Plug NGK BR9ECS | 2 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 512059968 | Ignition Coil | 1 |
| 1 | 410914600 | Plastic Clip, Spark Plug Wire | 1 |
| 512059695 | CABLE ASSY, 300 MM | ||
| 1 | 512059696 | Cable Ass’y, 375 mm | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 2 | 207066044 | Hex. Screw M6 X 60 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 1 | 394001900 | EXTERNAL TOOTH LOCK WASHER | 1 |
| 2 | 517203200 | Spacer | 2 |
| 1 | 572084400 | Starter Grip | 1 |
| 512059893 | REFLECTIVE SHEET | ||
| 1 | 512060302 | Throttle Handle Ass'y | 1 |
| 1 | 512060121 | Housing Throttle Ass'y Includes 35 to 37 | 1 |
| 250000036 | SOCKET HEAD SCREW M6 X 16 | ||
| 250000098 | PHILLIPS SCREW M2.9 X 16 | ||
| 1 | 512059698 | COVER | 1 |
| 250000265 | TORX SCREW M2.9 X 12 | ||
| 2 | 732601143 | Flange Screw | 2 |
| 1 | 512060085 | Throttle Cable | 1 |
| 1 | 512059750 | PROTECTOR | 1 |
| 1 | 234081100 | Flat Washer 8 mm, Nylon | 1 |
| 1 | 414753500 | Circlip | 1 |
| 293750042 | TIE CLAMP | ||
| 1 | 414274500 | Circlip | 1 |
| 512059266 | CHOKE CABLE Includes 48 to 49 | ||
| 394103300 | Lock Washer, Interior Teeth | ||
| 1 | 512059094 | PLASTIC NUT | 1 |
| 512059535 | ROPE GUIDE | ||
| 1 | 512059536 | TUBE | 1 |
| 1 | 512060002 | PRESSURE MANIFOLD ASS'Y Includes 53 to 62 | 1 |
| 1 | 270600009 | CAP | 1 |
| 1 | 293300042 | O-RING | 1 |
| 1 | 515175701 | PRESSURE MANIFOLD HARNESS | 1 |
| 1 | 415061600 | SOLENOID LOCK | 1 |
| 1 | 241140060 | Screw K40 X 10 | 1 |
| 404161825 | STARTER JET | ||
| 1 | 515175670 | Female Terminal Housing, 2 Circuits | 1 |
| 1 | 515175675 | Female Lock, 2 Circuits | 1 |
| 1 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long | 1 |
| 1 | 512058919 | SUPPORT | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 414729300 | T-FITTING | 1 |
| 1 | 293710035 | Straight Fitting | 1 |
| 1 | 512060310 | CALIBRATED MODULE | 1 |
| 2 | 207652044 | Hex.Flange Screw M5 X 20 | 2 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 | 2 |
| 2 | 208651241 | PHILLIPS SCREW M5 X 12 | 2 |
| 1 | 509000171 | FORMED HOSE | 1 |
| 1 | 219704420 | Was 509000407 Hose 8 mm | 1 |
| 1 | 512059324 | Valve 5/16” | 1 |
| 3 | 414655700 | Spring Clamp | 3 |
| 3 | 293650170 | Tridon Gear Clamp | 3 |
| 1 | 512060196 | MALE CONNECTOR 1/8-27 NPT | 1 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 1 | 219704399 | Was 409901700 Tubing (9 mm) | 1 |
| 512059809 | Heating Element Bracket |
