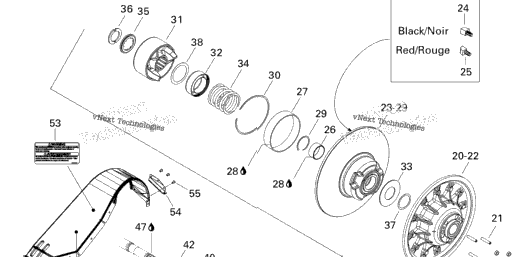

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Drive Pulley Ass'y Manual Start, Includes 1 to 12 | ||
| XXXX | Not Available As Spare Part - Drive Pulley Ass'y Electric Start, Includes 1 to 15 | ||
| 1 | 415128601 | INNER FLANGE | 1 |
| 1 | 417126692 | SLIDING FLANGE | 1 |
| 415128602 | SPRING COVER | ||
| 415128968 | Unit | ||
| 417118100 | CENTRIFUGE BLOCK | ||
| 15 | 417114400 | ADJUSTMENT WEIGH | 15 |
| 3 | 417114500 | CAPSULE | 3 |
| 420245370 | WASHER | ||
| 3 | 415128606 | SOCKET HEAD SCREW M6 X 35 | 3 |
| 415129221 | Spring Violet-Pink-Yellow | ||
| 1 | 417126694 | SPRING SEAT | 1 |
| 415128609 | Cap | ||
| 1 | 415128610 | WASHER | 1 |
| 1 | 417118300 | NUT | 1 |
| 417300305 | Ring Gear Electric Start | ||
| 6 | 236281684 | Hex. Screw M8 X 16 Electric Start | 6 |
| 1 | 293800005 | Loctite 271, 10 ml Electric Start | 1 |
| 516001726 | Security Label | ||
| 1 | 392002800 | WASHER-LOCK HELICAL SPRING | 1 |
| 1 | 417113800 | BOLT | 1 |
| XXXX | Not Available As Spare Part - Driven Pulley Ass'y Includes 19 to 38 | ||
| 417127024 | FIXED FLANGED ASS'Y | ||
| 3 | 206262599 | Socket Set Screw | 3 |
| 3 | 233061414 | Hex. Flange Nut M6 | 3 |
| 417127026 | Sliding Flange Ass'y | ||
| 417126373 | REAR CAM SLIDER SHOE, RED | ||
| 3 | 417126374 | Front Cam Slider Shoe, Black | 3 |
| 417126901 | BUSHING | ||
| 417126902 | BUSHING | ||
| 1 | 413408300 | Loctite, Black Max, 3 ml | 1 |
| 371911200 | CIRCLIP | ||
| 1 | 417126878 | CIRCLIP | 1 |
| 1 | 417126574 | Cam Ass'y | 1 |
| 1 | 417126381 | GUARD | 1 |
| 1 | 504099600 | STOPPER WASHER | 1 |
| 1 | 417127061 | Spring | 1 |
| 417126733 | SPACER | ||
| 417126734 | HALF KEY | ||
| 1 | 504112300 | SHIM | 1 |
| 1 | 417126322 | SWIVEL ABUTMENT | 1 |
| 3 | 417300252 | Spacer | 3 |
| 1 | 417300265 | Spacer | 1 |
| 1 | 417300252 | Spacer | 1 |
| 3 | 504112000 | Shim | 3 |
| 417300238 | PROTECTOR | ||
| 1 | 517302322 | Strength Washer | 1 |
| 1 | 207087544 | HEX. SCREW M8 X 75 | 1 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 417300326 | BELT_DRIVE | 1 |
| 1 | 516002674 | EMERGENCY STARTING LABEL | 1 |
| 1 | 417300276 | BELT GUARD | 1 |
| 1 | 417300301 | SIDE PROTECTOR ASS'Y | 1 |
| 417300246 | Foam | ||
| 1 | 516002670 | WARNING DECAL, SECURITY BELT GUARD | 1 |
| 417300216 | BELT GUARD BRACKET | ||
| 3 | 390909200 | Avex Rivet | 3 |
| 4 | 293150103 | Pop Rivet 3/16" | 4 |
