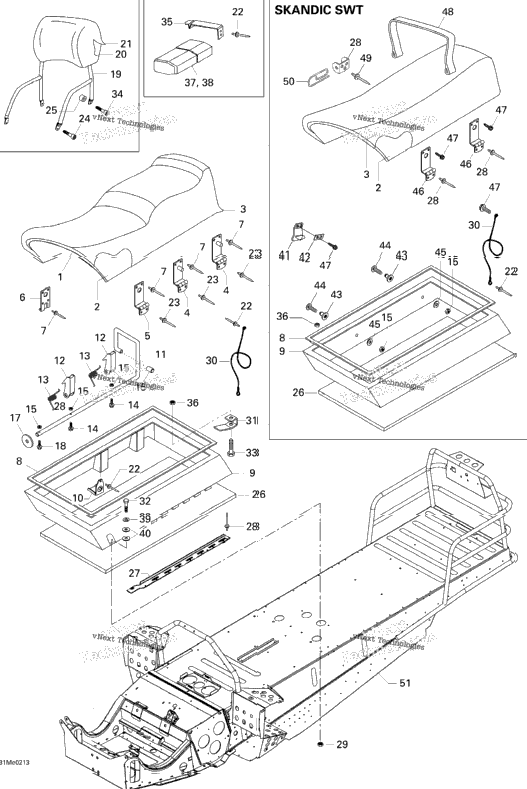

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| M519394 | Sub Seat Skandic 500F. Skandic 600. | ||
| M5244982 | Foam Seat Skandic 500F. Skandic 600. | ||
| M5245239 | Foam Seat Skandic 500F (SWT). | ||
| M5147596 | Cover Seat Skandic 500F. Skandic 600. | ||
| M5147598 | Cover Seat Skandic 500F (SWT). | ||
| M549874 | HINGE Skandic 500F. Skandic 600. | ||
| 1 | M5440581 | HINGE Skandic 500F. Skandic 600. | 1 |
| M549732 | Lock Plate Skandic 500F. Skandic 600. | ||
| M36071 | Rivet Skandic 500F. Skandic 600. | ||
| 1 | M5440059 | SEALING STRIP PROFIL Skandic 500F. Skandic 600. | 1 |
| M390002 | Cushion Skandic 500F (SWT). | ||
| M5142066 | Welded Seat Base Weld Skandic 500F. Skandic 600. | ||
| M5246336 | Welded Seat Base Weld Skandic 500F (SWT). | ||
| M5443661 | Support Skandic 500F. Skandic 600. | ||
| M5344987 | Pivot Pin Skandic 500F. Skandic 600. | ||
| M5443664 | Lock Tongue Skandic 500F. Skandic 600. | ||
| 2 | M5444439 | SPRING Skandic 500F. Skandic 600. | 2 |
| M40146 | Screw Skandic 500F. Skandic 600. | ||
| 3 | 232541414 | Elastic Stop Nut M4 | 3 |
| M28019 | Cap Skandic 500F. Skandic 600. | ||
| 1 | 234081410 | Flat Washer 8 mm Skandic 500F. Skandic 600. | 1 |
| M40144 | Screw M4 X 16 Skandic 500F. Skandic 600. | ||
| M539877 | Backrest Skandic 500F. Skandic 600. | ||
| M539399 | Backrest Foam Skandic 500F. Skandic 600. | ||
| M5340917 | COVER-BACKREST Skandic 500F. Skandic 600. | ||
| 6 | M36005 | Rivet *Rivet | 6 |
| M36489 | Rivet Skandic 500F. Skandic 600. | ||
| 2 | 205082044 | Socket Head Screw M8 X 20 Skandic 500F. Skandic 600. | 2 |
| M5440665 | Spacer Skandic 500F. Skandic 600. | ||
| M5344621 | Foam Skandic 500F. | ||
| M5346331 | Foam Skandic 500F (SWT). | ||
| M5346079 | Foam Skandic 600. | ||
| M5144029 | RH Support Skandic 500F. Skandic 600. | ||
| M5144028 | LH Support Skandic 500F. Skandic 600. | ||
| 20 | M36083 | Rivet *Rivet | 20 |
| 2 | M33066 | NUT M6 Skandic 500F. Skandic 600. | 2 |
| 1 | M546777 | Cable Retenue *Cable-Retainer Skandic 500F. Skandic 500F (SWT). | 1 |
| M5447746 | Retainer Cable Skandic 600. | ||
| M5444464 | Keeper Cable Skandic 500F. | ||
| M40052 | Socket Head Screw M6 X 20 Skandic 500F. Skandic 600. | ||
| M40149 | Screw M6 X 30 Skandic 500F. | ||
| 2 | M40135 | Socket Head Screw M8 X 30 Skandic 500F. Skandic 600. | 2 |
| 1 | M5344443 | SPRING-HOLDER Skandic 500F. Skandic 600. | 1 |
| M539455 | Spring Skandic 500F (SWT). | ||
| 1 | M33200 | Nut M6 | 1 |
| 572036310 | BOX COVER Skandic 500F. Skandic 600. | ||
| 529035500 | TOOL KIT Skandic 500F. Skandic 600. | ||
| 2 | 234161471 | Lock Washer M6, Black Skandic 500F. Skandic 600. | 2 |
| 4 | M20009 | Washer 6.4 Din 9021 Skandic 500F. Skandic 600. | 4 |
| M5346383 | LATCH Skandic 500F (SWT). | ||
| M5446848 | PLATE Skandic 500F (SWT). | ||
| 2 | M542307 | Rouleau *Roller-Counter Skandic 500F (SWT). | 2 |
| 2 | M40168 | Vis *Screw Skandic 500F (SWT). | 2 |
| 2 | M20037 | Washer Skandic 500F (SWT). | 2 |
| M5446374 | HINGE Skandic 500F (SWT). | ||
| M40888 | Screw Skandic 500F (SWT). | ||
| M538856 | Seat Belt Skandic 500F (SWT). | ||
| M548824 | Seat Belt Latch Skandic 500F (SWT). | ||
| 2 | M548834 | Goup.Surete *Pin-Hair Skandic 500F (SWT). | 2 |
| M5146038 | Frame Skandic 500F (SWT). | ||
| M5147741 | Frame Skandic 500F (WT). | ||
| M5145027 | Frame Skandic 600F (WTLC). |
