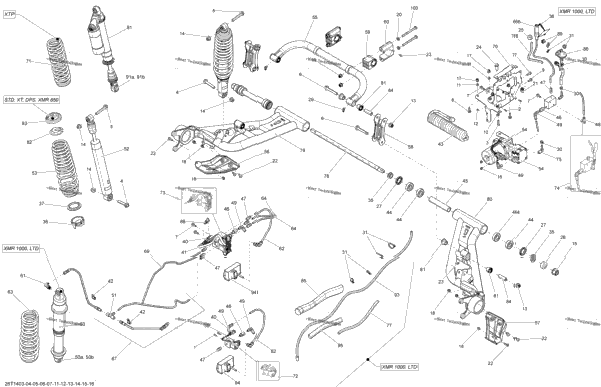

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXX | Not Available As Spare Parts | ||
| 207141244 | HEX. SCREW M4 X 12 | ||
| 1 | 207162544 | Hex. Screw M6 X 25 | 1 |
| 2 | 207605546 | Hex. Flange Screw M10 X 55 | 2 |
| 2 | 207606046 | Hex. Flange Screw M10 X 6 | 2 |
| 4 | 207606536 | Hex. Flange Screw M10 X 65 | 4 |
| 7 | 207661644 | Hex. Flange Screw M6 X 16 | 7 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 | 3 |
| 1 | 210261680 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 224061121 | Flat Washer | 1 |
| 4 | 232061414 | Hex. Nut M6 | 4 |
| 2 | 232541414 | Elastic Stop Nut M4 | 2 |
| 5 | 233201414 | Hex. Flange Elastic Nut M10 | 5 |
| 4 | 233201436 | Hex. Flange Elastic Nut M10 | 4 |
| 2 | 233211466 | Hex. Flange Elastic Nut M16 | 2 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 | 2 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 7 |
| 6 | 233261494 | Hex. Elastic Flange Nut M6 | 6 |
| 4 | 233281434 | Hex. Flange Elastic Nut M8 | 4 |
| 4 | 234081430 | Flat Washer M8 | 4 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 6 | 250000128 | Torx Truss Screw M6 X 20 | 6 |
| 4 | 250000315 | Grease Fitting | 4 |
| 1 | 250000562 | Hex Flange Screw M10 X 25 | 1 |
| 1 | 250100124 | Hex. Nut With Nylon 1/2" X 20 | 1 |
| 2 | 250200112 | Flat Washer M17 | 2 |
| 4 | 293200132 | Seal | 4 |
| 2 | 293550056 | Grease Fitting 90° | 2 |
| 3 | 293650207 | Clamp Oetiker | 3 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 4 | 706001282 | Spacer | 4 |
| 1 | 414811400 | O-Ring | 1 |
| 1 | 710001927 | Housing | 1 |
| 1 | 219704427 | Was 515175830 Tubing 1/2" | 1 |
| 2 | 705600459 | Clamp | 2 |
| 1 | 706000808 | Auxiliary Hose | 1 |
| 8 | 706000826 | Ball Bearing | 8 |
| 2 | 706000828 | Spacer | 2 |
| 2 | 706000860 | Check Valve | 2 |
| 6 | 706000869 | Connector | 6 |
| 1 | 706000872 | Elbow 90° | 1 |
| 3 | 706000928 | Elbow 90° | 3 |
| 706001202 | REAR SHOCK ASS'Y Includes 50a to 50b | ||
| 4 | 715500360 | O-Ring Bushing | 4 |
| 4 | 715500361 | Interior Bushing | 4 |
| 1 | 706000946 | T Fitting | 1 |
| 1 | 706000964 | Compressor Ass'y | 1 |
| 1 | 706000988 | Swaybar | 1 |
| 1 | 706001009 | LH PROTECTOR | 1 |
| 1 | 706001010 | RH PROTECTOR | 1 |
| 2 | 706001020 | Sway Bar Linkage | 2 |
| 2 | 706001098 | Cushion | 2 |
| 2 | 706001099 | Bushing Holder | 2 |
| 1 | 706001200 | Elbow 90° | 1 |
| 1 | 706001216 | Hose Ass'y | 1 |
| 1 | 706001056 | SPRING_COMPRESSION B-190 PAINTED Model-Black/Yellow | 1 |
| 1 | 706000836 | Black Rear Spring Model-Camo | 1 |
| 2 | 219704415 | Hose 4.32MM 3000MM Long | 2 |
| 1 | 706001339 | INFLATER ASS'Y | 1 |
| 1 | 706001341 | REAR SHOCK DISTRIBUTOR ASS'Y | 1 |
| 1 | 219704415 | Hose 4.32MM 3000MM Long | 1 |
| 706001351 | Compressor Bracket | ||
| 1 | 706001368 | PRESSURE COLLECTOR ASS'Y | 1 |
| 1 | 706001388 | HOSE ASS'Y | 1 |
| 1 | 706001405 | Elbow 90° | 1 |
| 1 | 504153074 | Protector Tube | 1 |
| 1 | 706001664 | Axial Pivot M16 | 1 |
| 1 | 706001543 | Black LH Swing Arm | 1 |
| 1 | 706001544 | Black RH Swing Arm | 1 |
| 4 | 703500875 | Suspension Arm Bushing Kit Includes 84 | 4 |
| 4 | 703500875 | Suspension Arm Bushing Kit Includes 81 | 4 |
| 1 | 707001349 | Protector Tube | 1 |
| 1 | 710001825 | Air Suspension Sensor | 1 |
| 1 | 710002006 | Holder | 1 |
| 1 | 710002899 | Clip Tie-Rap | 1 |
| 1 | 219704410 | Was 415080200 Hose, Polyurethane | 1 |
| 1 | 710003586 | Calibrated Module | 1 |
| 1 | 219704408 | Tubing 16 MM 1000MM Long | 1 |
| 4 | 207088587 | Hex,. Screw M8 X 85 | 4 |
