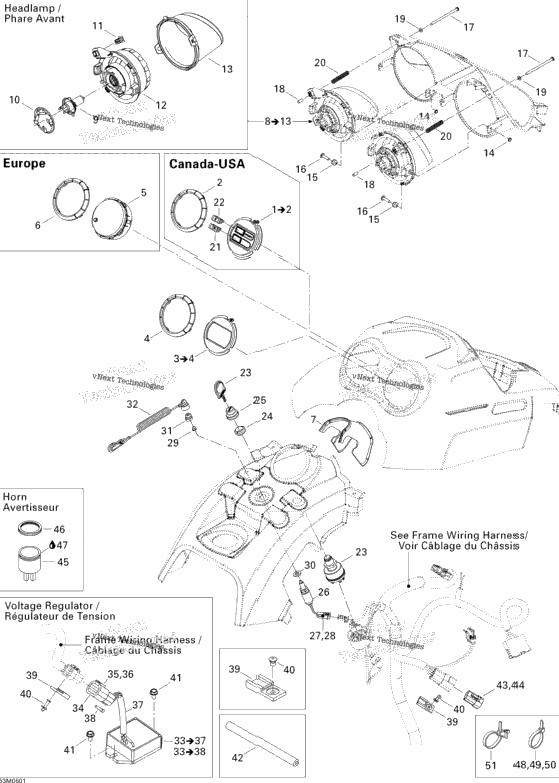

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 515176372 | Gauge Bottom Ring Ass'y Canada-USA, Includes 1 to 2 | ||
| 1 | 515176242 | Gauge Ring | 1 |
| 1 | 515176373 | GAUGE BOTTOM RING ASS'Y Includes 3 to 4 | 1 |
| 515176301 | SPEEDOMETER Europe | ||
| 1 | 515176242 | Gauge Ring Europe | 1 |
| 1 | 515176321 | PROTECTOR | 1 |
| 515176168 | RH HEADLAMP ASS'Y Includes 8 to 13 | ||
| 1 | 515176169 | LH HEADLAMP ASS'Y Includes 8 to 13 | 1 |
| 1 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) | 1 |
| 515175910 | BULB HOLDER | ||
| 515176339 | Plastic Insert | ||
| XXXX | Not Available As Spare Part - RH Reflector | ||
| XXXX | Not Available As Spare Part - LH Reflector | ||
| XXXX | Not Available As Spare Part - RH Lens | ||
| XXXX | Not Available As Spare Part - LH Lens | ||
| 4 | 389804300 | Push Nut | 4 |
| 4 | 515176289 | HEADLAMP BUSHING | 4 |
| 390906200 | FLAT HEAD STEEL RIVET | ||
| 250000244 | PHILLIPS SCREW #8 X 3 | ||
| 2 | 515176370 | Cap | 2 |
| 2 | 234041600 | Flat Washer 4 mm, Stainless | 2 |
| 2 | 515176353 | SPRING | 2 |
| 1 | 515175726 | PILOT LAMP, HEADLAMP Canada-USA | 1 |
| 1 | 410113400 | PILOT LAMP, ELECTRIC REVERSE Canada-USA | 1 |
| 410113602 | IGNITION SWITCH | ||
| 1 | 410112100 | FACE NUT | 1 |
| 1 | 570013700 | Switch Boot | 1 |
| 1 | 515175653 | Brake Switch | 1 |
| 1 | 515176297 | Female Housing | 1 |
| 2 | 515175232 | Male Terminal | 2 |
| 1 | 570151100 | Plunger Cap | 1 |
| 1 | 503183500 | WASHER | 1 |
| 1 | 515145900 | Switch Nut | 1 |
| 1 | 515151500 | Cap Ass’Y | 1 |
| 1 | 515176188 | Voltage Regulator Manual Start, Includes 33 to 38 | 1 |
| 1 | 515176189 | Voltage Regulator Electric Start, Includes 33 to 37 | 1 |
| 1 | 278001477 | FEMALE HOUSING, 4 CIRCUITS | 1 |
| 3 | 515175568 | Male Terminal Manual Start | 3 |
| 4 | 515175568 | Male Terminal Electric Start | 4 |
| 1 | 278001478 | MALE WEDGE, 4 CIRCUITS | 1 |
| 710000497 | PROTECTOR TUBE, 9 MM | ||
| 1 | 293000052 | Sealing Cap Manual Start | 1 |
| 3 | 515175917 | Clip | 3 |
| 3 | 293150037 | Avdel Rivet 3/16" | 3 |
| 2 | 210261280 | Hex. Flange Screw M6 X 12 | 2 |
| 1 | 509000263 | TRIM | 1 |
| 1 | 278001473 | Female Terminal Housing, 4 Circuits | 1 |
| 1 | 278001474 | Female Lock, 4 Circuits | 1 |
| 1 | 515176035 | HORN | 1 |
| 1 | 414805101 | PLASTIC NUT | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 1 | 293750002 | Tie Wrap 142 mm | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 293750009 | Tie-Rap 173 mm | 1 |
