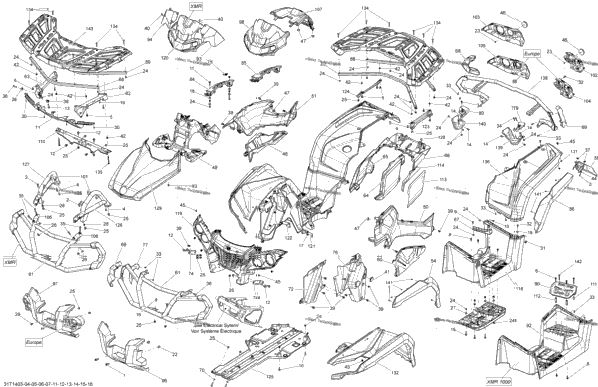

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 207782044 | Carriage Bolt, M8 X 20 | 2 |
| 2 | 205003044 | Socket Screw M10 x 30 | 2 |
| 2 | 207183054 | Hex. Cap Screw M8 X 30 | 2 |
| 4 | 207342544 | Hex. Cap Screw M4 X 25 | 4 |
| 2 | 207551634 | Hex. Flange Screw, Scotch Grip | 2 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 4 |
| 8 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip | 8 |
| 10 | 207661684 | Hex. Flange Screw M6 X 16 | 10 |
| 4 | 207662034 | Hex. Flange Screw M6 X 20 | 4 |
| 8 | 207662084 | Hex. Flange Screw M6 X 20 | 8 |
| 2 | 207663034 | Hex. Flange Screw M6 X 30 | 2 |
| 8 | 207682044 | Hex. Flange Screw M8 X 20 | 8 |
| XXX | Not Available As Spare Parts | ||
| 4 | 207762044 | Carriage Bolt M6 X 20 | 4 |
| 8 | 207763584 | Carriage Bolt M6 X 35 | 8 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 8 | 224061201 | Flat Washer | 8 |
| 2 | 233201434 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 40 | 233261434 | Flange Elastic Nut M6 | 40 |
| 22 | 233281434 | Hex. Flange Elastic Nut M8 | 22 |
| 6 | 233281464 | Elastic Flange Nut M8 | 6 |
| 8 | 234062410 | Flat Washer 6 mm | 8 |
| 2 | 234081670 | Stainless Steel Flat Washer 8 mm | 2 |
| 4 | 250000048 | Panel Nut M6 X 1.0 | 4 |
| 9 | 250000128 | Torx Truss Screw M6 X 20 | 9 |
| 16 | 250000146 | Truss Head Torx Screw K50 X 16 | 16 |
| 2 | 250000371 | Torx Screw M6 X 30 Stainless | 2 |
| 4 | 250000535 | Torx Screw M8 X 55 | 4 |
| 2 | 250000544 | Torx Screw M8 X 30 | 2 |
| 4 | 250100143 | Extruded Panel Nut M4 X 0.7 | 4 |
| 18 | 293150089 | Tuflok Plastic Rivet | 18 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 2 | 293250242 | Rubber Cover | 2 |
| 293450274 | Insert | ||
| 2 | 293830005 | Rubber Bumper | 2 |
| 8 | 517124300 | Washer | 8 |
| 8 | 517302785 | Edge Clip | 8 |
| 2 | 705002408 | Red Reflector Model-Nord America/International | 2 |
| 4 | 705003264 | Grommet | 4 |
| 1 | 705003444 | Engine Cover | 1 |
| 1 | 715001552 | Dash Support Kit | 1 |
| 1 | 705003446 | Yellow, LH Lateral Panel Model-Black/Yellow | 1 |
| 1 | 705005238 | PANEL_BODY LH B-005 Model-Camo | 1 |
| 1 | 705003447 | Yellow RH Pannel Model-Black/Yellow | 1 |
| 1 | 705005242 | Camo RH Pannel Model-Camo | 1 |
| 1 | 705006988 | LH Mud Guard | 1 |
| 1 | 705006989 | RH Mud Guard | 1 |
| 1 | 705003918 | LH Rear Mudguard | 1 |
| 1 | 705003920 | RH Rear Mudguard | 1 |
| 1 | 705003921 | LH Rear Mudguard, Part 2 | 1 |
| 1 | 705003922 | RH Rear Mudguard, Part 2 | 1 |
| 1 | 705004147 | LH Extension Pannel | 1 |
| 1 | 705006876 | Black Front Bumper | 1 |
| 1 | 715001897 | LH Extension Panel | 1 |
| 1 | 705004348 | RH Extension Panel | 1 |
| 1 | 715001854 | Rear Center Panel Kit | 1 |
| 1 | 705004352 | LH Footrest | 1 |
| 1 | 705005395 | RH Footrest | 1 |
| 2 | 705004409 | Cap (Front LH) (Rear RH) | 2 |
| 2 | 705004410 | Cap (Front RH) (Rear LH) | 2 |
| 2 | 705004497 | Ring | 2 |
| 1 | 705004558 | RH Inner Fender | 1 |
| 1 | 705004557 | LH Inner Fender | 1 |
| 2 | 705004565 | Lower Fender Support | 2 |
| 1 | 705004587 | RH Inner Fender | 1 |
| 1 | 705004588 | LH Inner Fender | 1 |
| 4 | 705004987 | Bracket Cover | 4 |
| 1 | 705005003 | Shiftgate Trim | 1 |
| 1 | 705005094 | LH Bracket | 1 |
| 1 | 705005095 | RH Bracket | 1 |
| 1 | 705005254 | LH. Footboard | 1 |
| 1 | 705005253 | RH. Footboard | 1 |
| 1 | 705005257 | Indicator Model-Nord America/International | 1 |
| 1 | 705005469 | Tube | 1 |
| 1 | 705005470 | Tube | 1 |
| 2 | 705005890 | Footrest | 2 |
| 1 | 705005978 | LH Footboard | 1 |
| 1 | 705005977 | RH Footboard | 1 |
| 1 | 705006134 | LH Air Deflector | 1 |
| 1 | 705006135 | RH Air Deflector | 1 |
| 1 | 705006299 | Front Guard Plate Model-Nord America/International | 1 |
| 1 | 705006373 | Gage Support | 1 |
| 705006402 | Anchor Bracket | ||
| 1 | 705006643 | LH Rear Facia Model-Nord America/International | 1 |
| 1 | 705006650 | RH Rear Facia Model-Nord America/International | 1 |
| 2 | 705006691 | Black Upper Bracket | 2 |
| 1 | 715001765 | Dash Kit | 1 |
| 1 | 705006220 | Front Bumper Center Support | 1 |
| 4 | 705006818 | Coupling Nut, Short | 4 |
| 4 | 705006819 | Coupling Nut, Large | 4 |
| 1 | 705006870 | Heat Shield | 1 |
| 1 | 705006871 | Heat Shield | 1 |
| 1 | 705007041 | Front Facia | 1 |
| 1 | 705007140 | LH Inner Fender Bracket | 1 |
| 1 | 705007141 | RH Inner Fender Bracket | 1 |
| 1 | 705007277 | LH Support | 1 |
| 1 | 705007278 | RH Support | 1 |
| 1 | 705007553 | Central Skid Plate | 1 |
| 1 | 705007878 | LH Radiator Support | 1 |
| 1 | 705007879 | RH Radiator Support | 1 |
| 3 | 708000759 | Rubber Stopper | 3 |
| 1 | 715001541 | Yellow Hood Kit | 1 |
| 1 | 708301154 | Yellow Hood Kit Model-XMR Black/Yellow | 1 |
| 1 | 708301155 | CAMO HOOD KIT Model-XMR Camo | 1 |
| 8 | 732610072 | Push Nut | 8 |
| 1 | 715002302 | Black LH Front Fender Kit Model-XMR Black/Yellow Nord America | 1 |
| 1 | 715002304 | Black LH Front Fender Kit Model-XMR Black/Yellow International | 1 |
| 1 | 715002305 | Camo LH Front Fender Kit Model-XMR Camo Nord America | 1 |
| 1 | 715002306 | CAMO LH FRONT FENDER KIT Model-XMR Camo International | 1 |
| 1 | 715001826 | Black RH Front Fender Kit Model-XMR Black/Yellow Nord America | 1 |
| 1 | 715002309 | Black RH Front Fender Kit Model-XMR Black/Yellow International | 1 |
| 1 | 715001830 | Camo RH Front Fender Kit Model-XMR Camo Nord America | 1 |
| 715002310 | CAMO RH FRONT FENDER KIT Model-XMR Camo International | ||
| 8 | 250000646 | Black, Torx Screw M6 X 35 | 8 |
| 1 | 715001798 | Black LH Rear Fender Kit Model-XMR Black Nord America | 1 |
| 1 | 715002312 | Black LH Rear Fender Kit Model-XMR Black International | 1 |
| 1 | 715001800 | CAMO LH REAR FENDER KIT Model-XMR Camo Nord America | 1 |
| 1 | 715002314 | Camo LH Rear Fender Kit Model-XMR Camo International | 1 |
| 1 | 715001810 | Black RH Rear Fender Kit Model-XMR Black Nord America | 1 |
| 1 | 715002315 | Black RH Rear Fender Kit Model-XMR Black International | 1 |
| 1 | 715001811 | Camo RH Rear Fender Kit Model-XMR Camo Nord America | 1 |
| 1 | 715002295 | Camo RH Rear Fender Kit Model-XMR Camo International | 1 |
| 705005019 | Black Bumper | ||
| 1 | 705007896 | LH Rear Bracket | 1 |
| 1 | 705007897 | RH Rear Bracket | 1 |
| 16 | 241141340 | Hex. Screw K40 X 13 | 16 |
| 4 | 207664536 | Hex. Flange Screw M6 X 45 | 4 |
| 2 | 715001852 | Luggage Rack Kit Model-Nord America | 2 |
| 2 | 715002240 | Rack Kit Model-International | 2 |
