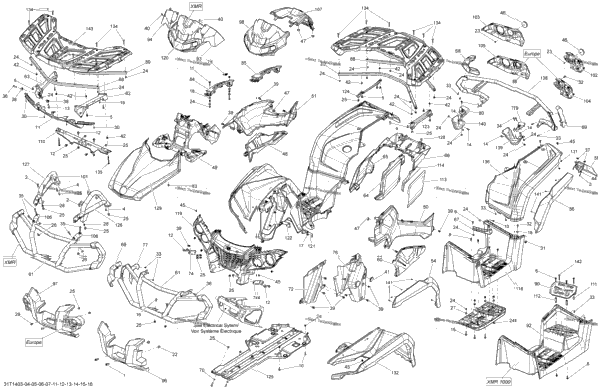

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 205003044 | Socket Screw M10 x 30 | 2 |
| XXX | Not Available As Spare Parts | ||
| 2 | 250000101 | Plastite Screw Type K-40, M4 X 25 | 2 |
| 6 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 6 |
| 10 | 207661684 | Hex. Flange Screw M6 X 16 | 10 |
| 8 | 207662084 | Hex. Flange Screw M6 X 20 | 8 |
| 2 | 207663034 | Hex. Flange Screw M6 X 30 | 2 |
| 8 | 207682044 | Hex. Flange Screw M8 X 20 | 8 |
| 2 | 207683534 | Hex. Flange Screw M8 X 35 | 2 |
| 4 | 207762044 | Carriage Bolt M6 X 20 | 4 |
| 8 | 207763584 | Carriage Bolt M6 X 35 | 8 |
| 2 | 207782044 | Carriage Bolt, M8 X 20 | 2 |
| 8 | 224061201 | Flat Washer | 8 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 2 | 233201434 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 38 | 233261434 | Flange Elastic Nut M6 | 38 |
| 16 | 233281434 | Hex. Flange Elastic Nut M8 | 16 |
| 8 | 234062410 | Flat Washer 6 mm | 8 |
| 2 | 236282084 | Hex. Screw M8 X 20 | 2 |
| 4 | 241140060 | Screw K40 X 10 | 4 |
| 4 | 250000048 | Panel Nut M6 X 1.0 | 4 |
| 7 | 250000128 | Torx Truss Screw M6 X 20 | 7 |
| 8 | 250000146 | Truss Head Torx Screw K50 X 16 | 8 |
| 2 | 250000371 | Torx Screw M6 X 30 Stainless | 2 |
| 4 | 250000544 | Torx Screw M8 X 30 | 4 |
| 4 | 269501943 | Elastic Nut Housing M8 | 4 |
| 22 | 293150089 | Tuflok Plastic Rivet | 22 |
| 2 | 293250242 | Rubber Cover | 2 |
| 293450274 | Insert | ||
| 2 | 293830005 | Rubber Bumper | 2 |
| 8 | 517302785 | Edge Clip | 8 |
| 2 | 705002408 | Red Reflector | 2 |
| 4 | 705003264 | Grommet | 4 |
| 1 | 705003444 | Engine Cover | 1 |
| 1 | 715001552 | Dash Support Kit Model-North America | 1 |
| 1 | 715002245 | Dash Support Kit Model-Europe/International | 1 |
| 1 | 705003446 | Yellow, LH Lateral Panel Model-Yellow | 1 |
| 1 | 705003446 | Yellow, LH Lateral Panel Model-Black/Yellow | 1 |
| 1 | 705005237 | Viper Red, LH Lateral Pannel Model-Red | 1 |
| 1 | 705005238 | PANEL_BODY LH B-005 Model-Camo | 1 |
| 1 | 705005239 | Magnesium LH Lateral Pannel Model-Magnesium | 1 |
| 1 | 705003447 | Yellow RH Pannel Model-Yellow | 1 |
| 1 | 705003447 | Yellow RH Pannel Model-Black/Yellow | 1 |
| 1 | 705005241 | Red RH Pannel Model-Red | 1 |
| 1 | 705005242 | Camo RH Pannel Model-Camo | 1 |
| 1 | 705005243 | Magnesium RH Pannel Model-Magnesium | 1 |
| 1 | 705004147 | LH Extension Pannel | 1 |
| 705005018 | Front Bumper Model-XT, XTP | ||
| 1 | 705006700 | LH Support Ass'y | 1 |
| 1 | 705006701 | RH Support Ass'y | 1 |
| 2 | 705004409 | Cap (Front LH) (Rear RH) Model-XT, XTP | 2 |
| 2 | 705004410 | Cap (Front RH) (Rear LH) Model-XT, XTP | 2 |
| 2 | 705004497 | Ring | 2 |
| 1 | 705004523 | Lugage Rack Moulding | 1 |
| 1 | 705004558 | RH Inner Fender | 1 |
| 1 | 705004557 | LH Inner Fender | 1 |
| 2 | 705004565 | Lower Fender Support | 2 |
| 1 | 705004587 | RH Inner Fender | 1 |
| 1 | 705004588 | LH Inner Fender | 1 |
| 4 | 705004987 | Bracket Cover Model-XT, XTP | 4 |
| 1 | 705005003 | Shiftgate Trim Model-Europe | 1 |
| 1 | 705005094 | LH Bracket Model-XT, XTP | 1 |
| 1 | 705005095 | RH Bracket Model-XT, XTP | 1 |
| 1 | 705005254 | LH. Footboard | 1 |
| 1 | 705005253 | RH. Footboard | 1 |
| 1 | 705005257 | Indicator Model-Nord America/International | 1 |
| 1 | 705005260 | Indicator Model-Europe | 1 |
| 2 | 705005469 | Tube | 2 |
| 2 | 705005470 | Tube | 2 |
| 1 | 705006299 | Front Guard Plate Model-Nord America/International | 1 |
| 1 | 705006300 | Front Guard Plate Model-Europe | 1 |
| 1 | 705006321 | Gauge Support Model-DPS, XT | 1 |
| 1 | 705006322 | Gauge Support Model-XTP | 1 |
| 1 | 705006643 | LH Rear Facia Model-Nord America/International | 1 |
| 1 | 705006650 | RH Rear Facia Model-Nord America/International | 1 |
| 1 | 705006651 | LH Rear Facia Model-Europe | 1 |
| 1 | 705006652 | RH Rear Facia Model-Europe | 1 |
| 1 | 715001765 | Dash Kit Model-Nord America | 1 |
| 1 | 705006812 | Cargo Rack Center Support | 1 |
| 1 | 705007040 | LH Step | 1 |
| 1 | 705007039 | RH Step | 1 |
| 1 | 705007041 | Front Facia | 1 |
| 1 | 705007277 | LH Support | 1 |
| 1 | 705007278 | RH Support | 1 |
| 1 | 705007553 | Central Skid Plate | 1 |
| 1 | 715001541 | Yellow Hood Kit Model-Yellow Nord America | 1 |
| 1 | 715001541 | Yellow Hood Kit Model-XTP Nord America | 1 |
| 1 | 715002234 | Yellow Hood Kit Model-XTP Europe | 1 |
| 1 | 715002234 | Yellow Hood Kit Model-XTP International | 1 |
| 1 | 715002235 | RED HOOD KIT Model-Red International | 1 |
| 1 | 715001547 | CAMO HOOD KIT Model-Camo Nord America | 1 |
| 1 | 715001549 | Magnesium Hood Kit Model-Magnesium Nord America | 1 |
| 1 | 715002236 | MAGNESIUM HOOD KIT Model-Magnesium Europe | 1 |
| 1 | 715002236 | MAGNESIUM HOOD KIT Model-Magnesium International | 1 |
| 1 | 715002237 | Grey Hood Kit Model-Grey Nord America | 1 |
| 4 | 732610072 | Push Nut | 4 |
| 1 | 715002180 | Yellow LH Front Fender Kit Model-Yellow Nord America | 1 |
| 1 | 715002181 | Black LH Front Fender Kit Model-XTP Nord America | 1 |
| 1 | 715002201 | Black LH Front Fender Kit Model-XTP Europe | 1 |
| 1 | 715002201 | Black LH Front Fender Kit Model-XTP International | 1 |
| 715002203 | Red LH Front Fender Kit Model-Red International | ||
| 1 | 715002183 | CAMO LH FRONT FENDER KIT Model-Camo Nord America | 1 |
| 1 | 715002179 | Magnesium LH Front Fender Kit Model-Magnesium Nord America | 1 |
| 1 | 715002196 | MAGNESIUM LH FRONT FENDER KIT Model-Magnesium Europe | 1 |
| 1 | 715002196 | MAGNESIUM LH FRONT FENDER KIT Model-Magnesium International | 1 |
| 1 | 715002184 | Grey LH Front Fender Kit Model-Grey Nord America | 1 |
| 1 | 715001510 | Yellow RH Front Fender Kit Model-Yellow Nord America | 1 |
| 1 | 715001757 | Black RH Front Fender Kit Model-XTP Nord America | 1 |
| 1 | 715002207 | Black RH Front Fender Kit Model-XTP Europe | 1 |
| 1 | 715002207 | Black RH Front Fender Kit Model-XTP International | 1 |
| 1 | 715002206 | Red RH Front Fender Kit Model-Red International | 1 |
| 1 | 715001516 | CAMO RH FRONT FENDER KIT Model-Camo Nord America | 1 |
| 1 | 715001518 | Magnesium RH Front Fender Kit Model-Magnesium Nord America | 1 |
| 715002205 | MAGNESIUM RH FRONT FENDER KIT Model-Magnesium Europe | ||
| 715002205 | MAGNESIUM RH FRONT FENDER KIT Model-Magnesium International | ||
| 1 | 715002209 | Grey RH Front Fender Kit Model-Grey Nord America | 1 |
| 16 | 250000646 | Black, Torx Screw M6 X 35 | 16 |
| 2 | 207567044 | Hex. Flange Screw M6x70, Scotch Grip | 2 |
| 1 | 715001858 | Yellow LH Rear Fender Kit Model-Yellow Nord America | 1 |
| 1 | 715001875 | Black LH Rear Fender Kit Model-XTP Nord America | 1 |
| 1 | 715002221 | Black LH Rear Fender Kit Model-XTP Europe | 1 |
| 1 | 715002281 | Black LH Rear Fender Kit Model-XTP International | 1 |
| 715002219 | RED LH REAR FENDER KIT Model-Red International | ||
| 1 | 715001862 | CAMO LH REAR FENDER KIT Model-Camo Nord America | 1 |
| 1 | 715001866 | Magnesium LH Rear Fender Kit Model-Magnesium Nord America | 1 |
| 1 | 715002223 | Magnesium LH Rear Fender Kit Model-Magnesium Europe | 1 |
| 1 | 715002280 | Magnesium LH Rear Fender Kit Model-Magnesium International | 1 |
| 1 | 715002225 | Grey LH Rear Fender Kit Model-Grey Nord America | 1 |
| 1 | 715001820 | Yellow RH Rear Fender Kit Model-Yellow Nord America | 1 |
| 1 | 715001836 | Black RH Rear Fender Kit Model-XTP Nord America | 1 |
| 1 | 715002230 | Black RH Rear Fender Kit Model-XTP Europe | 1 |
| 1 | 715002230 | Black RH Rear Fender Kit Model-XTP International | 1 |
| 1 | 715002228 | Red RH Rear Fender Kit Model-Red International | 1 |
| 1 | 715001811 | Camo RH Rear Fender Kit Model-Camo Nord America | 1 |
| 1 | 715001819 | Magnesium RH Rear Fender Kit Model-Magnesium Nord America | 1 |
| 715002231 | Magnesium RH Rear Fender Kit Model-Magnesium Europe | ||
| 715002231 | Magnesium RH Rear Fender Kit Model-Magnesium International | ||
| 1 | 715002232 | Grey RH Rear Fender Kit Model-Grey Nord America | 1 |
| 705005019 | Black Bumper Model-XT, XTP | ||
| 1 | 705007896 | LH Rear Bracket Model-XT, XTP | 1 |
| 1 | 705007897 | RH Rear Bracket Model-XT, XTP | 1 |
| 2 | 715001852 | Luggage Rack Kit Model-Nord America | 2 |
| 2 | 715002240 | Rack Kit Model-International | 2 |
| 2 | 715002240 | Rack Kit Model-Europe | 2 |
