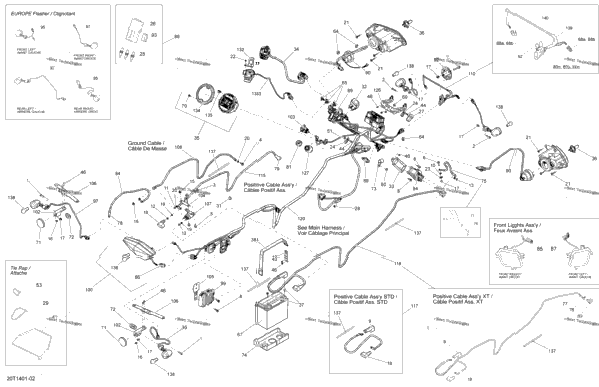

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 205062044 | Socket Head Screw M6 X 20 Europe | 2 |
| 2 | 205062544 | Socket Head Screw M6 X 25 Europe | 2 |
| 1 | 207162544 | Hex. Screw M6 X 25 | 1 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 2 | 207661244 | Hex. Flange Screw M6 X 12 | 2 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 XT | 1 |
| 1 | 207664544 | Hex. Flange Screw M6 X 45 Europe | 1 |
| 1 | 210262080 | Hex. Forming Screw M6 X 20 | 1 |
| 1 | 710001829 | Protector Cap STD, XT | 1 |
| 1 | 224061121 | Flat Washer XT | 1 |
| 1 | 232061414 | Hex. Nut M6 | 1 |
| 2 | 232061600 | Hex. Nut M6 | 2 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 3 | 233061414 | Hex. Flange Nut M6 | 3 |
| 2 | 233251414 | Hex. Flange Elastic Nut M5 Europe | 2 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 710001817 | Protector Cap | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 2 | 234461608 | External Serrated Lock Washer 6 mm | 2 |
| 6 | 250000101 | Plastite Screw Type K-40, M4 X 25 | 6 |
| 2 | 250000153 | Hex. Cap Screw 6-32 X 1/4" XT | 2 |
| 1 | 250200041 | Lock Washer Serrated M6 XT | 1 |
| 2 | 270000141 | Clip | 2 |
| 3 | 278000216 | Wire Seal STD, XT | 3 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits STD, XT | 1 |
| 1 | 278002704 | Diagnostic Connector | 1 |
| 1 | 293650100 | Oetiker Clamp | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 710001828 | Protector Cap XT | 1 |
| 1 | 293730040 | Mount Dart | 1 |
| 1 | 710003239 | Flasher Unit Europe | 1 |
| 1 | 710001813 | WINCH RELAY SUPPORT XT | 1 |
| 1 | 710003037 | Multi-Function Handle Europe | 1 |
| 1 | 710003063 | Multi-Fonction Handle Except Europe | 1 |
| 1 | 710003100 | Speedometer Ass'y | 1 |
| 2 | 710000871 | Bulb, 12V 35/35W | 2 |
| 1 | 295500849 | Battery Fastener Kit | 1 |
| 1 | 293850097 | Retainer Strap | 1 |
| 1 | 293750041 | Tie-rap 627 mm North America | 1 |
| 1 | 293850030 | Strap Clip | 1 |
| 1 | 390402300 | Pop Rivet 3/16" | 1 |
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 1 | 390406500 | Pop Rivet 3/16" | 1 |
| 1 | 250200081 | Flat Washer | 1 |
| 1 | 409010300 | Female Terminal Europe | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 4 | 414227300 | Clip | 4 |
| 3 | 515175283 | Housing Support | 3 |
| 1 | 515175494 | Male Housing, 3 Circuits | 1 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes | 1 |
| 1 | 515175231 | Female Terminal Europe | 1 |
| 1 | 515176296 | Female Terminal Housing, 2 Circuits Europe | 1 |
| 1 | 517124300 | Washer | 1 |
| 1 | 704901270 | BRP Logo 13 mm | 1 |
| 2 | 705002408 | Red Reflector Europe | 2 |
| 2 | 705003668 | Oblong Grommet Europe | 2 |
| 1 | 705600311 | CLAMP | 1 |
| 1 | 710000279 | INSULATOR PAD | 1 |
| 710000455 | NEGATIVE CABLE ASS'Y XT | ||
| 710000476 | OPEN BARREL, 6.6 MM XT | ||
| 1 | 219704447 | Was 710000483 Heat Shrink Tubing | 1 |
| 1 | 710000518 | Open Barrel | 1 |
| 1 | 710000526 | Protector Cap | 1 |
| 1 | 409012900 | Male Terminal Europe | 1 |
| 710000576 | HOUSING, 4CIRCUITS Europe | ||
| 1 | 278001013 | Wire Seal Europe | 1 |
| 1 | 710000817 | Black, Electronic Key International | 1 |
| 2 | 710000817 | Black, Electronic Key Europe | 2 |
| 1 | 710000830 | Ground Cable Ass'y, Battery/Frame | 1 |
| 1 | 710000861 | RH Headlamp Ass'y Europe | 1 |
| 1 | 710001496 | RH Headlamp Ass'y Except Europe | 1 |
| 1 | 710000862 | LH Headlamp Ass'y Europe | 1 |
| 1 | 710001497 | LH Headlamp Ass'y Except Europe | 1 |
| 1 | 710000917 | Connector Ass'y XT | 1 |
| 2 | 710000917 | Connector Ass'y STD | 2 |
| 2 | 710000828 | LIGHT HARNESS Except Europe | 2 |
| 2 | 710000923 | Headlamp Harness Europe | 2 |
| 1 | 710000983 | Horn Europe | 1 |
| 1 | 710000992 | Clip STD | 1 |
| 2 | 710000992 | Clip XT | 2 |
| 1 | 710001000 | Winch Solenoid XT | 1 |
| 2 | 710001079 | FLASHING LIGHT ASS'Y Europe | 2 |
| 710001080 | FLASHING LIGHT ASS'Y Europe | ||
| 1 | 710001103 | Voltage Regulator | 1 |
| 1 | 710001203 | Tail Light Housing Ass'y Except Europe | 1 |
| 1 | 710001204 | Tail Light Housing Ass'y Europe | 1 |
| 1 | 710001329 | BRACKET Europe | 1 |
| 1 | 710001330 | BRACKET Europe | 1 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710001260 | SOLENOID SUPPORT | 1 |
| 710001262 | RECTIFIER SUPPORT | ||
| 2 | 710001241 | BRACKET Europe | 2 |
| 1 | 710001364 | Starter Relay | 1 |
| 710001443 | Ground Cable | ||
| 1 | 710001495 | FRONT HARNESS ASS'Y Europe | 1 |
| 710001820 | POSITIVE CABLE ASS'Y | ||
| 1 | 710001822 | Positive Cable Ass'y STD | 1 |
| 1 | 710001823 | POSITIVE CABLE ASS'Y XT | 1 |
| 1 | 710002113 | Main Harness Ass'y North America | 1 |
| 1 | 710002113 | Main Harness Ass'y International | 1 |
| 1 | 710002479 | WIRING HARNESS MAIN Europe | 1 |
| 1 | 710002176 | FUSE SUPPORT | 1 |
| 1 | 710002324 | Ignition Switch | 1 |
| 1 | 710002631 | Winch Switch Support XT | 1 |
| 1 | 710002724 | Winch Switch XT | 1 |
| 1 | 710001416 | Trim Ring | 1 |
| 1 | 710001473 | Button | 1 |
| 1 | 520000758 | Bulb | 1 |
| 710000497 | PROTECTOR TUBE, 9 MM STD | ||
| 710000497 | PROTECTOR TUBE, 9 MM XT | ||
| 710000497 | PROTECTOR TUBE, 9 MM | ||
| 4 | 415129258 | Bulb Europe | 4 |
| 1 | 219704399 | Was 409901700 Tubing (9 mm) Europe | 1 |
| 1 | 219704425 | Tubing 6 MM 3000MM Long Europe | 1 |
