Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

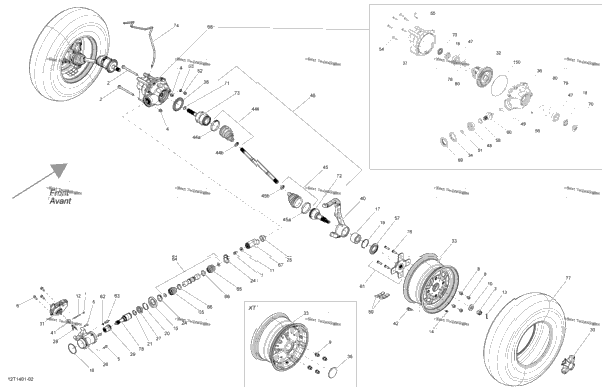

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 206580890 | Pressure Screw M8 X 8 | 1 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 3 | 250000136 | Socket Head Screw M8 X 20, Scotch Grip | 3 |
| 3 | 250000137 | Hex. Flange Screw M8 X 20, Scotch Grip | 3 |
| 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP | ||
| 8 | 250100042 | Steel Wheel Nut | 8 |
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 XT | 8 |
| 2 | 250200049 | Spring Washer | 2 |
| 1 | 250200102 | Flat Washer M12 | 1 |
| 1 | 250400025 | Dowell Pin | 1 |
| 2 | 250400036 | Cotter Pin | 2 |
| 2 | 293000110 | Valve Cap | 2 |
| 1 | 293250138 | Oil Seal | 1 |
| 1 | 293300091 | O-Ring | 1 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293350044 | Ball Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 1 | 293370029 | Circlip | 1 |
| 1 | 293370030 | Circlip | 1 |
| 3 | 293650138 | Oetiker Gear Clamp 44.0MM | 3 |
| 1 | 705400036 | Wear Ring | 1 |
| 1 | 705400169 | HOUSING | 1 |
| 1 | 705400249 | Ball Bearing | 1 |
| 1 | 705400387 | Shifter Plate | 1 |
| 1 | 705400389 | Coupling Sleeve | 1 |
| 2 | 705400563 | Wheel Cap | 2 |
| 1 | 705400581 | Actuator Ass'y | 1 |
| 1 | 705400645 | Differential | 1 |
| 2 | 705400648 | RIM_12 INCH X 6 XT Europe | 2 |
| 2 | 705401199 | Black,12" X 6 Rim STD North America | 2 |
| 1 | 705400661 | Nut | 1 |
| 2 | 705400680 | Wheel Cap XT | 2 |
| 1 | 705400761 | FRONT COVER | 1 |
| 1 | 705400762 | FRONT COVER | 1 |
| 2 | 705400780 | Wear Sleeve | 2 |
| 1 | 705400816 | LH Knuckle | 1 |
| 1 | 705400818 | RH Knuckle | 1 |
| 1 | 705400956 | Slider | 1 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 2 | 705401346 | Boot Kit, Differential Side Includes 44 to 44b | 2 |
| 2 | 715900284 | Oetiker Clamp, Large | 2 |
| 2 | 715900261 | Oetiker Clamp, Small | 2 |
| 2 | 705401345 | Boot Kit, Wheel Side Includes 45 to 45b | 2 |
| 2 | 715900282 | Oetiker Clamp | 2 |
| 2 | 715900283 | Oetiker Clamp, Small | 2 |
| 1 | 705401109 | LH Homocinetic Joint | 1 |
| 1 | 705401110 | RH Homocinetic Joint | 1 |
| 2 | 705500259 | Ball Bearing | 2 |
| 1 | 705500260 | Ball Bearing | 1 |
| 1 | 705500261 | Needle Bearing | 1 |
| 1 | 705500265 | Seal | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 6 | 705500892 | SCREW | 6 |
| 1 | 705500893 | VENT VALVE | 1 |
| 1 | 705500894 | Drain Plug | 1 |
| 2 | 705501121 | Wear Sleeve | 2 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 1 | 705501162 | Pinion Gear Shim | 1 |
| 1 | 219704465 | 1/2 OZ Weight | 1 |
| 705501588 | 10 TEETH PINION | ||
| 2 | 705501713 | LH Wheel Hub Assembly | 2 |
| 1 | 705600310 | Copper Washer | 1 |
| 1 | 710000324 | Switch | 1 |
| 1 | 705400912 | Front Drive Axle Ass'y | 1 |
| 1 | 715900118 | Rubber Boot | 1 |
| 1 | 509000045 | Oetiker Gear Clamp 36.1MM | 1 |
| 1 | 703500678 | Front Bushing Shaft Kit | 1 |
| 1 | 705401484 | Front Differential Ass'y | 1 |
| 1 | 705401481 | Oil Seal | 1 |
| 2 | 705401486 | Oil Seal | 2 |
| 2 | 705401349 | Circlip Joint | 2 |
| 2 | 705401344 | CV Joint | 2 |
| 1 | 705401351 | Right Plunging Joint | 1 |
| 1 | 705401352 | Left Plunging Joint | 1 |
| 1 | 219704410 | Was 415080200 Hose, Polyurethane | 1 |
| 4 | 250300055 | Wheel Stud M10 X 1.25 | 4 |
| 2 | 705400606 | Front Tire XT Except Europe | 2 |
| 2 | 705400326 | Front Tire XT Europe | 2 |
| 2 | 705400009 | Front Tire STD Except Europe | 2 |
| 2 | 705400607 | Front Tire STD Europe | 2 |
| 1 | 705400917 | UNION SHAFT | 1 |
| 1 | 703500288 | Differential Shim Spool Kit | 1 |
| 1 | 703500050 | Differential Shim Spool Kit | 1 |
