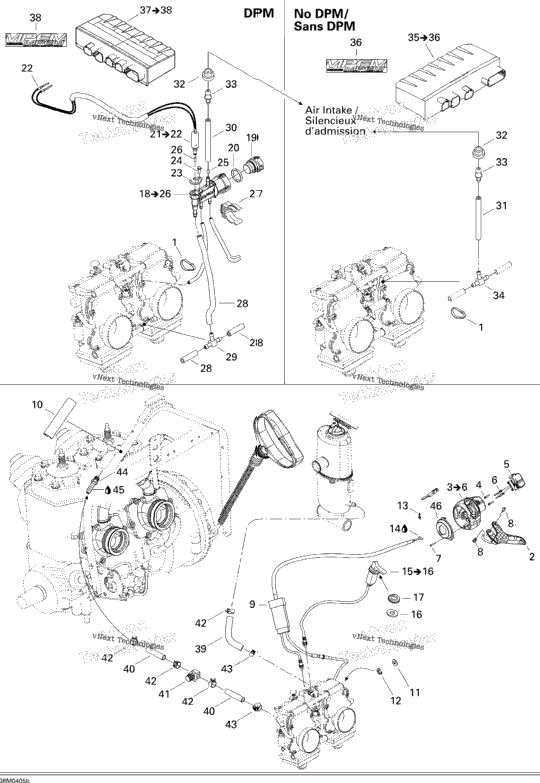

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 512059766 | Handle Ass’Y, 28 mm Trail, Adrenaline & Renegade | 1 |
| 1 | 512059811 | Handle Ass’Y, 28 mm X & Renegade | 1 |
| 1 | 512059810 | Housing Throttle Ass'y Includes items 3 to 6 | 1 |
| 2 | 250000008 | HEX. SCREW K40 X 40 | 2 |
| 415128683 | Kill Switch | ||
| 2 | 515175232 | Male Terminal | 2 |
| 250000098 | PHILLIPS SCREW M2.9 X 16 | ||
| 2 | 732601143 | Flange Screw | 2 |
| 512059789 | THROTTLE CABLE X & Renegade | ||
| 1 | 512059856 | Throttle Cable Trail, Adrenaline & Renegade | 1 |
| 1 | 512059750 | PROTECTOR | 1 |
| 1 | 234081100 | Flat Washer 8 mm, Nylon | 1 |
| 1 | 414753500 | Circlip | 1 |
| 1 | 414274500 | Circlip | 1 |
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 512059266 | CHOKE CABLE Includes items 15 to 16 | ||
| 394103300 | Lock Washer, Interior Teeth | ||
| 1 | 512059094 | PLASTIC NUT | 1 |
| 1 | 512059700 | Pressure Manifold Ass’Y With DPM / Includes items 18 to 26 | 1 |
| 1 | 270600009 | CAP | 1 |
| 1 | 293300042 | O-RING | 1 |
| 1 | 515175701 | PRESSURE MANIFOLD HARNESS Includes items 21 to 22 | 1 |
| 2 | 278000632 | Female Terminal | 2 |
| 1 | 415061600 | SOLENOID LOCK | 1 |
| 1 | 241140060 | Screw K40 X 10 | 1 |
| XXXX | Not Available As Spare Part - Starter Jet | ||
| 404161825 | STARTER JET | ||
| 1 | 512058919 | SUPPORT With DPM | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long With DPM | 1 |
| 1 | 414729300 | T-FITTING With DPM | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long Without DPM | 1 |
| 1 | 512059931 | GROMMET | 1 |
| 1 | 293710035 | Straight Fitting | 1 |
| 1 | 572045500 | T-Fitting Without DPM | 1 |
| 512059848 | Calibrated Module 500 SS Standard / Includes items 35 to 36 | ||
| 512059850 | Calibrated Module 500 SS RER / Includes items 35 to 36 | ||
| 512059851 | Calibrated Module 600 H.O. Standard / Includes items 35 to 36 | ||
| 512059852 | CALIBRATED MODULE 600 H.O. RER / Includes items 35 to 36 | ||
| 512059855 | Calibrated Module 800 H.O. Without DPM / Includes items 35 to 36 | ||
| 516000245 | Electrical Box Decal | ||
| 512059853 | Calibrated Module 800 H.O. With DPM / Includes items 37 to 38 | ||
| 512059861 | Calibrated Module 600 H.O. With DPM / Includes items 37 to 38 | ||
| 1 | 509000171 | FORMED HOSE | 1 |
| 509000093 | Hose 8 mm | ||
| 1 | 512059324 | Valve 5/16” | 1 |
| 4 | 414655700 | Spring Clamp | 4 |
| 2 | 293650128 | Hose Clamp | 2 |
| 293710082 | STRAIGHT FITTING | ||
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 1 | 512059698 | COVER | 1 |
