СвязатьсяСписок запчастей

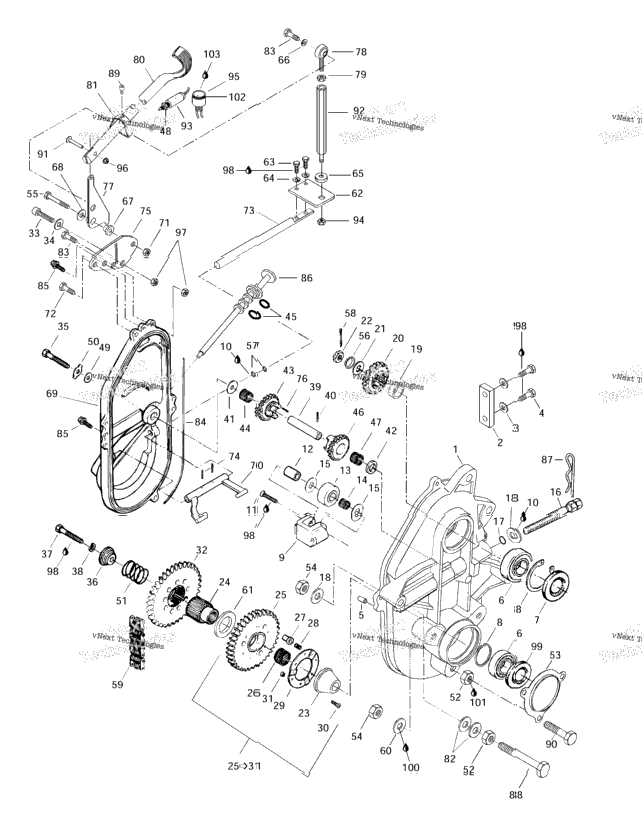

| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 504144701 | Chaincase Touring SLE. | ||
| 504082400 | Chain Slider Touring SLE. | ||
| 732900040 | Copper Washer Touring SLE. | ||
| 2 | 222061665 | Hex. Screw M6 x 16 Touring SLE. | 2 |
| 1 | 732620001 | CYLINDER PIN Touring SLE. | 1 |
| 2 | 405404400 | Ball Bearing <<6205>> Touring SLE. | 2 |
| 1 | 414882800 | OIL SEAL Touring SLE. | 1 |
| 371901700 | CIRCLIP Touring SLE. | ||
| 1 | 504081000 | MACHINED TENSIONER Touring SLE. | 1 |
| 413706100 | LITHIUM GREASE, 400 GR Touring SLE. | ||
| 1 | 732601144 | SCREW Touring SLE. | 1 |
| 1 | 504080200 | SPACER Touring SLE. | 1 |
| 414531300 | ROLLER Touring SLE. | ||
| 1 | 405403000 | NEEDLE BEARING Touring SLE. | 1 |
| 2 | 504080300 | WASHER Touring SLE. | 2 |
| 732601267 | Tensioner Adjustment Screw (Forging) Touring SLE. | ||
| 1 | 414484400 | O-Ring Touring SLE. | 1 |
| 3 | 224001211 | Flat Washer 10 mm Touring SLE. | 3 |
| 504093400 | Shim Touring SLE. | ||
| 504091200 | Sprocket, 21 Teeth Touring SLE. | ||
| 504087100 | Washer Touring SLE. | ||
| 1 | 228911045 | Castellated Nut M20 Touring SLE. | 1 |
| 504094100 | Retaining Ring Touring SLE. | ||
| 504094200 | Coupling Shaft Touring SLE. | ||
| 1 | 414805101 | PLASTIC NUT Touring SLE. | 1 |
| 581095900 | SPROCKET ASS'Y (44 TEETH) Includes 25 - 31. . | ||
| 1 | 504088200 | SPROCKET (44 TEETH) Touring SLE. | 1 |
| 1 | 414772600 | NEEDLE BEARING Touring SLE. | 1 |
| 504076800 | DRIVE PIN Touring SLE. | ||
| 3 | 414772700 | SPRING Touring SLE. | 3 |
| 504076100 | RETAINER RING Touring SLE. | ||
| 6 | 222052065 | Screw Hex. M5 x 20 Touring SLE. | 6 |
| 228451046 | Nut Lock Hex. M5 Touring SLE. | ||
| 1 | 504096800 | SLIDING GEAR, 56 TEETH Touring SLE. | 1 |
| 1 | 222961665 | Allen Screw M6 x 16 Touring SLE. | 1 |
| 1 | 224061151 | Washer 6 mm Touring SLE. | 1 |
| 1 | 222089065 | Hex. Screw M8 x 90 Touring SLE. | 1 |
| 504099100 | Cap Touring SLE. | ||
| 1 | 222005065 | Hex. Screw M10 x 50 Touring SLE. | 1 |
| 224701188 | WASHER-LOCK SPRING DIN.128A-A2 Touring SLE. | ||
| 1 | 504083100 | Reverse Shaft Touring SLE. | 1 |
| 732804003 | Spring Pin Touring SLE. | ||
| 1 | 504077300 | Spacer Touring SLE. | 1 |
| 1 | 504078700 | Ring Touring SLE. | 1 |
| 581122200 | SPROCK ASS?Y, 19 TEETH Includes 43 - 44. Touring SLE. | ||
| 414805000 | NEEDLE BEARING Touring SLE. | ||
| 414969400 | O-RING Touring SLE. | ||
| 581098200 | Sprocket Ass'y (19 Teeth) Includes 46 - 47. Touring SLE. | ||
| 1 | 414773100 | NEEDLE BEARING Touring SLE. | 1 |
| 732610075 | Nut Touring SLE. | ||
| 1 | 504082900 | Washer Touring SLE. | 1 |
| 504087700 | TAB LOCK Touring SLE. | ||
| 504099200 | Release Spring Touring SLE. | ||
| 504083800 | Spacer Touring SLE. | ||
| 501022100 | Protector Touring SLE. | ||
| 5 | 228501045 | Elastic Stop Nut M10 Touring SLE. | 5 |
| 1 | 222084565 | Screw-Hex.Cap Din.931 Touring SLE. | 1 |
| 417000900 | Spring Washer Touring SLE. | ||
| 2 | 414773200 | O-RING Touring SLE. | 2 |
| 371801300 | Cotter Pin Touring SLE. | ||
| 412105500 | Drive Chain, (72 Links-Narrow) Touring SLE. | ||
| 732900020 | Copper Washer Touring SLE. | ||
| 1 | 504094300 | WASHER Touring SLE. | 1 |
| 504094602 | Plate Touring SLE. | ||
| 2 | 222051465 | Hex. Screw M5 x 14 Touring SLE. | 2 |
| 2 | 224751090 | Lock Washer 5 mm (Black) Touring SLE. | 2 |
| 570045700 | Rubber Washer Touring SLE. | ||
| 1 | 224761110 | Lock Washer 6 mm Touring SLE. | 1 |
| 414927600 | Flanged Bushing Touring SLE. | ||
| 1 | 224081201 | FLAT WASHER Touring SLE. | 1 |
| 504098500 | Cover Chaincase Touring SLE. | ||
| 504075800 | Fork Touring SLE. | ||
| 1 | 228581045 | Elastic Stop Nut M8 Touring SLE. | 1 |
| 1 | 732600002 | Hex. Screw M6 x 16 Touring SLE. | 1 |
| 504142900 | Shaft Touring SLE. | ||
| 2 | 414772500 | SPRING PIN Touring SLE. | 2 |
| 504095000 | Support-Pivot Touring SLE. | ||
| 1 | 570048600 | Alignement Rod Touring SLE. | 1 |
| 504094900 | Weld Plate Pivoting Touring SLE. | ||
| 414773400 | RH BALL-JOINT Touring SLE. | ||
| 1 | 228061045 | Nut M6 Touring SLE. | 1 |
| 1 | 570044600 | GRIP Touring SLE. | 1 |
| 572071100 | Stopper-Switch Touring SLE. | ||
| 1 | 504073700 | WASHER Touring SLE. | 1 |
| 2 | 222062065 | Hex. Screw M6 x 20 Touring SLE. | 2 |
| 414362300 | O-Ring Touring SLE. | ||
| 4 | 732600004 | Hex. Flange Screw M6 x 30 Touring SLE. | 4 |
| 572092700 | FILLER CAP ASS'Y Touring SLE. | ||
| 1 | 414575600 | Hair Pin Touring SLE. | 1 |
| 732601111 | Hex. Screw M10 x 70 Touring SLE. | ||
| 364901600 | Phillips Screw 8x1/2" Touring SLE. | ||
| 732601112 | Hex. Screw M10 x 40 Touring SLE. | ||
| 390008900 | Rivet Touring SLE. | ||
| 504094700 | Tie Rod (Bar) Touring SLE. | ||
| 515165800 | Switch Connector Ass'y Touring SLE. | ||
| 1 | 228551045 | Elastic Stop Nut M5 Touring SLE. | 1 |
| 414805102 | DC Horn Touring SLE. | ||
| 1 | 389804300 | Push Nut Touring SLE. | 1 |
| 2 | 228561045 | Elastic Stop Nut M6 Touring SLE. | 2 |
| 1 | 413707400 | Loctite 271, 10cc Touring SLE. | 1 |
| 1 | 581101700 | Oil Seal Touring SLE. | 1 |
| 219704462 | ADHESIVE LOCTITE 515 50ML Touring SLE. | ||
| 1 | 413703000 | Loctite 242, 10 cc Touring SLE. | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml Touring SLE. | 1 |
