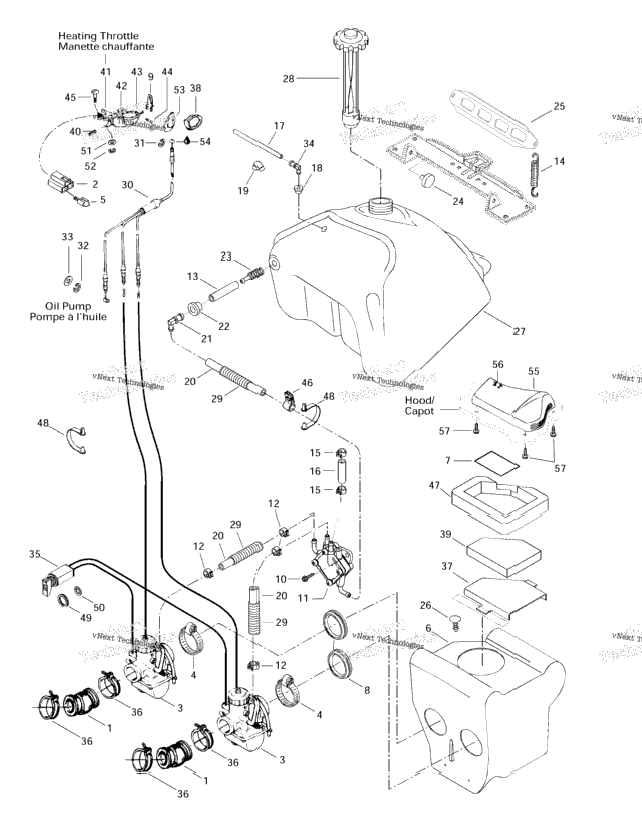

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 570045000 | Rubber Flange | ||
| 409008500 | Female Terminal Housing (3 circuits) | ||
| 403127200 | Carburetor VM 30-190 Touring E. Touring E LT (2). | ||
| 403123500 | Carburetor VM 34 -467 Touring LE. | ||
| 403127400 | Carburetor VM 34 481 (PTO) Touring SLE. | ||
| 403127500 | Carburetor VM 34 482 (MAG) Touring SLE. | ||
| 408801600 | TRIDON GEAR CLAMP | ||
| 561503200 | Female Terminal PACKARD | ||
| 580649200 | Air Silencer (Incl. 4,7,8,39,48,52,53) Touring E. Touring E LT (2). Touring LE. (Incl. 4,7, 8,26,37,39,47) | ||
| 580649100 | Air Silencer (Incl. 4,7,8,39,48,52,53) Touring SLE. (Incl. 4,7, 8,26,37,39,47) | ||
| 414161500 | Warning Decal | ||
| 570043600 | Adaptor 34 mm | ||
| 561503400 | MALE TERMINAL (18/16 GA.) | ||
| 2 | 732600005 | Hex. Screw Self Tapping M6 x 20 | 2 |
| 403801000 | Fuel Pump | ||
| 4 | 414554800 | Spring Clamp | 4 |
| XXXX | Not Available As Spare Part - Fuel line 4.76 mm Dia | ||
| 2 | 517182100 | SPRING | 2 |
| 1 | 414415200 | Spring Clamp | 1 |
| 1 | 219704439 | Hose 1/4 1000Mm Long - Call Your Local BRP Dealership | 1 |
| 414296900 | Fuel Line 3.18 mm | ||
| 1 | 570045500 | Grommet | 1 |
| 1 | 414227300 | Clip | 1 |
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 1 | 414580600 | Elbow Male Connector | 1 |
| 1 | 570135100 | Grommet | 1 |
| 1 | 414865700 | Fuel Filter | 1 |
| 2 | 570273900 | Grommet | 2 |
| 517249200 | Fuel Tank Bracket | ||
| 2 | 414644300 | Black, Dart | 2 |
| 571009300 | Fuel Tank | ||
| 1 | 572161200 | Fuel Tank Cap | 1 |
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 414883100 | THROTTLE CABLE AND HOUSING | ||
| 1 | 414274500 | Circlip | 1 |
| 1 | 414753500 | Circlip | 1 |
| 1 | 414753300 | Washer | 1 |
| 1 | 414814100 | Male Connector | 1 |
| 414967000 | CHOKE CABLE | ||
| 4 | 408801900 | TRIDON GEAR CLAMP | 4 |
| 517285900 | Intake Grill | ||
| 1 | 572044600 | THROTTLE COVER | 1 |
| 415037600 | Air Filter | ||
| 1 | 414440800 | Socket Set Screw M8 X 10 | 1 |
| 1 | 572084500 | Heated Throttle Handle ass'y. (30 mm) Touring E. Touring E LT (2). | 1 |
| 1 | 572085900 | Heated Throttle Handle ass'y. (34 mm) Touring LE. Touring SLE. | 1 |
| 1 | 414612700 | Kill Switch | 1 |
| 1 | 572086700 | Throttle Handle Housing | 1 |
| 1 | 414473200 | Screw | 1 |
| 1 | 414438700 | Lever Pin | 1 |
| 1 | 414351600 | CLIP | 1 |
| 415037700 | Foam Lower | ||
| 2 | 414379300 | CABLE CLIP | 2 |
| 1 | 414977200 | Plastic Nut | 1 |
| 394103300 | Lock Washer, Interior Teeth | ||
| 1 | 414438900 | Washer | 1 |
| 1 | 414439000 | Circlip | 1 |
| 1 | 572086800 | Plate | 1 |
| 413701700 | Dielectric Grease, 3 Oz | ||
| 572077900 | INTAKE COVER | ||
| 1 | 414972600 | Air Filter | 1 |
| 3 | 365901100 | HEX. SCREW 12 X 3/4 | 3 |
