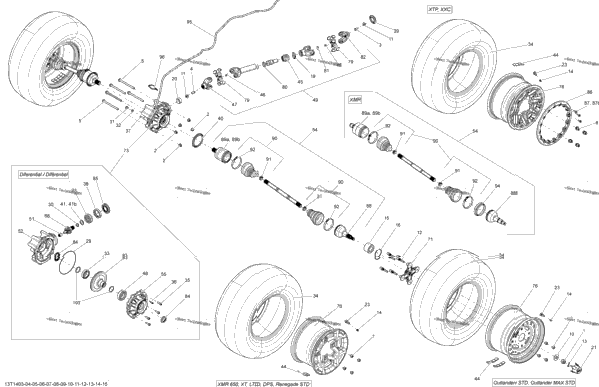

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 5 | 233201436 | Hex. Flange Elastic Nut M10 | 5 |
| 1 | 250000359 | Hex Flange Screw M12 x 16 | 1 |
| 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP | ||
| 5 | 250000508 | Hex. Flange Screw M10 x 135 | 5 |
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 | 8 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 | 8 |
| 2 | 250200049 | Spring Washer | 2 |
| 2 | 250200102 | Flat Washer M12 | 2 |
| 8 | 250300048 | Wheel Stud Tightening Torque: See Bulletin ATV 2020-4 | 8 |
| 2 | 250400036 | Cotter Pin | 2 |
| 2 | 293000110 | Valve Cap | 2 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 1 | 293650138 | Oetiker Gear Clamp 44.0MM | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 2 | 705400928 | Wheel Cap | 2 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 1 | 705500260 | Ball Bearing | 1 |
| 1 | 705500265 | Seal | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 1 | 705500749 | Ball Bearing | 1 |
| 2 | 705501767 | Tire STD, DPS Except Europe | 2 |
| 2 | 705501768 | Rear Tire DPS Europe | 2 |
| 2 | 705501769 | Tire XT Except Europe | 2 |
| 2 | 705501770 | Rear Tire XT Europe | 2 |
| 4 | 705500892 | SCREW | 4 |
| 1 | 705500893 | VENT VALVE | 1 |
| 1 | 705500894 | Drain Plug | 1 |
| 1 | 705500987 | Nut | 1 |
| 1 | 705501123 | Protector | 1 |
| 2 | 705501124 | Wear Ring | 2 |
| 1 | 705501162 | Pinion Gear Shim | 1 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 1 | 219704465 | 1/2 OZ Weight | 1 |
| 1 | 715900118 | Rubber Boot | 1 |
| 1 | 715900184 | Grease Fitting | 1 |
| 2 | 715900101 | Fixe Yoke | 2 |
| 1 | 705501389 | Ball Bearing | 1 |
| 1 | 705501406 | Rear Propeller Shaft Ass'y | 1 |
| 1 | 705501408 | Needle Bearing | 1 |
| 1 | 705501420 | PINION REAR COVER | 1 |
| 1 | 705501486 | RH Rear - Premium CV Axle | 1 |
| 1 | 705501485 | LH Rear - Premium CV Axle | 1 |
| 1 | 705501507 | REAR DIFFERENTIAL COVER | 1 |
| 1 | 705501570 | 10 Teeth Pinion | 1 |
| 2 | 705501716 | Wheel Hub Ass'y 703501191 won't fit this unit - please order 705501716 or 705501900 | 2 |
| 705501993 | Rear Differential Ass'y | ||
| 2 | 705501802 | Black, Rim STD | 2 |
| 2 | 705501669 | Silver Rear Rim DPS | 2 |
| 2 | 705501675 | Black Rear Rim XT Camo | 2 |
| 2 | 705501856 | Black, Rim XT Except Camo | 2 |
| 2 | 715500371 | Universal Joint | 2 |
| 1 | 509000045 | Oetiker Gear Clamp 36.1MM | 1 |
| 1 | 715900187 | Cover | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 705501403 | 36 Teeth Pinion | 1 |
| 2 | 705501996 | Oil Seal | 2 |
| 1 | 705401481 | Oil Seal | 1 |
| 2 | 705501776 | CV Joint | 2 |
| 705501780 | PLUNGING JOINT | ||
| 2 | 705501781 | Circlip | 2 |
| 4 | 705501777 | Rubber Boot Kit | 4 |
| 2 | 715900242 | Oetiker Clamp, 27.3 mm | 2 |
| 2 | 715900241 | Oetiker Clamp, 82.1 mm | 2 |
| 1 | 219704410 | Was 415080200 Hose, Polyurethane | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 703500548 | Differential Shim Kit | 1 |
