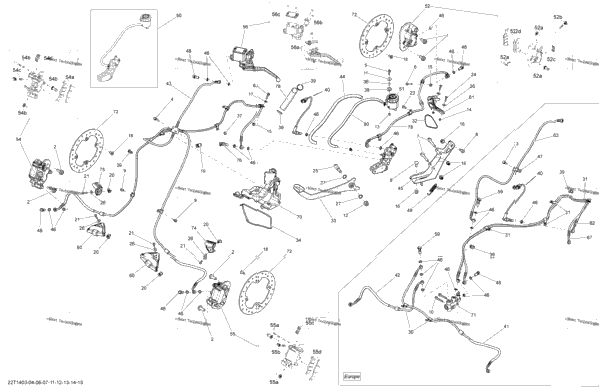

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 207502046 | Hex. Flange Screw M10 X 20 | 2 |
| 4 | 207502546 | Hex. Flange Screw M10 X 25 | 4 |
| 1 | 207562044 | Flange Screw M6 X 20, Scotch Grip | 1 |
| 1 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip | 1 |
| 1 | 207652044 | Hex.Flange Screw M5 X 20 | 1 |
| 2 | 207685544 | Hex. Flange Screw M8 X 55 | 2 |
| 3 | 207782044 | Carriage Bolt, M8 X 20 | 3 |
| 2 | 210261040 | Hex. Flange Screw M6 X 10 | 2 |
| 2 | 210264080 | HEX. SCREW M6 X 40 | 2 |
| 1 | 224060201 | Flat Washer | 1 |
| 1 | 233201436 | Hex. Flange Elastic Nut M10 | 1 |
| 1 | 233251414 | Hex. Flange Elastic Nut M5 | 1 |
| 2 | 233251494 | Elastic Flange Nut M5 | 2 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 5 | 233281414 | Hex. Flange Elastic Nut M8 | 5 |
| 1 | 234062410 | Flat Washer 6 mm | 1 |
| 12 | 235381646 | Torx Screw M8 X 16, Scotch Grip | 12 |
| 1 | 250000048 | Panel Nut M6 X 1.0 | 1 |
| 4 | 250000079 | Panel Nut M5 X 0.8 | 4 |
| 4 | 250000130 | Torx Screw M5 X 20 | 4 |
| 1 | 250000261 | Torx Screw M6 X 16 | 1 |
| 2 | 250000465 | Torx Screw M5 X 20 | 2 |
| 1 | 250000513 | Shoulder Screw M10 | 1 |
| 4 | 250200025 | Washer M5 | 4 |
| 2 | 250200025 | Washer M5 | 2 |
| 2 | 293300144 | O-Ring | 2 |
| 2 | 293650219 | Clamp | 2 |
| 4 | 293650220 | Clamp | 4 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 705601155 | Brake Pedal | 1 |
| 1 | 293750047 | Tie Rap, 533 mm | 1 |
| 1 | 293900112 | Bushing | 1 |
| 1 | 390406500 | Pop Rivet 3/16" | 1 |
| 1 | 414036300 | Grommet | 1 |
| 2 | 414115200 | Tie-Rap 180 mm Except Europe | 2 |
| 3 | 414115200 | Tie-Rap 180 mm Europe | 3 |
| 1 | 705601250 | Brake Switch | 1 |
| 1 | 705601251 | Brake Switch Europe | 1 |
| 1 | 705601124 | LH Brake Line | 1 |
| 1 | 705601125 | RH Brake Line | 1 |
| 1 | 705601122 | Brake Line | 1 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 1 | 705202000 | Brake Pedal Bracket | 1 |
| 21 | 705600310 | Copper Washer Europe | 21 |
| 12 | 705600310 | Copper Washer Except Europe | 12 |
| 2 | 705600459 | Clamp Except Europe | 2 |
| 3 | 705600459 | Clamp Europe | 3 |
| 4 | 705600609 | Banjo Bolt (M10 x 1.25 thread) Except Europe | 4 |
| 5 | 705600609 | Banjo Bolt (M10 x 1.25 thread) Europe | 5 |
| 1 | 705600792 | Brake Pedal Spring | 1 |
| 1 | 705601273 | Rear Master Cylinder Except Europe | 1 |
| 1 | 705601274 | Rear Master Cylinder Ass'y Europe | 1 |
| 1 | 705601020 | Oil Tank | 1 |
| 1 | 705600859 | RH Rear Caliper Ass'y | 1 |
| 1 | 705601016 | Pin Set | 1 |
| 1 | 705601017 | Bleeding Screw | 1 |
| 1 | 705601018 | Retaining Spring | 1 |
| 1 | 705601014 | LH Organic Brake Pad Kit | 1 |
| 1 | 705600861 | RH Front Caliper Ass'y | 1 |
| 1 | 705600862 | LH Front Caliper Ass'y | 1 |
| 1 | 705601015 | LH Organic Brake Pad Kit | 1 |
| 1 | 705600865 | Front Master Cylinder | 1 |
| 1 | 705601013 | Lever Set | 1 |
| 1 | 507032477 | Clamp And Screw Kit | 1 |
| 1 | 219800096 | Cap Set | 1 |
| 2 | 705600958 | Banjo Bolt | 2 |
| 2 | 705600962 | Front Hose Protector | 2 |
| 1 | 705600963 | REAR HOSE PROTECTOR | 1 |
| 1 | 705600964 | Outlet Hose, Master Cylinder | 1 |
| 1 | 705600967 | Brake Handle Line | 1 |
| 1 | 705600973 | Inlet Hose, Master Cylinder | 1 |
| 1 | 705600983 | Front Hose Bracket | 1 |
| 1 | 705600994 | Splitter | 1 |
| 3 | 705600999 | Disc Brake | 3 |
| 1 | 705601048 | LH Hose Bracket | 1 |
| 1 | 705601049 | RH Hose Bracket | 1 |
| 1 | 705601051 | Bleeding Screw | 1 |
| 1 | 705601005 | RH Brake Line Europe | 1 |
| 1 | 705601002 | Brake Line Ass'y Except Europe | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 705601019 | Oil Housing Hose | 1 |
