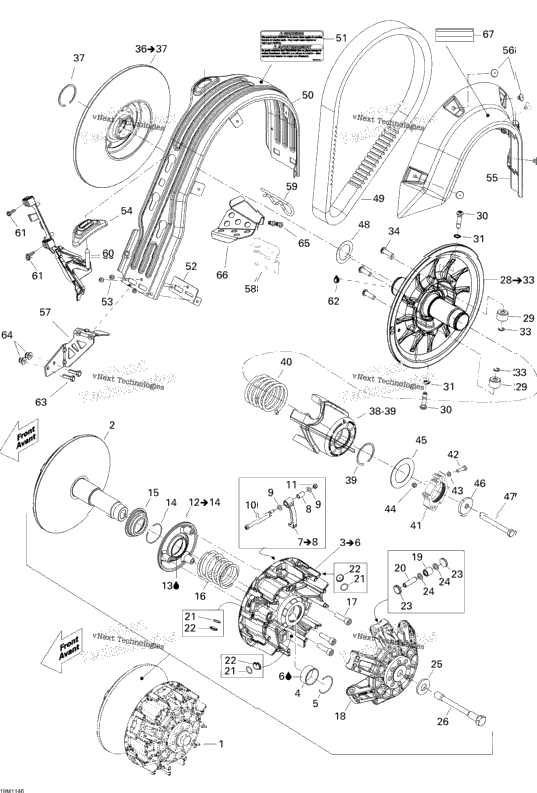

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Drive Pulley Ass'y | ||
| 1 | 417223286 | Fixe Flange Ass'y | 1 |
| XXXX | Not Available As Spare Part - Sliding Flange Ass'y | ||
| XXX | Not Available As Spare Parts Included In Ramp Kit | ||
| 1 | 293370065 | Circlip | 1 |
| 293800118 | ADHESIVE LOCTITE 680 | ||
| 6 | 417223508 | Ramp 716 Ass'y Includes 7 to 8 | 6 |
| 12 | 417223255 | Thrust Washer | 12 |
| 6 | 417223258 | Axle Ramp | 6 |
| 6 | 232551414 | Elastic Stop Nut M5 | 6 |
| 417223373 | Sliding Adaptor Ass'y | ||
| 293370063 | CIRCLIP | ||
| 417223155 | SPRING SEAT | ||
| 1 | 417223314 | Spring Clutch | 1 |
| 3 | 250000473 | SCREW-SOCKET HEAD S.GRIP | 3 |
| 417223283 | Governor Cup Ass'y | ||
| 6 | 417223387 | Roller | 6 |
| 6 | 417223257 | Roller Axle | 6 |
| 3 | 293300145 | O-ring | 3 |
| 3 | 417223254 | Slider Shoe | 3 |
| 9 | 417223269 | Slider Shoe | 9 |
| XXXX | Not Available As Spare Part - Thrust Washer | ||
| 1 | 250200006 | Spring Washer 14 mm | 1 |
| 1 | 417300407 | DRIVE BOLT PULLEY | 1 |
| 1 | 417127260 | Flange-Fix.Ass | 1 |
| 2 | 417127189 | Roller | 2 |
| 2 | 417127252 | Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 414753500 | Circlip | 2 |
| 2 | 250000283 | Torx Screw M8 X 25, Scotch Grip | 2 |
| 1 | 417127231 | Slider Flange Ass'y | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127240 | Cam Ass'y | 1 |
| 1 | 293370049 | Circlip Includes 38 to 43 | 1 |
| 1 | 417127236 | Spring Release | 1 |
| 417127248 | Adjustment Pulley Ass'y | ||
| 1 | 205052544 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 Includes 44 to 45 | 1 |
| 1 | 417127155 | Washer Includes 46 to 47 | 1 |
| 1 | 517302322 | Strength Washer | 1 |
| 1 | 207287544 | Hex. Cap Screw M8 X 75 | 1 |
| 1 | 504112000 | Shim | 1 |
| 1 | 414860700 | Drive Belt | 1 |
| 1 | 417300382 | Belt Guard | 1 |
| 516004649 | Security label, Belt Guard | ||
| 1 | 417300380 | Reinforcement | 1 |
| 3 | 390909200 | Avex Rivet | 3 |
| 1 | 417300381 | Guide | 1 |
| 1 | 417300356 | Side Protector | 1 |
| 4 | 293150103 | Pop Rivet 3/16" | 4 |
| 1 | 417300374 | Front Belt Guard Bracket | 1 |
| 1 | 417300363 | Belt Guard Bracket | 1 |
| 1 | 114045200 | Hair Pin | 1 |
| 1 | 417300396 | BELT GUARD BRACKET | 1 |
| 2 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 2 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 2 | 207162044 | Hex. Screw M6 X 20 | 2 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 2 | 293150163 | Rivet Hucklok | 2 |
| 1 | 518325626 | Brake Hose Cover | 1 |
| 1 | 516003919 | Warning Decal | 1 |
