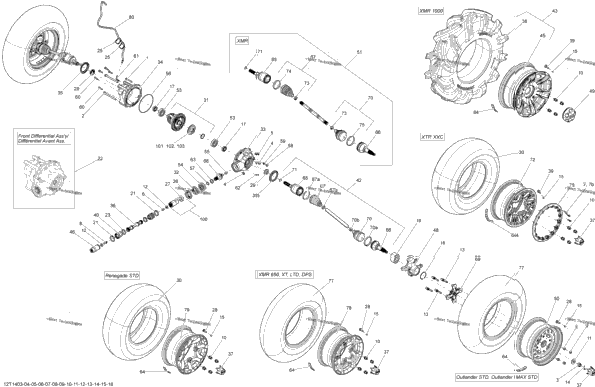

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 207685544 | Hex. Flange Screw M8 X 55 | 1 |
| 2 | 230602546 | Hex. Flange Screw M10 X 125 | 2 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 | 2 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 | 1 |
| 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP | ||
| XXX | Not Available As Spare Parts | ||
| 1 | 250000540 | Hex Flange Screw M12 X 20 | 1 |
| 8 | 250100100 | Black Wheel Nut M10 X 1.25 | 8 |
| 2 | 250200049 | Spring Washer | 2 |
| 2 | 250200102 | Flat Washer M12 | 2 |
| 8 | 250300048 | Wheel Stud Tightening Torque: See Bulletin ATV 2020-4 | 8 |
| 2 | 250400036 | Cotter Pin | 2 |
| 2 | 293000110 | Valve Cap | 2 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293350044 | Ball Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 2 | 293650138 | Oetiker Gear Clamp 44.0MM | 2 |
| 1 | 705401485 | Front Differential Ass'y | 1 |
| 1 | 293650199 | Oetiker Gear Clamp | 1 |
| 2 | 414115200 | Tie-Rap 180 mm | 2 |
| 1 | 705401481 | Oil Seal | 1 |
| 1 | 705400036 | Wear Ring | 1 |
| 1 | 705400193 | Rim Valve With Cap | 1 |
| 2 | 705401486 | Oil Seal | 2 |
| 705400822 | DIFFERENTIAL | ||
| 1 | 705400661 | Nut | 1 |
| 1 | 705400761 | FRONT COVER | 1 |
| 1 | 705400762 | FRONT COVER | 1 |
| 2 | 705400780 | Wear Sleeve | 2 |
| 1 | 705400913 | Front Drive Axle Ass'y | 1 |
| 2 | 705400928 | Wheel Cap | 2 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 1 | 705401093 | Rubber Boot | 1 |
| 2 | 703500678 | Front Bushing Shaft Kit | 2 |
| 1 | 705401290 | LH Knuckle | 1 |
| 1 | 705401291 | RH Knuckle | 1 |
| 1 | 705401383 | RH Homocinetic Joint | 1 |
| 1 | 705401384 | LH Homocinetic Joint | 1 |
| 2 | 705500259 | Ball Bearing | 2 |
| 1 | 705500260 | Ball Bearing | 1 |
| 1 | 705500261 | Needle Bearing | 1 |
| 1 | 705500265 | Seal | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 6 | 705500892 | SCREW | 6 |
| 1 | 705500893 | VENT VALVE | 1 |
| 1 | 705500894 | Drain Plug | 1 |
| 1 | 705501162 | Pinion Gear Shim | 1 |
| 1 | 705401357 | RH Plunging Joint | 1 |
| 1 | 705401359 | LH Plunging Joint | 1 |
| 2 | 705401407 | CV Joint | 2 |
| 2 | 705401355 | Boot Kit, Différential Side | 2 |
| 705501588 | 10 TEETH PINION | ||
| 2 | 705501716 | Wheel Hub Ass'y | 2 |
| 2 | 705401354 | Boot Kit, Wheel Side | 2 |
| 2 | 705401349 | Circlip Joint | 2 |
| 4 | 715900261 | Oetiker Clamp, Small | 4 |
| 2 | 715900262 | Oetiker Clamp, Large | 2 |
| 2 | 715900260 | Oetiker Clamp, Large | 2 |
| 705401391 | TIRE_28X8R12 F | ||
| 2 | 705401420 | Black, Rim | 2 |
| 1 | 219704410 | Was 415080200 Hose, Polyurethane | 1 |
| 1 | 703500050 | Differential Shim Spool Kit | 1 |
| 1 | 703500288 | Differential Shim Spool Kit | 1 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
