Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

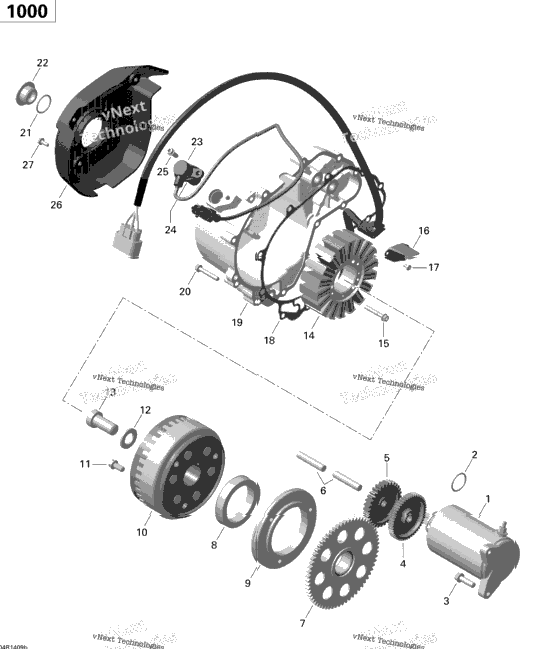

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 420684562 | Starter Ass'y Includes 1 to 2 | 1 |
| 1 | 420250140 | O-Ring | 1 |
| 1 | 420440372 | Torx Flange Screw M8 X 25 | 1 |
| 1 | 420634741 | Starter Double Gear 11/49 T | 1 |
| 1 | 420634605 | Starter Intermediate Gear, 30 Teeth | 1 |
| 2 | 420229302 | Location Pin 10 M6x50 | 2 |
| 1 | 420434235 | Free Wheel Gear, 64 Teeth | 1 |
| 1 | 420659112 | Sprag Clutch | 1 |
| 1 | 420659261 | Sprag Clutch Housing | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander DPS North America | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander XT North America | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander XT International | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander XT Europe | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander XTP North America | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander XTP International | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander XTP Europe | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander MAX DPS North America | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander MAX XT North America | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander MAX XT International | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander MAX XTP North America | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander MAX XTP International | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander MAX XTP Europe | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander MAX LTD North America | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander MAX LTD International | 1 |
| 1 | 420685647 | Flywheel, 650W Outlander MAX LTD Europe | 1 |
| 1 | 420685647 | Flywheel, 650W Renegade XXC North America | 1 |
| 1 | 420685647 | Flywheel, 650W Renegade XXC International | 1 |
| 1 | 420685647 | Flywheel, 650W Renegade XXC Europe | 1 |
| 3 | 420440852 | Torx Flange Screw M8 X 16 | 3 |
| 1 | 420627270 | Shim | 1 |
| 1 | 420241549 | Socket Head Screw M16 X 35 | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander DPS North America | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander XT North America | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander XT International | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander XT Europe | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander XTP North America | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander XTP International | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander XTP Europe | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander MAX DPS North America | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander MAX XT North America | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander MAX XT International | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander MAX XTP North America | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander MAX XTP International | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander MAX XTP Europe | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander MAX LTD North America | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander MAX LTD International | 1 |
| 1 | 420685632 | Stator Plate, 650W Outlander MAX LTD Europe | 1 |
| 1 | 420685632 | Stator Plate, 650W Renegade XXC North America | 1 |
| 1 | 420685632 | Stator Plate, 650W Renegade XXC International | 1 |
| 1 | 420685632 | Stator Plate, 650W Renegade XXC Europe | 1 |
| 3 | 420440274 | Torx Flange Screw M6 X 35 | 3 |
| 1 | 420251880 | Cable Inner Cover | 1 |
| 2 | 420240195 | Tapping Screw M4 X 8 | 2 |
| 1 | 420651200 | Gasket | 1 |
| 1 | 420611134 | Cover | 1 |
| 11 | 420440274 | Torx Flange Screw M6 X 35 | 11 |
| 1 | 420430782 | O-Ring | 1 |
| 1 | 420241630 | Screw Plug | 1 |
| 1 | 420966570 | Crankshaft Position Sensor Ass'y Includes 23 to 24 | 1 |
| 1 | 420431580 | O-Ring | 1 |
| 1 | 420641048 | Torx Flange Screw M6 X 16 | 1 |
| 1 | 420201390 | Cover | 1 |
| 3 | 420941935 | Taptite Screw M5 x 12 | 3 |
