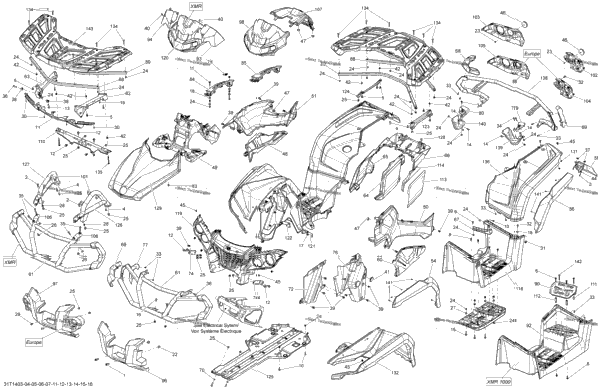

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 205003044 | Socket Screw M10 x 30 | 2 |
| XXX | Not Available As Spare Parts | ||
| 4 | 207342544 | Hex. Cap Screw M4 X 25 | 4 |
| 2 | 250000101 | Plastite Screw Type K-40, M4 X 25 | 2 |
| 6 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 6 |
| 10 | 207661684 | Hex. Flange Screw M6 X 16 | 10 |
| 16 | 207662084 | Hex. Flange Screw M6 X 20 | 16 |
| 2 | 207663034 | Hex. Flange Screw M6 X 30 | 2 |
| 8 | 207682044 | Hex. Flange Screw M8 X 20 | 8 |
| 2 | 207683534 | Hex. Flange Screw M8 X 35 | 2 |
| 4 | 207762044 | Carriage Bolt M6 X 20 | 4 |
| 8 | 207763584 | Carriage Bolt M6 X 35 | 8 |
| 2 | 207782044 | Carriage Bolt, M8 X 20 | 2 |
| 8 | 224061201 | Flat Washer | 8 |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 | 4 |
| 2 | 233201434 | Hex. Flange Elastic Nut M10 | 2 |
| 2 | 233251434 | Flange Elastic Nut M5 | 2 |
| 1 | 233261434 | Flange Elastic Nut M6 | 1 |
| 1 | 233281434 | Hex. Flange Elastic Nut M8 | 1 |
| 8 | 234062410 | Flat Washer 6 mm | 8 |
| 4 | 241140060 | Screw K40 X 10 | 4 |
| 4 | 250000048 | Panel Nut M6 X 1.0 | 4 |
| 9 | 250000128 | Torx Truss Screw M6 X 20 | 9 |
| 8 | 250000146 | Truss Head Torx Screw K50 X 16 | 8 |
| 2 | 250000371 | Torx Screw M6 X 30 Stainless | 2 |
| 4 | 250000544 | Torx Screw M8 X 30 | 4 |
| 4 | 250100143 | Extruded Panel Nut M4 X 0.7 | 4 |
| 4 | 269501943 | Elastic Nut Housing M8 | 4 |
| 24 | 293150089 | Tuflok Plastic Rivet | 24 |
| 2 | 293250242 | Rubber Cover | 2 |
| 293450274 | Insert | ||
| 2 | 293830005 | Rubber Bumper | 2 |
| 4 | 517124300 | Washer | 4 |
| 8 | 517302785 | Edge Clip | 8 |
| 2 | 705002408 | Red Reflector Model-Nord America/International | 2 |
| 4 | 705003264 | Grommet | 4 |
| 1 | 705003444 | Engine Cover | 1 |
| 1 | 715001552 | Dash Support Kit Model-North America | 1 |
| 1 | 715002245 | Dash Support Kit Model-Europe/International | 1 |
| 1 | 705005239 | Magnesium LH Lateral Pannel Model-Magnesium | 1 |
| 1 | 705006045 | White LH Lateral Panel Model-White | 1 |
| 1 | 705005243 | Magnesium RH Pannel Model-Magnesium | 1 |
| 1 | 705006046 | White RH Lateral Panel Model-White | 1 |
| 1 | 705003914 | LH Front Mudguard | 1 |
| 1 | 705003915 | RH Front Mudguard | 1 |
| 1 | 705003918 | LH Rear Mudguard | 1 |
| 1 | 705003920 | RH Rear Mudguard | 1 |
| 1 | 705003921 | LH Rear Mudguard, Part 2 | 1 |
| 1 | 705003922 | RH Rear Mudguard, Part 2 | 1 |
| 1 | 705004147 | LH Extension Pannel | 1 |
| 705005018 | Front Bumper | ||
| 1 | 705006700 | LH Support Ass'y | 1 |
| 1 | 705006701 | RH Support Ass'y | 1 |
| 1 | 715001897 | LH Extension Panel | 1 |
| 1 | 705004348 | RH Extension Panel | 1 |
| 1 | 715001854 | Rear Center Panel Kit | 1 |
| 2 | 705004409 | Cap (Front LH) (Rear RH) | 2 |
| 2 | 705004410 | Cap (Front RH) (Rear LH) | 2 |
| 2 | 705004497 | Ring | 2 |
| 1 | 705004523 | Lugage Rack Moulding | 1 |
| 1 | 705004558 | RH Inner Fender | 1 |
| 1 | 705004557 | LH Inner Fender | 1 |
| 2 | 705004565 | Lower Fender Support | 2 |
| 1 | 705004587 | RH Inner Fender | 1 |
| 1 | 705004588 | LH Inner Fender | 1 |
| 4 | 705004987 | Bracket Cover | 4 |
| 1 | 705005003 | Shiftgate Trim Model-Europe | 1 |
| 1 | 705005094 | LH Bracket | 1 |
| 1 | 705005095 | RH Bracket | 1 |
| 1 | 705005254 | LH. Footboard | 1 |
| 1 | 705005253 | RH. Footboard | 1 |
| 1 | 705005257 | Indicator Model-Nord America/International | 1 |
| 1 | 705005260 | Indicator Model-Europe | 1 |
| 2 | 705005469 | Tube | 2 |
| 2 | 705005470 | Tube | 2 |
| 1 | 705006299 | Front Guard Plate Model-Nord America/International | 1 |
| 1 | 705006300 | Front Guard Plate Model-Europe | 1 |
| 1 | 705006322 | Gauge Support | 1 |
| 1 | 705006643 | LH Rear Facia Model-Nord America/International | 1 |
| 1 | 705006650 | RH Rear Facia Model-Nord America/International | 1 |
| 1 | 705006651 | LH Rear Facia Model-Europe | 1 |
| 1 | 705006652 | RH Rear Facia Model-Europe | 1 |
| 1 | 715001765 | Dash Kit Model-Nord America | 1 |
| 1 | 705006812 | Cargo Rack Center Support | 1 |
| 1 | 705006870 | Heat Shield | 1 |
| 1 | 705006871 | Heat Shield | 1 |
| 1 | 705003525 | LH Footrest Max | 1 |
| 1 | 705003521 | RH Footrest Max | 1 |
| 1 | 705007041 | Front Facia | 1 |
| 1 | 705007277 | LH Support | 1 |
| 1 | 705007278 | RH Support | 1 |
| 1 | 705007553 | Central Skid Plate | 1 |
| 3 | 708000759 | Rubber Stopper | 3 |
| 1 | 715001549 | Magnesium Hood Kit Model-Magnesium Nord America | 1 |
| 1 | 715001845 | White Hood Kit Model-White Nord America | 1 |
| 1 | 715002297 | White Hood Kit Model-White Europe | 1 |
| 1 | 715002297 | White Hood Kit Model-White International | 1 |
| 8 | 732610072 | Push Nut | 8 |
| 1 | 715002252 | Magnesium LH Front Fender Kit Model-Magnesium Nord America | 1 |
| 1 | 715002257 | White LH Front Fender Kit Model-White Nord America | 1 |
| 1 | 715002258 | WHITE LH FRONT FENDER KIT Model-White Europe | 1 |
| 1 | 715002258 | WHITE LH FRONT FENDER KIT Model-White nternational | 1 |
| 1 | 715001785 | Magnesium RH Front Fender Kit Model-Magnesium Nord America | 1 |
| 1 | 715001761 | White RH Front Fender Kit Model-White Nord America | 1 |
| 1 | 715002265 | White RH Front Fender Kit Model-White Europe | 1 |
| 1 | 715002265 | White RH Front Fender Kit Model-White International | 1 |
| 16 | 250000646 | Black, Torx Screw M6 X 35 | 16 |
| 2 | 207567044 | Hex. Flange Screw M6x70, Scotch Grip | 2 |
| 1 | 715001806 | Magnesium LH Rear Fender Kit Model-Magnesium Nord America | 1 |
| 1 | 715001808 | White LH Rear Fender Kit Model-White Nord America | 1 |
| 715002287 | WHITE LH REAR FENDER KIT Model-White Europe | ||
| 1 | 715002289 | White LH Rear Fender Kit Model-White International | 1 |
| 1 | 715001819 | Magnesium RH Rear Fender Kit Model-Magnesium Nord America | 1 |
| 1 | 715001839 | White RH Rear Fender Kit Model-White Nord America | 1 |
| 1 | 715002296 | WHITE RH REAR FENDER KIT Model-White Europe | 1 |
| 1 | 715002296 | WHITE RH REAR FENDER KIT Model-White International | 1 |
| 705005019 | Black Bumper | ||
| 1 | 705007896 | LH Rear Bracket | 1 |
| 1 | 705007897 | RH Rear Bracket | 1 |
| 18 | 241141340 | Hex. Screw K40 X 13 | 18 |
| 2 | 715001852 | Luggage Rack Kit Model-Nord America | 2 |
| 2 | 715002240 | Rack Kit Model-International | 2 |
| 2 | 715002240 | Rack Kit Model-Europe | 2 |
