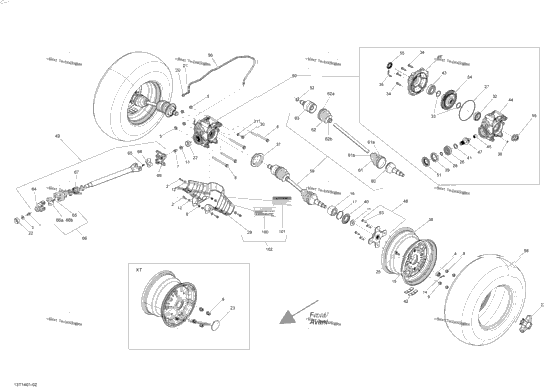

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip | 1 |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 | 4 |
| 1 | 211200041 | Washer | 1 |
| 2 | 250100047 | Hex. Castellated Nut M18 | 2 |
| 4 | 233201436 | Hex. Flange Elastic Nut M10 | 4 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 4 |
| 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP | ||
| 4 | 250000508 | Hex. Flange Screw M10 x 135 | 4 |
| 8 | 250100042 | Steel Wheel Nut STD | 8 |
| 8 | 250100082 | Chrome Wheel Nut M10 X 1.25 XT | 8 |
| 2 | 250200049 | Spring Washer | 2 |
| 4 | 250200082 | Flat Washer | 4 |
| 1 | 250200102 | Flat Washer M12 | 1 |
| 2 | 250400036 | Cotter Pin | 2 |
| 2 | 293000110 | Valve Cap | 2 |
| 2 | 293350040 | Cone Bearing | 2 |
| 2 | 293370019 | Circlip | 2 |
| 1 | 293720029 | Grommet | 1 |
| 1 | 414580600 | Elbow Male Connector | 1 |
| 2 | 705400036 | Wear Ring | 2 |
| 2 | 705400563 | Wheel Cap STD | 2 |
| 2 | 705400680 | Wheel Cap XT | 2 |
| 2 | 705400193 | Rim Valve With Cap | 2 |
| 1 | 705500260 | Ball Bearing | 1 |
| 1 | 705500265 | Seal | 1 |
| 1 | 705500267 | O-Ring | 1 |
| 1 | 703500722 | Protector Kit | 1 |
| 1 | 705500504 | Fill Level Plug | 1 |
| 1 | 705500506 | Copper Washer | 1 |
| 2 | 705500749 | Ball Bearing | 2 |
| 1 | 703500548 | Differential Shim Kit | 1 |
| 4 | 705500892 | SCREW | 4 |
| 1 | 705500893 | VENT VALVE | 1 |
| 1 | 705500894 | Drain Plug | 1 |
| 2 | 705501124 | Wear Ring | 2 |
| 2 | 705500986 | RIM_12 INCH X 7,5 XT | 2 |
| 2 | 705501607 | Black, Rim STD | 2 |
| 1 | 705500987 | Nut | 1 |
| 2 | 705501121 | Wear Sleeve | 2 |
| 1 | 703500049 | Pinion Shim Kit | 1 |
| 1 | 705501162 | Pinion Gear Shim | 1 |
| 1 | 219704465 | 1/2 OZ Weight | 1 |
| 1 | 705501389 | Ball Bearing | 1 |
| 1 | 705501395 | PINION REAR COVER | 1 |
| 1 | 705501408 | Needle Bearing | 1 |
| 1 | 705501393 | Rear Cover | 1 |
| 1 | 705501570 | 10 Teeth Pinion | 1 |
| 2 | 705501713 | LH Wheel Hub Assembly | 2 |
| 1 | 703500825 | Rear Propeller Shaft Outlander | 1 |
| 1 | 703500826 | Rear Propeller Shaft Outlander MAX | 1 |
| 1 | 705501997 | Rear Differential Ass'y | 1 |
| 1 | 705401481 | Oil Seal | 1 |
| 1 | 705501781 | Circlip | 1 |
| 4 | 250300055 | Wheel Stud M10 X 1.25 | 4 |
| 1 | 705501403 | 36 Teeth Pinion | 1 |
| 2 | 705501996 | Oil Seal | 2 |
| 1 | 219704410 | Was 415080200 Hose, Polyurethane | 1 |
| 705500933 | TIRE_25X11R12 REAR XT Except Europe | ||
| 2 | 705500598 | Rear Tire XT Europe | 2 |
| 2 | 705500934 | Rear Tire STD Europe | 2 |
| 2 | 705500385 | Rear Tire STD Except Europe | 2 |
| 1 | 705501486 | RH Rear - Premium CV Axle | 1 |
| 1 | 705501485 | LH Rear - Premium CV Axle | 1 |
| 1 | 705501776 | CV Joint | 1 |
| 2 | 705501777 | Rubber Boot Kit Includes 61 to 61b | 2 |
| 2 | 715900241 | Oetiker Clamp, 82.1 mm | 2 |
| 2 | 715900242 | Oetiker Clamp, 27.3 mm | 2 |
| 2 | 705501777 | Rubber Boot Kit Includes 62 to 62b | 2 |
| 705501780 | PLUNGING JOINT | ||
| 1 | 715900116 | Fixed Yoke Joint | 1 |
| 1 | 703500813 | GREASE FITTING | 1 |
| 1 | 703500814 | Unit Pack Kit | 1 |
| 1 | 715900183 | U-Joint | 1 |
| 715900117 | SNAP RING | ||
| 1 | 715900118 | Rubber Boot | 1 |
| 1 | 715500371 | Universal Joint | 1 |
| 1 | 715900107 | DISC JOINT | 1 |
| 1 | 704900766 | Warning Decal-English-Trailer | 1 |
| 1 | 704901489 | Warning Decal, Maximum Towing | 1 |
