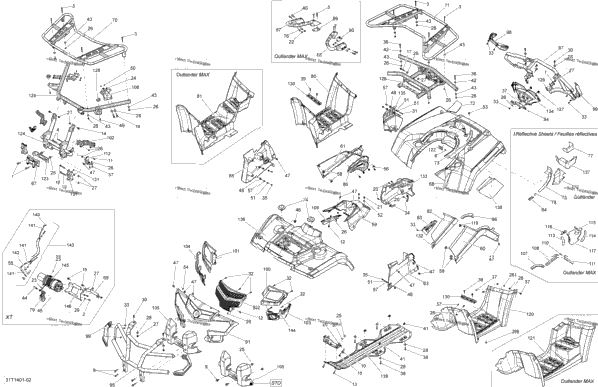

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 205003544 | Socket Screw M10 X 35 Model-XT | 2 |
| 4 | 205082044 | Socket Head Screw M8 X 20 Model-XT | 4 |
| 8 | 207065544 | Hex. Screw M6 X 55 | 8 |
| 4 | 207066044 | Hex. Screw M6 X 60 | 4 |
| 1 | 207083544 | Hex. Screw M8 X 35 | 1 |
| 2 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip | 2 |
| 4 | 207582084 | Hex. Flange Screw M8 X 20, Scotch Grip Model-XT | 4 |
| 4 | 207584044 | Hex. Flange Screw M8 X 40, Scotch Grip Model-XT | 4 |
| 1 | 207602544 | Hex. Flange Screw M10 X 25 Model-STD | 1 |
| 2 | 207603044 | Hex. Flange Screw M10 X 30 | 2 |
| 1 | 207661644 | Hex. Flange Screw M6 X 16 | 1 |
| 1 | 207662044 | Hex. Flange Screw M6 X 20 | 1 |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 | 2 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 4 | 207682544 | Hex. Flange Screw M8 X 25 Model-XT | 4 |
| 4 | 207684544 | Hex. Flange Screw M8 X 45 | 4 |
| 1 | 207685044 | Hex. Flange Screw M8 X 50 | 1 |
| 2 | 207686044 | Hex. Flange Screw M8 x 60 Model-XT | 2 |
| 2 | 207787044 | Carriage Bolt M8 X 70 Model-XT | 2 |
| 5 | 210261280 | Hex. Flange Screw M6 X 12 | 5 |
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 232081494 | HEX. NUT | ||
| 2 | 232561414 | Elastic Stop Nut M6 Model-XT | 2 |
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 | 4 |
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 1 |
| 1 | 233281414 | Hex. Flange Elastic Nut M8 Model-XT | 1 |
| 1 | 234082410 | Flat Washer 8 mm | 1 |
| 4 | 234181401 | Lock Washer 8 mm Model-XT | 4 |
| 4 | 235482584 | TORX SCREW M8 X 25 Model-XT | 4 |
| 2 | 241154540 | Hex. Screw K50 X 45 | 2 |
| 11 | 250000101 | Plastite Screw Type K-40, M4 X 25 | 11 |
| 1 | 250000113 | Screw M4 X 16, Type K-40 Model-XT | 1 |
| 2 | 705003646 | Engine Cover Support | 2 |
| 3 | 250000146 | Truss Head Torx Screw K50 X 16 | 3 |
| 2 | 250000239 | Torx Truss Screw M6 X 50 | 2 |
| 18 | 250000261 | Torx Screw M6 X 16 | 18 |
| 4 | 250000283 | Torx Screw M8 X 25, Scotch Grip | 4 |
| 1 | 250000435 | Hex. Flange Screw M6 X 25 | 1 |
| 4 | 250000441 | TORX SCREW M8 X 35 | 4 |
| 4 | 250100111 | Panel Nut M8 | 4 |
| 2 | 250200040 | Flat Washer | 2 |
| 10 | 250200072 | Flat Washer | 10 |
| 1 | 250400021 | Clevis Pin Model-XT | 1 |
| 1 | 250400022 | Cotter Pin Model-XT | 1 |
| 1 | 293000103 | PLASTIC CAP | 1 |
| 1 | 293150089 | Tuflok Plastic Rivet | 1 |
| 5 | 293720053 | Grommet | 5 |
| 2 | 365901100 | HEX. SCREW 12 X 3/4 | 2 |
| 4 | 390402300 | Pop Rivet 3/16" | 4 |
| 7 | 391301600 | Washer | 7 |
| 2 | 250200082 | Flat Washer | 2 |
| 1 | 414859400 | Cap | 1 |
| 2 | 506151252 | Washer | 2 |
| 1 | 515175919 | Protector Cap Model-XT | 1 |
| 9 | 517302785 | Edge Clip | 9 |
| 5 | 517303439 | Knob | 5 |
| 8 | 705000321 | Oval Washer | 8 |
| 1 | 715000789 | BLACK DASH-BOARD KIT | 1 |
| 1 | 705003484 | PANEL_BODY LH B-176 Model-Red | 1 |
| 705003483 | PANEL_BODY LH B-190 Model-Yellow | ||
| 1 | 705003679 | RED RH SIDE PANEL Model-Red | 1 |
| 1 | 705003678 | PANEL_BODY RH B-190 Model-Yellow | 1 |
| 1 | 705000652 | LH Inner Fender | 1 |
| 1 | 705000809 | Reflective Sheet | 1 |
| 1 | 715000011 | Winch Roller Model-XT | 1 |
| 715002335 | Red Rear Fender Kit Model-Red North America | ||
| 1 | 715002343 | RED REAR FENDER KIT Model-Red Europe | 1 |
| 1 | 715002339 | RED REAR FENDER KIT Model-Red International | 1 |
| 715002337 | Yellow Rear Fender Kit Model-Yellow North America | ||
| 715002345 | YELLOW REAR FENDER KIT Model-Yellow Europe | ||
| 1 | 715002341 | YELLOW REAR FENDER KIT Model-Yellow International | 1 |
| 1 | 705001460 | BLACK WINCH BRACKET Model-XT | 1 |
| 1 | 705002616 | Front Luggage Rack | 1 |
| 1 | 705002617 | Rear Luggage Rack | 1 |
| 1 | 705001910 | Black LH Cap | 1 |
| 1 | 705002952 | Yellow Storage Tray Model-Yellow | 1 |
| 1 | 705002954 | RED STORAGE TRAY Model-Red | 1 |
| 2 | 705001999 | FRONT CAP | 2 |
| 1 | 705002085 | Reflective Sheet | 1 |
| 4 | 705002153 | Bushing | 4 |
| 1 | 705002191 | Reflective Sheet | 1 |
| XXX | Not Available As Spare Parts | ||
| 1 | 705002329 | Hook Model-XT | 1 |
| 1 | 705002487 | RH Footboard | 1 |
| 705002491 | Reflective Sheet | ||
| 1 | 705002493 | CONSOLE CAP | 1 |
| 1 | 705002499 | SUPPORT Model-Europe | 1 |
| 1 | 705002640 | Inner Fender | 1 |
| 1 | 705002664 | MUFFLER COVER | 1 |
| 1 | 705002699 | RH HANDLE | 1 |
| 1 | 705002700 | LH HANDLE | 1 |
| 1 | 705002760 | RH FIXATION PLATE | 1 |
| 1 | 705002762 | LH FIXATION PLATE | 1 |
| 1 | 705002778 | YELLOW FRONT FASCIA Model-Yellow | 1 |
| 1 | 705003080 | RED FRONT FASCIA Model-Red | 1 |
| 1 | 705002779 | UPPER GRILL | 1 |
| 1 | 705002812 | Front Bumber Model-XT | 1 |
| 1 | 705002806 | Rear Bumber Model-XT | 1 |
| 2 | 705002802 | LH Front Cap Model-XT | 2 |
| 2 | 705002803 | RH Front Cap Model-XT | 2 |
| 1 | 705002825 | LH Head Lamp Support | 1 |
| 1 | 705002826 | RH Head Lamp Support | 1 |
| 1 | 705002925 | LH Facia Support | 1 |
| 1 | 705002926 | RH FACIA SUPPORT | 1 |
| 1 | 705002780 | LH LOWER FRONT FACIA Model-North America/International | 1 |
| 1 | 705002889 | LH LOWER FRONT FACIA Model-Europe | 1 |
| 1 | 705002781 | RH LOWER FRONT FACIA Model-North America/International | 1 |
| 1 | 705002890 | RH LOWER FRONT FACIA Model-Europe | 1 |
| 1 | 705003495 | GUARD PLATE Model-STD | 1 |
| 1 | 705003496 | GUARD PLATE Model-XT | 1 |
| 1 | 705002995 | LH ANCHOR PLATE | 1 |
| 1 | 705002997 | RH Anchor Plate | 1 |
| 1 | 705003004 | REFLECTIVE SHEET | 1 |
| 1 | 705003005 | REFLECTIVE SHEET | 1 |
| 1 | 705001529 | LEVER INDICATOR Model-North America/International | 1 |
| 1 | 705003028 | LEVER INDICATOR Model-Europe | 1 |
| 705003033 | Reflective Sheet | ||
| 1 | 705003034 | REFLECTIVE SHEET | 1 |
| 1 | 705003037 | LH LOWER FACIA SUPPORT | 1 |
| 1 | 705003039 | RH LOWER FACIA SUPPORT | 1 |
| 1 | 705003082 | REFLECTIVE SHEET | 1 |
| 1 | 705003083 | REFLECTIVE SHEET | 1 |
| 1 | 705003084 | REFLECTIVE SHEET | 1 |
| 1 | 705003085 | REFLECTIVE SHEET | 1 |
| 1 | 705003086 | REFLECTIVE SHEET | 1 |
| 705003087 | REFLECTIVE SHEET | ||
| 2 | 705003264 | Grommet | 2 |
| 1 | 705003633 | LH Footboard | 1 |
| 2 | 705003647 | U Reinforcement | 2 |
| 705003649 | WINCH BRACKET Model-XT | ||
| 1 | 705003654 | FRONT BUMPER | 1 |
| 1 | 705003655 | FRONT SUPPORT | 1 |
| 1 | 705003656 | Rear Support | 1 |
| 2 | 705003666 | Rubber Grommet | 2 |
| 2 | 705003667 | RUBBER CAP | 2 |
| 705003796 | LINK PLATE Model-XT | ||
| 4 | 705003648 | Footrest | 4 |
| 2 | 705003828 | BUMPER BRACKET Model-XT | 2 |
| 1 | 705003830 | Reflective Sheet | 1 |
| 1 | 705003837 | Engine Cover | 1 |
| 1 | 705003840 | Rear Facia Model-XT | 1 |
| 1 | 705004036 | Thread Cover | 1 |
| 1 | 715002329 | Red Front Fender Kit Model-Red North America | 1 |
| 1 | 715002331 | RED FRONT FENDER KIT Model-Red Europe | 1 |
| 1 | 715002331 | RED FRONT FENDER KIT Model-Red International | 1 |
| 1 | 715002330 | Yellow Front Fender Kit Model-Yellow North America | 1 |
| 1 | 715002333 | YELLOW FRONT FENDER KIT Model-Yellow Europe | 1 |
| 1 | 715002333 | YELLOW FRONT FENDER KIT Model-Yellow International | 1 |
| 1 | 705005888 | Reflective Sheet | 1 |
| 1 | 705005889 | REFLECTIVE SHEET Model-Europe | 1 |
| 715000688 | PLATE_SKID CTRL. KIT | ||
| 710000476 | OPEN BARREL, 6.6 MM Model-XT | ||
| 1 | 219704447 | Was 710000483 Heat Shrink Tubing Model-XT | 1 |
| 1 | 710000506 | Open Barell Model-XT | 1 |
| 1 | 710001251 | WINCH CABLE ASS'Y Model-XT | 1 |
| 2 | 732610072 | Push Nut | 2 |
| 705003296 | WINCH Model-XT | ||
| 1 | 705004278 | BLACK MOUNTING PLATE Model-XT | 1 |
