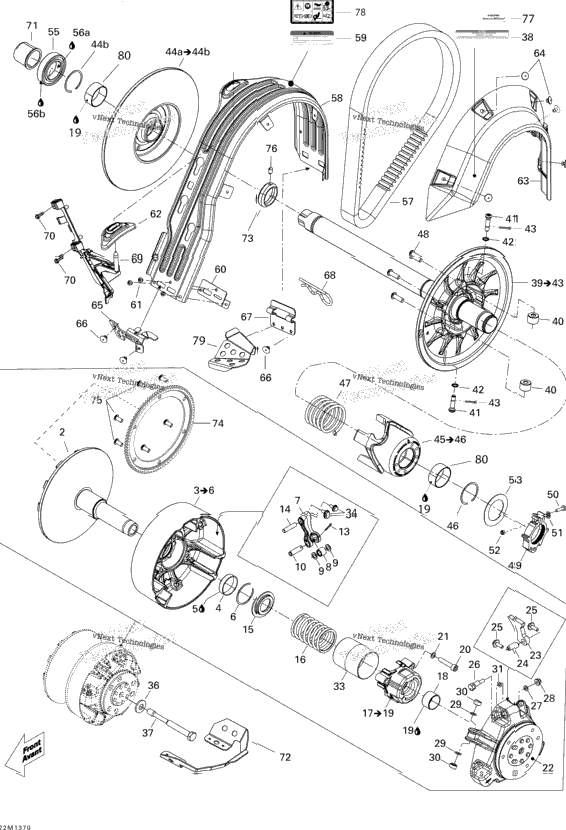

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Drive Pulley Ass'y | ||
| 1 | 417222937 | Fixed Flange Ass'y | 1 |
| 1 | 417222181 | Sliding Flange Ass'y | 1 |
| 1 | 417223086 | Bushing | 1 |
| 293800118 | ADHESIVE LOCTITE 680 | ||
| 1 | 219704458 | Was 293800041 Loctite Primer 7649 | 1 |
| 1 | 293370037 | Circlip | 1 |
| 3 | 417222671 | Lever | 3 |
| 3 | 417222947 | Roller | 3 |
| 6 | 417004302 | Stopper Washer | 6 |
| 1 | 417222594 | Pin | 1 |
| 3 | 250400060 | Cotter Pin | 3 |
| 3 | 417223164 | Lever Axle | 3 |
| 1 | 417222312 | Spring Seat | 1 |
| 1 | 414993000 | Tra Spring | 1 |
| 1 | 417007500 | Spring Cover Ass'y | 1 |
| 1 | 417009204 | Bushing | 1 |
| 1 | 413703100 | Loctite 609, 10 ml | 1 |
| 3 | 205084044 | Socket Head Screw M8 X 1.25 X 40 | 3 |
| 3 | 250200009 | Lock Washer 8 mm | 3 |
| 1 | 417223441 | GOVERNOR CUP ASS'Y | 1 |
| 3 | 417222444 | Ramp 600 | 3 |
| 3 | 250400050 | Spring Pin M10 X 22 | 3 |
| 6 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip | 6 |
| 3 | 417223501 | Calibration Screw | 3 |
| 3 | 234061410 | Flat Washer 6 mm | 3 |
| M33026 | Hex. Flange Nut M6 | ||
| 6 | 732401030 | O-Ring | 6 |
| 6 | 417223021 | Slider Shoe | 6 |
| 3 | 417005600 | Washer | 3 |
| 1 | 417009205 | Guard | 1 |
| 6 | 250000416 | Serrated Hex. Flange Bolt M6 | 6 |
| 1 | 250200006 | Spring Washer 14 mm | 1 |
| 1 | 417120000 | Drive Pulley Bolt | 1 |
| 1 | 516005503 | Decal English | 1 |
| 1 | 417127198 | Fixed Flange Ass'y Includes 38 to 43 | 1 |
| 2 | 417127189 | Roller | 2 |
| 2 | 417127294 | Pivot Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 250400061 | Spring Pin M3 X 18 | 2 |
| 1 | 417126955 | Sliding Flange Ass'y Includes 44 to 45 | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127205 | Cam Ass'y Includes 46 to 47 | 1 |
| 1 | 417127243 | Spring, White | 1 |
| 4 | 250000283 | Torx Screw M8 X 25, Scotch Grip | 4 |
| 1 | 415129604 | Calibration Ass'y | 1 |
| 1 | 205052544 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 1 | 504152574 | Ball Bearing | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 417300383 | Drive Belt | 1 |
| 1 | 417300382 | Belt Guard | 1 |
| 516004649 | Security label, Belt Guard | ||
| 1 | 417300380 | Reinforcement | 1 |
| 2 | 390909200 | Avex Rivet | 2 |
| 1 | 417300381 | Guide | 1 |
| 1 | 417300356 | Side Protector | 1 |
| 5 | 293150103 | Pop Rivet 3/16" | 5 |
| 1 | 417300364 | Belt Guard Bracket | 1 |
| 4 | 293150104 | Pop Rivet 3/16" | 4 |
| 1 | 417300363 | Belt Guard Bracket | 1 |
| 1 | 114045200 | Hair Pin | 1 |
| 1 | 417300396 | BELT GUARD BRACKET | 1 |
| 2 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 2 |
| 1 | 504153054 | Protective Rubber | 1 |
| 1 | 518326566 | PULLEY COVER PLATE | 1 |
| 417300419 | RETAINER RING | ||
| 1 | 417223042 | Ring Gear | 1 |
| 6 | 250000243 | Torx Screw M8 X 16, Scotch Grip | 6 |
| 417127203 | SOCKET SET SCREW M6X6 DIN 916 | ||
| 1 | 516003919 | Warning Decal EU models | 1 |
| 1 | 518325626 | Brake Hose Cover | 1 |
| 2 | 417127000 | Bushing | 2 |
| 1 | 417223021 | Slider Shoe | 1 |
