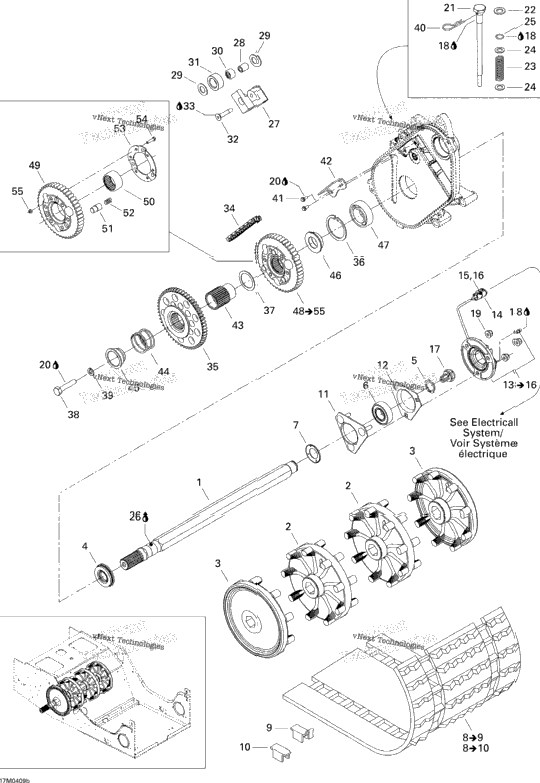

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 501027400 | DRIVE AXLE | 1 |
| 504151781 | SPROCKET, 9 TEETH | ||
| 2 | 504151782 | HALF SPROCKET, 9 TEETH | 2 |
| 1 | 504151918 | Oil Seal Ass'y | 1 |
| 371910200 | CIRCLIP | ||
| 1 | 504152009 | Ball Bearing | 1 |
| 1 | 501017400 | BEARING PROTECTOR | 1 |
| 1 | 504151802 | Track 15” X 121” X 0.88” Ass'y Includes items 8 to 10 / SE & Sport (Track 15" x 121" x 0,88) | 1 |
| 1 | 504151804 | Track 15” X 136” X 0.88” Ass'y Includes items 8 to 10 / SE G.T. & Sport G.T. (Track 15" x 136" x 0,88) | 1 |
| 504152028 | Track Ass’Y (15”X136"X 1.250") Includes items 8 to 9 / SE G.T. Europe (Track 15" x 136" x 1,250") | ||
| 54 | 500003400 | Guide Cleat SE & Sport (Track 15" x 121" x 0,88) | 54 |
| 54 | 500003400 | Guide Cleat SE G.T. & Sport G.T. (Track 15" x 136" x 0,88) | 54 |
| 36 | 500003400 | Guide Cleat SE G.T. Europe (Track 15" x 136" x 1,250") | 36 |
| 54 | 504151828 | Cleat SE & Sport (Track 15" x 121" x 0,88) | 54 |
| 54 | 504151828 | Cleat SE G.T. & Sport G.T. (Track 15" x 136" x 0,88) | 54 |
| 1 | 504151860 | BEARING HOUSING | 1 |
| 501025000 | FLANGE | ||
| 1 | 504152173 | FLANGE, SPEEDO Includes items 13 to 16 | 1 |
| 1 | 515175671 | FEMALE TERMINAL HOUSING, 3 CIRCUITS | 1 |
| 1 | 278000632 | Female Terminal | 1 |
| 1 | 515175676 | Female Lock, 3 Circuits | 1 |
| 504152040 | MAGNETIC ADAPTOR | ||
| 219700417 | SYNTHETIC GREASE, 400 G | ||
| 3 | 233281414 | Hex. Flange Elastic Nut M8 | 3 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 504151946 | Adjustment Screw | ||
| 1 | 503189148 | Washer | 1 |
| 1 | 504151945 | SPRING | 1 |
| 2 | 503125900 | HARD WASHER | 2 |
| 1 | 504151954 | O-RING | 1 |
| 504151940 | Chain Tensioner | ||
| 1 | 504080200 | SPACER | 1 |
| 2 | 504080300 | WASHER | 2 |
| 1 | 405403000 | NEEDLE BEARING | 1 |
| 414531300 | ROLLER | ||
| 1 | 732601144 | SCREW | 1 |
| 1 | 504151857 | Drive Chain, 74 Links | 1 |
| 1 | 504096800 | SLIDING GEAR, 56 TEETH | 1 |
| 415064300 | CIRCLIP, INTERIOR | ||
| 1 | 504094300 | WASHER | 1 |
| 1 | 207005044 | Hex. Screw M10 X 1.5 X 50 | 1 |
| 234100602 | WASHER-LOCK SPRING DIN.128A-A2 | ||
| 1 | 414575600 | Hair Pin | 1 |
| 2 | 210251180 | HEX. FLANGED SCREW M5 X 11 | 2 |
| 504152036 | SLIDER CHAIN | ||
| 504097700 | Coupling Axle | ||
| 1 | 504096600 | Release Spring | 1 |
| 1 | 504151964 | CAP | 1 |
| 1 | 504076300 | RETAINING RING | 1 |
| 504152005 | BALL BEARING | ||
| 1 | 581096800 | SPROCK ASSY, 44 TEETH Includes items 48 to 55 | 1 |
| 504084400 | Sprocket, 44 Teeth | ||
| 1 | 414772600 | NEEDLE BEARING | 1 |
| 504076800 | DRIVE PIN | ||
| 3 | 414772700 | SPRING | 3 |
| 504076100 | RETAINER RING | ||
| 6 | 207152044 | Hex. Screw M5 X 20 | 6 |
| 6 | 233551416 | NUT-LOCK SPRING DIN.980V | 6 |
