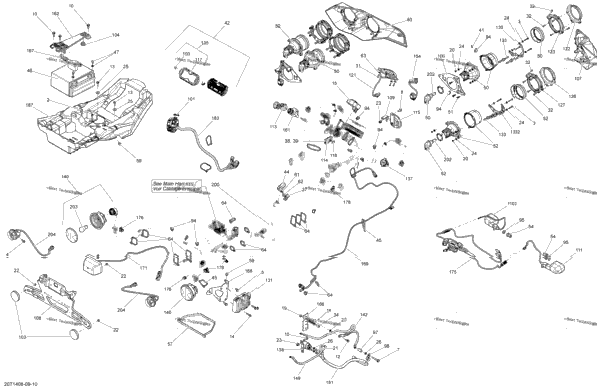

| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip | 2 |
| 12 | 207142544 | Hex. Screw M4 X 25 | 12 |
| 2 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 2 |
| 3 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 3 |
| 1 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip | 1 |
| 1 | 207661644 | Hex. Flange Screw M6 X 16 | 1 |
| 4 | 207662084 | Hex. Flange Screw M6 X 20 | 4 |
| 1 | 210261680 | Hex. Flange Screw M6 X 16 | 1 |
| 2 | 210262080 | Hex. Forming Screw M6 X 20 | 2 |
| 2 | 210262580 | Hex. Flange Forming Screw M6 X 25 | 2 |
| 1 | 710003239 | Flasher Unit | 1 |
| 5 | 224061121 | Flat Washer | 5 |
| 1 | 232361493 | Domed Nut M6 | 1 |
| 12 | 232541414 | Elastic Stop Nut M4 | 12 |
| 3 | 232561414 | Elastic Stop Nut M6 | 3 |
| 4 | 233251414 | Hex. Flange Elastic Nut M5 | 4 |
| 2 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 | 2 |
| 24 | 234051410 | Flat Washer M5 | 24 |
| 2 | 234062670 | Stainless Steel Flat Washer | 2 |
| 1 | 234161601 | Lock Washer Helical M6 | 1 |
| 2 | 234161601 | Lock Washer Helical M6 | 2 |
| 1 | 234461608 | External Serrated Lock Washer 6 mm | 1 |
| 3 | 241641040 | Phillips Screw K40 X 10 | 3 |
| 22 | 250000084 | Phillips Screw K40 X 16 | 22 |
| 1 | 250000223 | Torx Screw M6 X 16 | 1 |
| 1 | 270000141 | Clip | 1 |
| 3 | 278000216 | Wire Seal | 3 |
| 1 | 278000281 | Female Terminal Housing, 3 Circuits | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 710003851 | Speedometer | 1 |
| 1 | 710003006 | Housing | 1 |
| 1 | 293750008 | Tie Wrap 368 mm | 1 |
| 1 | 410301203 | Battery Ass'y, 18 Amperes | 1 |
| 1 | 295500849 | Battery Fastener Kit | 1 |
| 2 | 710002524 | Low Beam Ass'y | 2 |
| 6 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 | 6 |
| 2 | 710002525 | High Beam Ass'y | 2 |
| 1 | 705004508 | LH Front Facia | 1 |
| 2 | 710001826 | Cap Guard | 2 |
| 1 | 293750041 | Tie-rap 627 mm | 1 |
| 2 | 293830005 | Rubber Bumper | 2 |
| 1 | 390402300 | Pop Rivet 3/16" | 1 |
| 1 | 391301600 | Washer | 1 |
| 3 | 250200081 | Flat Washer | 3 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 7 | 414227300 | Clip | 7 |
| 2 | 503175800 | Washer | 2 |
| 1 | 517203200 | Spacer | 1 |
| 1 | 518321570 | Open Clamp | 1 |
| 1 | 704901270 | BRP Logo 13 mm | 1 |
| 704901835 | DPS Label | ||
| 2 | 705002408 | Red Reflector | 2 |
| 1 | 705003666 | Rubber Grommet | 1 |
| 2 | 705004309 | Painted Headlamp Support | 2 |
| 1 | 705004509 | RH Front Facia | 1 |
| 1 | 708300553 | Plate Support | 1 |
| 1 | 709200284 | Support | 1 |
| 710000546 | Flasher | ||
| 710000547 | Flasher | ||
| 2 | 710000817 | Black, Electronic Key Europe | 2 |
| 2 | 710002183 | Grey, Electronic Key Except Europe | 2 |
| 1 | 710000917 | Connector Ass'y | 1 |
| 1 | 710000983 | Horn | 1 |
| 1 | 710000992 | Clip | 1 |
| 1 | 710001183 | Trim Ring Ass'y | 1 |
| 1 | 710001042 | Day Light | 1 |
| 1 | 710001081 | RH Low Front Housing | 1 |
| 1 | 710001083 | LH Low Front Housing | 1 |
| 1 | 710001082 | RH Low Rear Housing | 1 |
| 1 | 710001084 | LH Low Rear Housing | 1 |
| 1 | 710001085 | RH High Front Housing | 1 |
| 1 | 710001087 | LH High Front Housing | 1 |
| 1 | 710001086 | RH High Rear Housing | 1 |
| 1 | 710001088 | LH High Rear Housing | 1 |
| 1 | 710001037 | LH Low Light Support | 1 |
| 1 | 710001094 | RH Low Light Support | 1 |
| 1 | 710001103 | Voltage Regulator STD Except Europe | 1 |
| 1 | 710001191 | Voltage Regulator XXC Except Europe | 1 |
| 1 | 710001191 | Voltage Regulator Europe | 1 |
| 1 | 710001036 | LH High Light Support | 1 |
| 1 | 710001115 | RH High Light Support | 1 |
| 8 | 710001147 | Setting Screw | 8 |
| 1 | 710001248 | DC Outlet | 1 |
| 1 | 710001364 | Starter Relay | 1 |
| 2 | 710001645 | Tail Light Ass'y | 2 |
| 1 | 710001747 | Ground Cable Ass'y | 1 |
| 1 | 710001749 | Positive Cable | 1 |
| 1 | 710001750 | POSITIVE CABLE | 1 |
| 2 | 710001757 | Harness Ass'y | 2 |
| 1 | 710002327 | Ignition Switch | 1 |
| 1 | 710002404 | Fixation Plate | 1 |
| 1 | 710002567 | BRACKET | 1 |
| 1 | 710002569 | Cap | 1 |
| 1 | 710002587 | Rectifier Support | 1 |
| 1 | 710002613 | Brake Harness | 1 |
| 1 | 710002721 | Licence Light | 1 |
| 710002804 | Harness Ass'y | ||
| 1 | 710002896 | Tie-Rap Clip | 1 |
| 1 | 710003037 | Multi-Function Handle Europe | 1 |
| 1 | 710003062 | Multi-Function Handle XXC Except Europe | 1 |
| 1 | 710003063 | Multi-Fonction Handle STD Except Europe | 1 |
| 1 | 710003325 | Battery Support | 1 |
| 1 | 710003626 | Harness Ass'y | 1 |
| 2 | 415129249 | Halogen Bulb | 2 |
| 2 | 520000758 | Bulb | 2 |
| 2 | 710002964 | Flasher | 2 |
