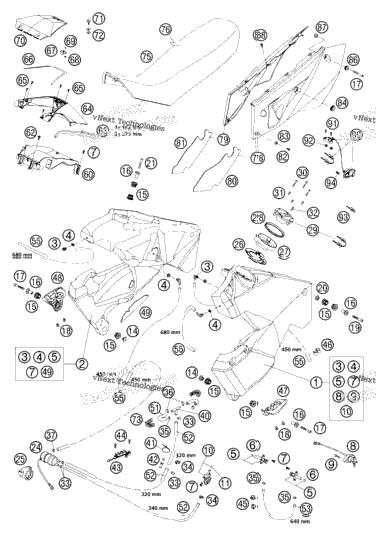

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 6000701304406 | FUEL TANK L/S CPL. BLUE 04 | ||
| 6000701304430 | FUEL TANK L/S CPL. BLACK 04 | ||
| 6000701304470 | FUEL TANK L/S CPL. ORANGE 03 | ||
| 6000701304484 | FUEL TANK L/S CPL. SILVER 03 (DECAL TAKE IN) | ||
| 6000711304406 | FUEL TANK R/S CPL. BLUE 04 (DECAL TAKE IN) | ||
| 6000711304430 | FUEL TANK R/S CPL. BLACK 04 (DECAL TAKE IN) | ||
| 6000711304470 | FUEL TANK R/S CPL. ORANGE 03 | ||
| 6000711304484 | FUEL TANK R/S CPL. SILVER 03 (DECAL TAKE IN) | ||
| 4 | 60007024000 | CONNECT.PIECE F.OVERFLOW M7 03 | 4 |
| 4 | 60007024050 | GASKET FOR CONNECTING PIECE 03 | 4 |
| 2 | 58507003000 | FUEL COCK CPL. SM. RALLYE'96 | 2 |
| 2 | 55007006200 | O-RING 11X1,8 NBR 70 | 2 |
| 8 | 0015060123 | HH COLLAR SCREW M 6X12 WS=8 | 8 |
| 1 | 58207080000 | GAS-LEVEL SENSOR ADV. 2002 | 1 |
| 2 | 0912050163 | AH SCREW DIN0912-M 5X16 | 2 |
| 1 | 50307005000 | GAS COCK MIKUNI ON/OFF 2001 | 1 |
| 1 | 0770130023 | O-RING 13,00X2,30 | 1 |
| 2 | 60007062000 | BEAR.BUSH.INSIDE L=15,5MM 03 | 2 |
| 12 | 60007065000 | TANK RUBBER BUSHING 03 | 12 |
| 6 | 60007060000 | BEARING BUSHING OUTSIDE 03 | 6 |
| 4 | 0912080553 | AH SCREW DIN912 M8X55 | 4 |
| 4 | 0014060133 | HH COLLAR SCREW M 6X13 WS=8 | 4 |
| 2 | 0912080503 | AH SCREW DIN912 M8X50 | 2 |
| 2 | 60007061000 | BEARING BUSHING INSIDE 03 | 2 |
| 2 | 0912080403 | SHCS DIN 912 M8x40 | 2 |
| 60012088100 | FUEL PUMP 04 | ||
| 60012088050 | FUEL PUMP HOLDER 03 | ||
| 60007008051 | SEAL. FLANGE F.TANK INSERT 03 | ||
| 1 | 60007008050 | TANK INSERT L/S | 1 |
| 1 | 60007108050 | TANK INSERT R/S | 1 |
| 2 | 60007008052 | SEAL. RING F. TANK INSERT 03 | 2 |
| 60007008000 | TANK PLUG CPL. 03 | ||
| 6 | 0912050303 | AH SCREW DIN0912-M 5X30 | 6 |
| 6 | 0912050083 | SHCS DIN 912 M5x8 | 6 |
| 2 | 0912050123 | AH SCREW DIN0912-M 5X12 | 2 |
| 4 | 00050153706 | VARIABLE ONE-EAR CLAMP 15,3MM | 4 |
| 2 | 00049140121 | CLAMP STD DN14 | 2 |
| 4 | 58031005000 | CLAMP YDNAC 10128 12MM | 4 |
| 2 | 00050140706 | VARIABLE ONE-EAR CLAMP 14,0MM | 2 |
| 1 | 58007117000 | YDNAC-CLAMP 10107 10MM | 1 |
| 60007015000 | T-CONNECTOR 8MM 03 | ||
| 1 | 44011076200 | CABLE TIE 200/3,6MM BLACK | 1 |
| 60007015010 | HOSE CONNECTOR 8MM 03 | ||
| 60011057000 | HOSE HOLDER TRIPLE 03 | ||
| 2 | 0081500181 | SCREW FOR PLASTIC D=5X18 | 2 |
| 2 | 57013072100 | WIRING HOLDER 16MM | 2 |
| 1 | 55011022100 | CLAMP D=6/8MM, BLACK | 1 |
| 60007013050 | TANK PROTECTOR L/S 03 | ||
| 60007113050 | TANK PROTECTOR R/S 03 | ||
| 1 | 60007095000 | THERMAL PROT.FOIL TANK R/S 03 | 1 |
| 60007016000 | FUEL PREFORMED HOSE 03 | ||
| 1 | 60007016001 | HOSE 7,5X13,5 PER METER | 1 |
| 1 | 60007116001 | HOSE 6X12 PER METER | 1 |
| 1 | 60007026001 | HOSE NBR 5,4X9,4 PER METER | 1 |
| 60007023000 | STORAGE BOX BOTTOM PART 03 | ||
| 2 | 0014060153 | HH COLLAR SCREW M 6X15 WS=8 | 2 |
| 1 | 58312085100 | EDGE PROTECTOR PER METER | 1 |
| 6000701900004 | STOR. BOX CENT.PART ORANGE 04 | ||
| 6000701900030 | STOR. BOX CENT PART BLACK 04 (ADVENTURE BLACK) | ||
| 6000701900070 | STOR. BOX CENT. PART ORANGE 03 | ||
| 6000701900084 | STOR. BOX CENT. PART SILVER 03 | ||
| 6 | 0016050121 | SCREW FOR PLASTIC 50X12 | 6 |
| 60007019050 | GASKET F.STOR.BOX CENT.PART 03 | ||
| 1 | 45007040050 | QUICK RELEASE LATCHPLATE | 1 |
| 2 | 0021030003 | WASHER DIN9021-A 3,2MM | 2 |
| 0011321000 | DUMMY RIVET 3,2X10 ALU | ||
| 6000702000004 | COVER F. STORAGE BOX ORG 04 | ||
| 6000702000030 | COVER F. STORAGE BOX BLACK 04 | ||
| 6000702000070 | COVER F. STORAGE BOX ORANGE 03 | ||
| 6000702000084 | COVER F. STORAGE BOX SILVER 03 (ADVENTURE SILVER) | ||
| 60007020030 | QUICK RELEASE PIN WITH RING 03 | ||
| 2 | 60007020040 | PLASTIC WASHER 03 | 2 |
| 60007016050 | PROTECTION SPRING FUEL HOSE | ||
| 60007040000 | SEAT 950 ADV. BLACK 03 | ||
| 6000704000004 | SEAT 950 ADV. ORANGE 04 | ||
| 60007040050 | SEAT COVER BLACK 03 | ||
| 6000704005004 | SEAT COVER ORANGE 04 | ||
| 6000804100006 | SIDE COVER L/S REAR BLUE 04 (DECAL TAKE IN) | ||
| 6000804100030 | SIDE COVER L/S REAR BLACK 04 | ||
| 6000804110070 | SIDE COVER L/S REAR ORANGE 04 | ||
| 6000804100084 | SIDE COVER L/S REAR SILVER 03 | ||
| 6000804200006 | SIDE COVER R/S REAR BLUE 04 (DECAL TAKE IN) | ||
| 6000804200030 | SIDE COVER R/S REAR BLACK 04 (DECAL TAKE IN) | ||
| 6000804210070 | SIDE COVER R/S REAR ORANGE 04 (DECAL TAKE IN) | ||
| 6000804200084 | SIDE COVER R/S REAR SILVER 03 | ||
| 60008041050 | THER.PROT.FOIL SI.COVER L/S 03 | ||
| 1 | 60008042050 | THER.PROT.FOIL SI.COVER R/S 03 | 1 |
| 2 | 0984060163 | AH SCREW DIN6912-M 6X16 | 2 |
| 2 | 60008045000 | SPECIAL WASHER D=16,5MM 03 | 2 |
| 1 | 58707050050 | RUBBER SLEEVE F.SEAT LOCK '99 | 1 |
| 2 | 41001052000 | RUBBER SLEEVE D=12MM | 2 |
| 2 | 60012008002 | COLLAR BUSHING 8,2X12X20X9 03 | 2 |
| 6 | 0017060203 | EJOT PT SCREW K60X20 WS=6 | 6 |
| 60007050000 | SEAT LOCK LC8 ADV. 03 | ||
| 2 | 0738060301 | COU.SUNK SCR. AH ISO7380 M6X30 | 2 |
| 60008013050 | DISTANCE BUSH. 7X12X18X3,7 03 | ||
| 1 | 40011166100 | KEY BLANK LC4/DUKE/LC8 | 1 |
