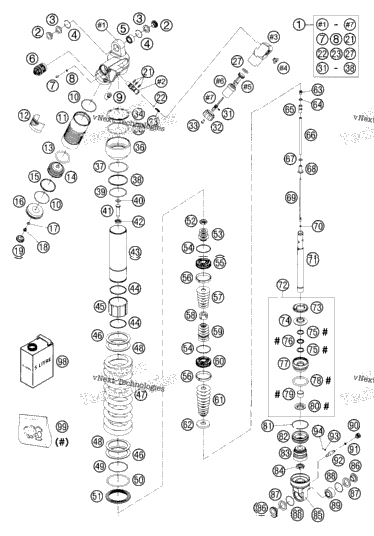

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1200Y002 | PRELOAD ADJUSTER 5018 LC8 04 | ||
| 50180366 | Bearing bush 14x15/18/24,5x10,45 | ||
| 2 | 46180003 | Seal ring 19,5x26x3 | 2 |
| 2 | 50180168 | Round-wire snap ring 25x1 | 2 |
| 1 | 50180005 | Ball joint bearing 15x25x13 | 1 |
| 50180213S4 | DCC-COMPR.DAMP.CONTROL CPL. 03 | ||
| 48600058 | Cross flat head screw M4x6 | ||
| 1 | 48600009 | O-ring 3,7x1,6 NBR70 | 1 |
| 1 | 50180095 | HS cylinder-head screw R1/8 l8 | 1 |
| 2 | 46810016 | O-ring 48x2 NBR70 siliconized | 2 |
| 50180237 | RESERVOIR SCREW L=123,5 D=52 | ||
| 52000044 | STICKER WP KTM | ||
| 1 | 46180014 | O-ring 41x5 Viton75 | 1 |
| 1 | 46180002 | Piston 52mm reservoir | 1 |
| 1 | 46180015 | Pistonring 47,5x50,5x3,9 | 1 |
| 50180344 | RESERVOIR CAP D=58 | ||
| 1 | 46810893 | O-ring 5,28x1,78 NBR70 black | 1 |
| 1 | 36120151 | HS lock screw M5x6 | 1 |
| 1 | 46811208 | Rubber cap do not open 22x5,5 NBR | 1 |
| 3 | 35480083 | O-ring 10x2 NBR70 siliconized yellow | 3 |
| 40540440 | Steel ball d5 | ||
| 46810332 | SPRING D=4,8 ADJUST KNOB CC | ||
| 46810003 | O-ring 17x3 NBR70 siliconized | ||
| 1 | 48600044 | O-ring 6x1,5 NBR70 | 1 |
| 50180381 | Adjuster PA black | ||
| 46811771 | HS flat head screw M5x10 | ||
| 50180370 | Washer 64,6x70x1,4 support ring | ||
| 50180369 | O-ring 63,09x3,53 NBR70 | ||
| 50180371 | PA outside ring 58,13/70x61,4/78x45 | ||
| 50180372 | O-ring 57,15x3,53 NBR70 | ||
| 50180373 | Washer 58x63,4x1,4 support ring | ||
| 1 | 50180097 | O-ring 52x2 NBR70 | 1 |
| 1 | 50180177 | Springwasher 8,2x16x0,6 | 1 |
| 50180300 | NEEDLE D=10 L=37 | ||
| 50180271 | SCREW CAP M20x1, D=11 | ||
| 50180367 | Tube 50x180 PDS | ||
| 50180133 | CIRCLIP 50X1,5 | ||
| 50180081 | Spring guide 54,15x60x40 | ||
| 2 | 50180114 | Intermediate washer spring 61,7x78x1,5 | 2 |
| 91210022 | SPRING 140-265 (62) D=15,0 | ||
| 91210028 | SPRING 140-255 (62) D=15,0 (ADVENTURE) | ||
| 50180402 | INTERM.RING SPRING RET. H=3,5 | ||
| 1 | 50180273 | Round-wire snap ring 58,5x2 | 1 |
| 1 | 50180352 | O-ring 66,27x1,78 Viton70 | 1 |
| 50180355 | SPRING RETAINER D=80 2003 | ||
| 50180141 | Piston rod nut 16x1 | ||
| 1 | 50180210 | Washer 16x21x1 | 1 |
| 1 | 50180209 | Shim 21x36x0,25 | 1 |
| 3 | 50180054 | Shim 16x28x0,2 | 3 |
| 2 | 50180099 | O-ring 44x,17x1,78 Viton70 | 2 |
| 1 | 50180197 | Piston 16,05x49,6x13,5 4,5/7 | 1 |
| 2 | 50180135 | Piston ring 47,95x49,95x8 | 2 |
| 1 | 50180074 | SHIM 16X32X0,30 | 1 |
| 1 | 50180075 | SHIM 16X34X0,30 | 1 |
| 1 | 50180076 | SHIM 16X36X0,30 | 1 |
| 1 | 50180068 | SHIM 16X38X0,25 | 1 |
| 1 | 50180069 | SHIM 16X40X0,25 | 1 |
| 1 | 50180070 | SHIM 16X42X0,25 | 1 |
| 1 | 50180062 | Shim 16X44X0,20 | 1 |
| 50180269 | SANDWICH BUSH D25XD16X14,5/D | ||
| 1 | 50180047 | Shim 16X32X0,15 | 1 |
| 1 | 46811637 | Shim 32,25x36x0,30 | 1 |
| 1 | 50180008 | SHIM 16X22X0,10 | 1 |
| 3 | 50180058 | Shim 16x36x0,20 | 3 |
| 1 | 50180057 | Shim 16x34x0,2 y5 | 1 |
| 1 | 50180056 | Shim 16x32x0,2 | 1 |
| 1 | 50180035 | Shim 16x21x0,30 | 1 |
| 1 | 50180311 | Piston 16x49,6x13,5 | 1 |
| 1 | 50180036 | Shim 16x22x0,30 | 1 |
| 1 | 50180064 | Shim 16x30x0,25 | 1 |
| 1 | 50180065 | SHIM 16X32X0,25 | 1 |
| 1 | 50180066 | SHIM 16X34X0,25 | 1 |
| 1 | 50180058 | Shim 16x36x0,20 | 1 |
| 1 | 50180059 | SHIM 16X38X0,20 | 1 |
| 2 | 50180071 | SHIM 16X44X0,25 | 2 |
| 50180161 | SHIM REBOUND H3 '99 | ||
| 50180401 | SHIM REBOUND H16 '03 | ||
| 50180200 | BUSH M8X1 | ||
| 1 | 50180157 | O-ring 7x1,5 Viton70 green | 1 |
| 50180201 | NEEDLE SEAT M8X1 | ||
| 50180363 | TUBE M8X1 L=138 | ||
| 1 | 48600049 | O-ring 8x2 NBR70 | 1 |
| 1 | 50180279 | Bush 5/8,2/7x9,5/16,8x23 | 1 |
| 50180364 | Needle 4x161 | ||
| 1 | 46811265 | O-ring 2,2x1,6 Viton75 green | 1 |
| 50180362 | PISTON ROD D=18 M16X1 | ||
| 50180349S1 | ADAPTOR CPL. D=50, H=28,5 | ||
| 1 | 50180107 | Rubber pad rebound 27x48x8 NBR80 | 1 |
| 50180304 | STEEL DISC 18,5X43,7X6 | ||
| 2 | 50180102 | Washer 18x22,5x1,5 plastic | 2 |
| 1 | 50180101 | X-ring 18x2,62 Viton70 | 1 |
| 50180349 | ADAPTOR D=50; H=28,5 | ||
| 1 | 50180103 | O-ring 41x5 NBR70 | 1 |
| 1 | 46180119 | Guide bushing 18x20x12 | 1 |
| 50180082 | Dirt scarper 18mm | ||
| 1 | 50180126 | Round-wire snap ring 53x1,75 | 1 |
| 50180165 | Cap 50,1x17,5 h6 | ||
| 1 | 50180276 | Rubber pad 17,2x45,2x40 black | 1 |
| 50180283 | HH locking nut M18x1 h5 WAF24 | ||
| 50180358 | Footpart M18x1 h54 natural | ||
| 2 | 50180365 | Bearing bush 14x16/21,8/29x14 | 2 |
| 50180159 | Seal ring 22x32x4 | ||
| 50180175 | Round-wire snap ring 32x1 | ||
| 50180179 | Ball joint bearing 16x32x21 | ||
| 1 | 50180281 | HH screw M14x9 | 1 |
| 1 | 50180222 | O-ring 4x1,5 NBR70 | 1 |
| 50180280 | ADJUSTING SCREW 80 DEG., L=39 | ||
| 1 | 40540602 | SPRING D=2,9, L=6,2 | 1 |
| 1 | 40540603 | Steel ball d3 | 1 |
| 1 | 50180342S1 | SHOCK ABSORBER FLUID 5 LT '03 | 1 |
| R12008 | REPAIR-KIT GASKET 5018 PDS 03 |
