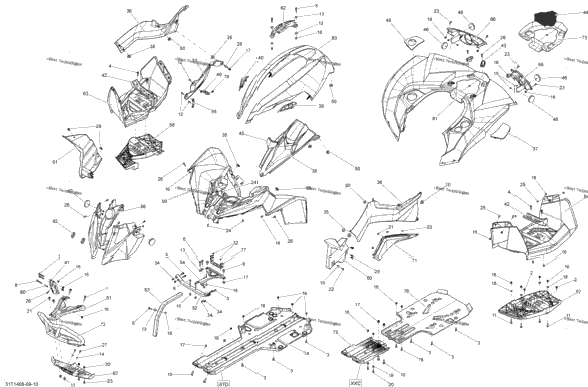

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 2 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip | 2 |
| 4 | 207661684 | Hex. Flange Screw M6 X 16 | 4 |
| 10 | 207662084 | Hex. Flange Screw M6 X 20 | 10 |
| 4 | 207662584 | Hex. Flange Screw M6 X 25 | 4 |
| 2 | 207663034 | Hex. Flange Screw M6 X 30 | 2 |
| 5 | 207663544 | Hex. Flange Screw M6 X 35 | 5 |
| 2 | 207664544 | Hex. Flange Screw M6 X 45 | 2 |
| 1 | 207665044 | Hex. Flange Screw M6 X 50 | 1 |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 | 2 |
| 2 | 207682544 | Hex. Flange Screw M8 X 25 | 2 |
| 8 | 207763044 | Carriage Bolt M6 X 30 | 8 |
| 3 | 210261280 | Hex. Flange Screw M6 X 12 | 3 |
| 7 | 224061201 | Flat Washer | 7 |
| 2 | 232862412 | Square Nut M6 | 2 |
| 1 | 233251434 | Flange Elastic Nut M5 | 1 |
| 45 | 233261434 | Flange Elastic Nut M6 | 45 |
| 1 | 233281434 | Hex. Flange Elastic Nut M8 | 1 |
| 8 | 234062410 | Flat Washer 6 mm | 8 |
| 1 | 234062670 | Stainless Steel Flat Washer | 1 |
| XXX | Not Available As Spare Parts | ||
| 2 | 250000117 | Torx Screw M8 X 20, Scotch Grip | 2 |
| 1 | 250000128 | Torx Truss Screw M6 X 20 | 1 |
| 6 | 250000129 | Torx Screw M6 X 16 | 6 |
| 6 | 250000146 | Truss Head Torx Screw K50 X 16 | 6 |
| 8 | 250000261 | Torx Screw M6 X 16 | 8 |
| 9 | 250000284 | Torx Screw M6 x 25 | 9 |
| 2 | 250000454 | Torx Screw M6 X 12 | 2 |
| 1 | 250300039 | Ball Head Stud | 1 |
| 4 | 293150089 | Tuflok Plastic Rivet | 4 |
| 293450232 | Insert M6 X 1.0 | ||
| 1 | 293830005 | Rubber Bumper | 1 |
| 2 | 390402400 | Pop Rivet 3/16" | 2 |
| 3 | 414479100 | Clip | 3 |
| 4 | 293450275 | Insert | 4 |
| 9 | 705000321 | Oval Washer | 9 |
| 1 | 705002958 | Black, LH Lateral Panel | 1 |
| 1 | 705002959 | Black, RH Side Panel | 1 |
| 1 | 705001910 | Black LH Cap | 1 |
| 1 | 705003556 | Dashboard | 1 |
| 1 | 705002276 | LH Grille | 1 |
| 1 | 705002277 | RH Grille | 1 |
| 1 | 705002282 | Support | 1 |
| 2 | 705002326 | Footrest | 2 |
| 4 | 705002342 | Hook | 4 |
| 1 | 705002343 | Rear Carpet | 1 |
| 1 | 705002353 | Cap Model-Nord America/International | 1 |
| 2 | 705002408 | Red Reflector Model-Nord America/International | 2 |
| 2 | 705002409 | Amber Reflector Model-Nord America/International | 2 |
| 1 | 705002420 | Neck Cap | 1 |
| 1 | 705002667 | Engine Cover Support | 1 |
| 6 | 705003264 | Grommet | 6 |
| 1 | 705003505 | Bumper Support | 1 |
| 1 | 705003510 | Body Tube | 1 |
| 1 | 705003511 | Front Tube | 1 |
| 1 | 705003599 | Bracket | 1 |
| 1 | 705003646 | Engine Cover Support | 1 |
| 1 | 705003948 | Front Facia | 1 |
| 1 | 705004176 | LH Footboard | 1 |
| 1 | 705004177 | RH Footboard | 1 |
| 1 | 715002157 | Yellow Front Fender Kit Model-STD Nord America | 1 |
| 1 | 715002158 | Yellow Front Fender Kit Model-STD Europe | 1 |
| 1 | 715002158 | Yellow Front Fender Kit Model-STD International | 1 |
| 1 | 705004307 | LH Inner Fender | 1 |
| 1 | 705004308 | RH INNER FENDER | 1 |
| 1 | 705003838 | Lever Indicator | 1 |
| 1 | 705004729 | RH Footboard/Fender | 1 |
| 1 | 705004730 | LH Footboard/Fender | 1 |
| 1 | 705004731 | LH Rear Facia Model-Nord America/International | 1 |
| 1 | 705004927 | LH Rear Facia Model-Europe | 1 |
| 1 | 705004732 | RH Rear Facia Model-Nord America/International | 1 |
| 1 | 705004926 | RH Rear Facia Model-Europe | 1 |
| 1 | 705004850 | Front Bumper Plate | 1 |
| 1 | 705004966 | Engine Cover | 1 |
| 1 | 705004988 | Panel Extension | 1 |
| 1 | 705004993 | Welded Front Bumper | 1 |
| 1 | 705005840 | Reflective Sheet | 1 |
| 1 | 705007553 | Central Skid Plate | 1 |
| 1 | 710002482 | Fuse Holder | 1 |
| 1 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip | 1 |
| 1 | 705005809 | Spacer | 1 |
| 1 | 715001881 | Yellow Rear Fender Kit Model-STD Nord America | 1 |
| 1 | 715002161 | YELLOW REAR FENDER KIT Model-STD Europe | 1 |
| 715002163 | Yellow Rear Fender Kit Model-STD International | ||
| 2 | 705003668 | Oblong Grommet | 2 |
| 1 | 715001493 | Yellow Central Pannel Kit Model-Nord America | 1 |
| 1 | 715002171 | Yellow Central Pannel Kit Model-International | 1 |
| 1 | 715002171 | Yellow Central Pannel Kit Model-Europe | 1 |
