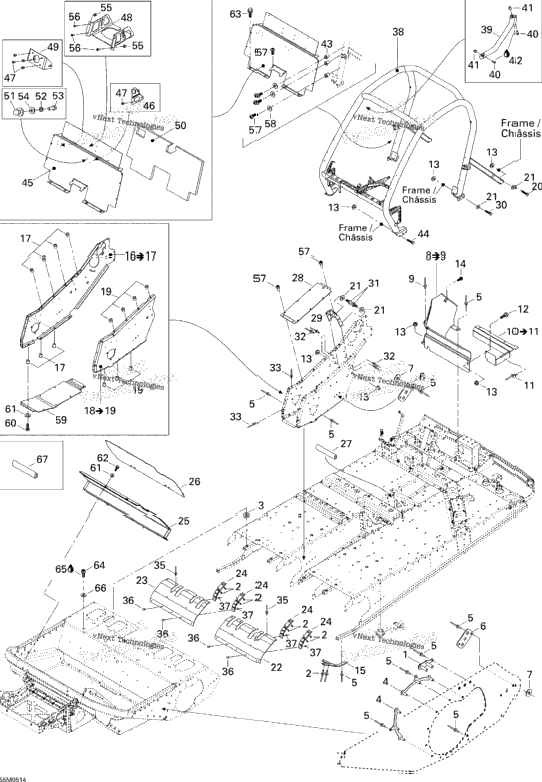

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 518323837 | Support | ||
| 26 | 390402300 | Pop Rivet 3/16" | 26 |
| 4 | 503189273 | Washer | 4 |
| 518323673 | Spacer | ||
| 64 | 390402200 | Pop Rivet 3/16" | 64 |
| 4 | 518201321 | REINFORCEMENT PLATE | 4 |
| 4 | 391301600 | Washer | 4 |
| 518324277 | Heat Deflector Includes 8 to 9 | ||
| 2 | 390402400 | Pop Rivet 3/16" | 2 |
| 514053939 | Deflector Includes 10 to 11 | ||
| 1 | 207682044 | Hex. Flange Screw M8 X 20 | 1 |
| 14 | 233281414 | Hex. Flange Elastic Nut M8 | 14 |
| 1 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip | 1 |
| 518323783 | Junction Plate RH | ||
| 518323784 | Junction Plate LH | ||
| XXXX | Not Available As Spare Part - RH Front Reinforcement Ass'y Includes 16 to 17 | ||
| 7 | 415107300 | Insert | 7 |
| XXXX | Not Available As Spare Part - LH Front Reinforcement Ass'y Includes 18 to 19 | ||
| 4 | 207684544 | Hex. Flange Screw M8 X 45 | 4 |
| 10 | 224081201 | FLAT WASHER | 10 |
| 518324684 | RH Deflector | ||
| 518324685 | LH Deflector | ||
| 518324720 | Protector | ||
| 518323941 | Footrest | ||
| 518324270 | Footrest Carpet | ||
| 517303385 | Black Trim | ||
| 518324128 | Belt Guard | ||
| 518323795 | Belt Support | ||
| 2 | 207682544 | Hex. Flange Screw M8 X 25 | 2 |
| 2 | 207183044 | Hex. Screw M8 X 30 | 2 |
| 4 | 293150120 | Hemlock Rivet 6.5 mm | 4 |
| 293150126 | Rivet 3/16" | ||
| 518323977 | Plastic Cap | ||
| 18 | 293150102 | Rivet 3/16" | 18 |
| 4 | 293150108 | Pop Rivet 3/16” | 4 |
| 6 | 517225900 | Flat Washer | 6 |
| 518323668 | Upper Frame | ||
| 518324227 | Handle | ||
| 2 | 205062044 | Socket Head Screw M6 X 20 | 2 |
| 2 | 415107300 | Insert | 2 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 6 | 415107300 | Insert | 6 |
| 4 | 207685044 | Hex. Flange Screw M8 X 50 | 4 |
| 518324023 | Lateral Reinforcement | ||
| 518323685 | Welded Plate | ||
| 6 | 293150102 | Rivet 3/16" | 6 |
| 518323700 | Coolant Tank Support | ||
| 518323661 | Front Belt Guard Support | ||
| 518323852 | Isolating Foam | ||
| 1 | 517245800 | Knob | 1 |
| 1 | 234151401 | Lock Washer 5 mm | 1 |
| 1 | 207151444 | Hex. Screw M5 X 14 | 1 |
| 1 | 391301700 | Washer | 1 |
| 4 | 415107300 | Insert | 4 |
| 4 | 250000172 | SOCKET HEAD SCREW M6 X 16 | 4 |
| 18 | 250000172 | SOCKET HEAD SCREW M6 X 16 | 18 |
| 6 | 250200029 | Washer M6 | 6 |
| 518322981 | Center Junction Plate | ||
| 8 | 207162044 | Hex. Screw M6 X 20 | 8 |
| 8 | 234161471 | Lock Washer M6, Black | 8 |
| 4 | 207661644 | Hex. Flange Screw M6 X 16 | 4 |
| 4 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip | 4 |
| 205481046 | Socket Screw M8 X 10 | ||
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 8 | 234082600 | Flat Washer 8 mm, Stainless | 8 |
