Интерактивное демо базы запчастей
Просматривайте запчасти для ATV, мотоциклов, снегоходов, водных моторов и другой техники по марке, году и модели. Каталог доступен для покупки в виде базы данных SQL с изображениями или для аренды.

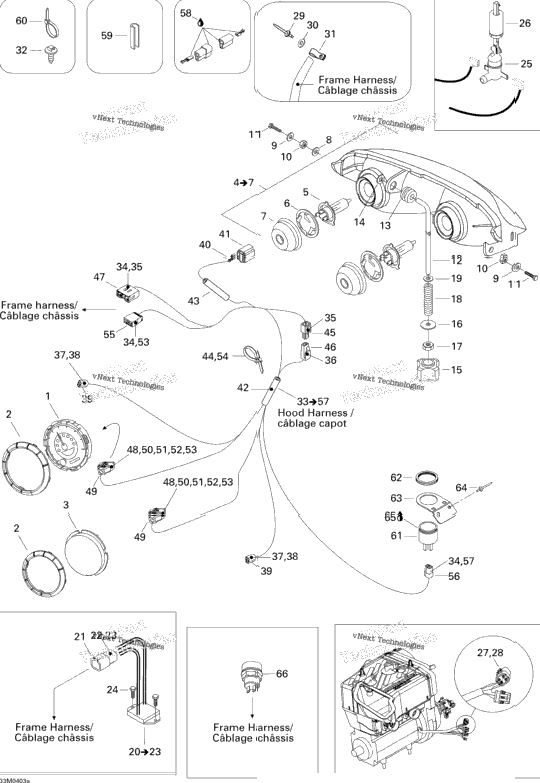

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 515175999 | Speedometer | ||
| 2 | 515175651 | Gauge Ring | 2 |
| 1 | 515175901 | GAUGE HOLE COVER | 1 |
| 1 | 515175909 | Halogen Headlamp INCLUDES 4 TO 7 | 1 |
| 2 | 410504401 | Halogen Bulb | 2 |
| 515175910 | BULB HOLDER | ||
| 515175911 | COVER | ||
| 1 | 234001410 | Flat Washer 10 mm | 1 |
| 2 | 234051410 | Flat Washer M5 | 2 |
| 2 | 250100018 | NUT M5 | 2 |
| 2 | 207053544 | Hex. Screw M5 X 35 | 2 |
| 1 | 517295800 | ADJUSTER ROD | 1 |
| 1 | 415100800 | Grommet | 1 |
| 1 | 732610072 | Push Nut | 1 |
| 1 | 515175548 | Handle | 1 |
| 1 | 224060251 | Washer | 1 |
| 1 | 232561414 | Elastic Stop Nut M6 | 1 |
| 1 | 415100600 | SPRING | 1 |
| 1 | 234061410 | Flat Washer 6 mm | 1 |
| 515175655 | VOLTAGE REGULATOR INCLUDES 20 TO 23 | ||
| 1 | 278001477 | FEMALE HOUSING, 4 CIRCUITS | 1 |
| 4 | 515175568 | Male Terminal | 4 |
| 1 | 278001478 | MALE WEDGE, 4 CIRCUITS | 1 |
| 2 | 210261680 | Hex. Flange Screw M6 X 16 | 2 |
| 414681800 | LEVEL SWITCH | ||
| 414681900 | Float | ||
| 1 | 278001473 | Female Terminal Housing, 4 Circuits | 1 |
| 1 | 278001474 | Female Lock, 4 Circuits | 1 |
| 2 | 390402200 | Pop Rivet 3/16" | 2 |
| 2 | 517225900 | Flat Washer | 2 |
| 2 | 415018200 | CLIP | 2 |
| 1 | 293730018 | Mount Dart | 1 |
| 515175984 | CAB WIRING HARNESS INCLUDES 33 TO 57 | ||
| 1 | 515175232 | Male Terminal | 1 |
| 1 | 515175273 | MALE TERMINAL | 1 |
| 1 | 515175282 | Female Terminal | 1 |
| 1 | 561503100 | FEMALE TERMINAL | 1 |
| 409204300 | Female Housing | ||
| 1 | 515175321 | FEMALE TERMINAL | 1 |
| 409202700 | FEMALE TERMINAL HOUSING, 3 CIRCUITS | ||
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 1 | 219704407 | Tubing 10 MM 1000MM Long | 1 |
| 1 | 293750001 | Tie Wrap 94 mm | 1 |
| 1 | 515175509 | MALE TERMINAL HOUSING, 1 CIRCUIT | 1 |
| 1 | 515175510 | FEMALE TERMINAL HOUSING, 1 CIRCUIT | 1 |
| 1 | 515175720 | MALE TERMINAL HOUSING, 11 CIRCUITS | 1 |
| 1 | 515175812 | Plug | 1 |
| 1 | 515175801 | Female Housing, 24 Circuits | 1 |
| 1 | 515175802 | Retainer Block | 1 |
| 1 | 515175803 | Wire Seal | 1 |
| 1 | 515175804 | BLOCK | 1 |
| 1 | 515175806 | Female Terminal | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 415128526 | Male Terminal Housing, 10 Circuits | ||
| 1 | 515176069 | MALE TERMINAL HOUSING, 3 CIRCUITS | 1 |
| 515176071 | Female Terminal | ||
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g | 1 |
| 1 | 219704353 | Protection Trim 1000mm Long | 1 |
| 24 | 414115200 | Tie-Rap 180 mm | 24 |
| 4 | 293750001 | Tie Wrap 94 mm | 4 |
| 2 | 293750009 | Tie-Rap 173 mm | 2 |
| 1 | 515176035 | HORN | 1 |
| 1 | 414805101 | PLASTIC NUT | 1 |
| 1 | 515175688 | PLATE | 1 |
| 1 | 296000309 | Silicone Sealant 51388, 300 ml | 1 |
| 1 | 415101200 | Push Button | 1 |
