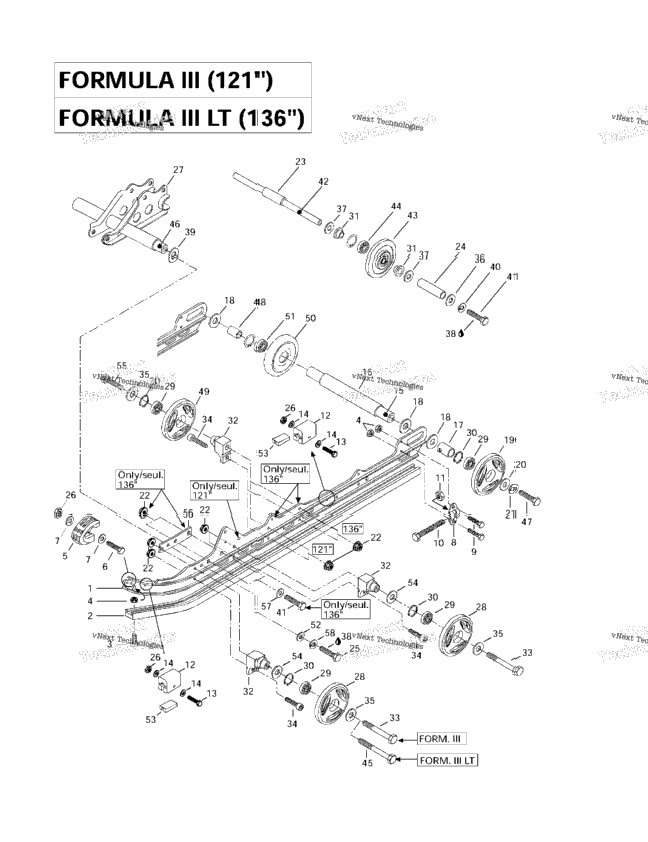

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 503174700 | Runner (121") Formula III. | ||
| 503171300 | Runner (136") Formula III-LT. | ||
| 2 | 560314800 | Runner Shoe (121") Formula III. | 2 |
| 2 | 560314900 | Runner Shoe (136") Formula III-LT. | 2 |
| 2 | 216362560 | Countersunk Phillips Screw M6 x 25 | 2 |
| 6 | 228561045 | Elastic Stop Nut M6 | 6 |
| 572075400 | RUNNER PROTECTOR | ||
| 222052565 | SCREW-HEX.CAP DIN.933 | ||
| 4 | 391301600 | Washer | 4 |
| 503155300 | Tensioner | ||
| 4 | 222062065 | Hex. Screw M6 x 20 | 4 |
| 732601017 | Hex. Screw M10 x 110 | ||
| 2 | 228501045 | Elastic Stop Nut M10 | 2 |
| 570063000 | Rubber Stopper | ||
| 222054065 | SCREW-HEX.CAP DIN.931 | ||
| 8 | 391301700 | Washer | 8 |
| 1 | 503160700 | Rear Axle | 1 |
| 503139500 | Interior Spacer Long | ||
| 2 | 503154800 | Outer Spacer | 2 |
| 4 | 504108200 | SHIM | 4 |
| 570045323 | Wheel 165 (Red) | ||
| 2 | 503171000 | Washer | 2 |
| 224701188 | WASHER-LOCK SPRING DIN.128A-A2 | ||
| 16 | 228781045 | Elastic Flange Stop Nut M8 | 16 |
| 503160100 | Center Spacer | ||
| 503160200 | External Spacer | ||
| 222023565 | SCREW-HEX.CAP M12 X 35 | ||
| 6 | 228551045 | Elastic Stop Nut M5 | 6 |
| 503158300 | Welded Shock Support Formula III. | ||
| 503173400 | Welded Shock Support Formula III-LT. | ||
| 570045223 | Idler Wheel 135 (Red) | ||
| 8 | 405404500 | Ball Bearing 6205 | 8 |
| 371901700 | CIRCLIP | ||
| 4 | 414888400 | Cushion | 4 |
| 503163600 | Support | ||
| 2 | 222088565 | Hex. Screw M8 x 85 | 2 |
| 6 | 222982565 | Socket Head Screw M8 x 25 | 6 |
| 517167800 | Washer | ||
| 503169900 | Washer (Black) | ||
| 4 | 503154000 | WASHER | 4 |
| 1 | 413707400 | Loctite 271, 10cc | 1 |
| 503175400 | Hardened Washer | ||
| 2 | 224781140 | Lock Washer 8 mm | 2 |
| 6 | 222083065 | Hex. Screw M8 x 30 | 6 |
| 503160000 | Wheel Support Axle | ||
| 2 | 572018900 | IDLER WHEEL Includes 43 - 44. | 2 |
| 2 | 405404500 | Ball Bearing 6205 | 2 |
| 2 | 222089065 | Hex. Screw M8 x 90 Formula III-LT. | 2 |
| 503174800 | Lower Axle Formula III. | ||
| 503174900 | Lower Axle Formula III-LT. | ||
| 732601002 | Hex. Screw | ||
| 503139600 | Interior Spacer Short | ||
| 2 | 570045222 | Wheel Bond 135 | 2 |
| 1 | 572045800 | Wheel 165 Includes 50 - 51. | 1 |
| 1 | 405404500 | Ball Bearing 6205 | 1 |
| 2 | 224021251 | Flat Washer 12 mm | 2 |
| 4 | 572084800 | Reinforcement Stopper | 4 |
| 503173700 | WASHER | ||
| 2 | 222088065 | Hex. Screw M8 x 80 | 2 |
| 503171200 | Reinforcement Plate Formula III-LT. | ||
| 4 | 224081171 | Flat Washer 8 mm Formula III-LT. | 4 |
| 224721218 | Lock Washer 12 mm |
