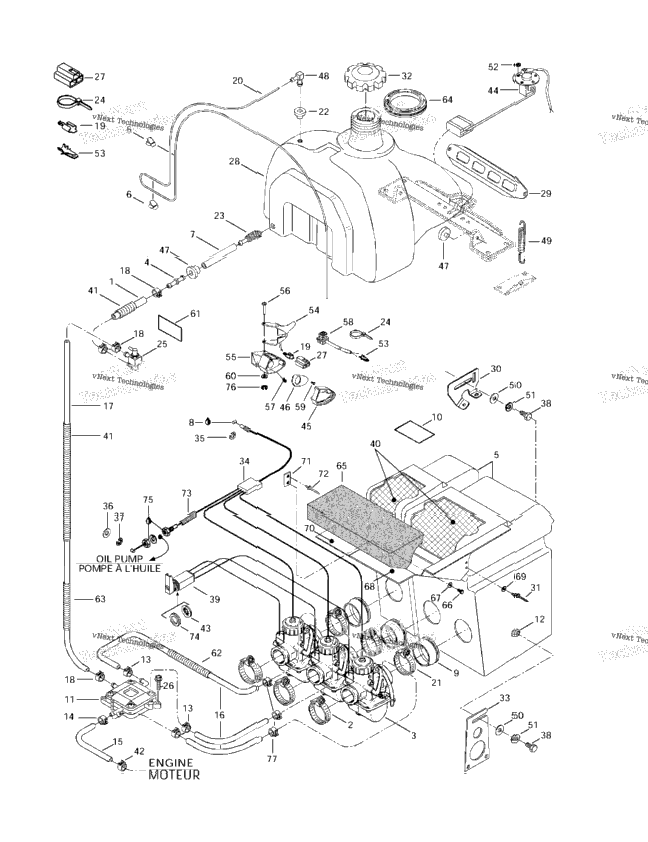

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 414933900 | Hose | ||
| 414532700 | COLLAR | ||
| 403128600 | VM 36-176 Carburetor | ||
| 1 | 414872700 | Male Connector | 1 |
| 580647600 | Air Silencer Ass'y 2 Holes (Incl. 9,10,12,31,40,68,69) | ||
| 580647700 | Air Silencer Ass'y 1 Hole (Incl. 9,12,31,40,69,70,71,72) | ||
| 2 | 414227300 | Clip | 2 |
| 1 | 415005700 | Hose | 1 |
| 413701700 | Dielectric Grease, 3 Oz | ||
| 570047000 | Intake Adaptor | ||
| 414161500 | Warning Decal | ||
| 403901100 | Fuel Pump (70 Liters) | ||
| 2 | 732610057 | JACK NUT M6 | 2 |
| 3 | 414554800 | Spring Clamp | 3 |
| 1 | 414415200 | Spring Clamp | 1 |
| 415063100 | Impulse Hose 6.35 mm | ||
| 1 | 219704410 | Polyurethane Hose 10000Mm Long | 1 |
| 219704411 | FUEL LINE 10000MM LONG | ||
| 4 | 414655700 | Spring Clamp | 4 |
| 561503200 | Female Terminal PACKARD | ||
| 414296900 | Fuel Line 3.18 mm | ||
| 414830100 | Clamp | ||
| 1 | 570135100 | Grommet | 1 |
| 1 | 414872100 | Fuel Filter Strainer | 1 |
| 1 | 414115200 | Tie-Rap 180 mm | 1 |
| 414872200 | Shut Off Valve | ||
| 2 | 732600005 | Hex. Screw Self Tapping M6 x 20 | 2 |
| 409008500 | Female Terminal Housing (3 circuits) | ||
| 572057100 | Fuel Tank | ||
| 517249200 | Fuel Tank Bracket | ||
| 518313900 | Internal Bracket | ||
| 390406600 | Rivet | ||
| 1 | 572073900 | Cap | 1 |
| 517252000 | External Bracket | ||
| 414966501 | Throttle Cable and Housing VM-36 | ||
| 1 | 414274500 | Circlip | 1 |
| 1 | 414753300 | Washer | 1 |
| 1 | 414753500 | Circlip | 1 |
| 2 | 222062065 | Hex. Screw M6 x 20 | 2 |
| 415006200 | Choke Cable | ||
| 572029103 | Air Filter Foam (1 Holes Silencer) | ||
| 572029007 | Air Filter Foam (2 Holes Silencer) | ||
| 1 | 219704408 | Tubing 16 Mm 1000Mm Long | 1 |
| 408801100 | SPRING CLIP | ||
| 394103300 | Lock Washer, Interior Teeth | ||
| 580651100 | Fuel Sender Ass'y | ||
| 1 | 572044600 | THROTTLE COVER | 1 |
| 1 | 572086800 | Plate | 1 |
| 3 | 570273900 | Grommet | 3 |
| 1 | 414814100 | Male Connector | 1 |
| 2 | 414893700 | Spring | 2 |
| 2 | 224061121 | Flat Washer | 2 |
| 2 | 224761110 | Lock Washer 6 mm | 2 |
| 5 | 228551045 | Elastic Stop Nut M5 | 5 |
| 561503400 | MALE TERMINAL (18/16 GA.) | ||
| 572090300 | Heat Throttle Handle Ass'y (38 mm) | ||
| 1 | 572086700 | Throttle Handle Housing | 1 |
| 1 | 414438700 | Lever Pin | 1 |
| 1 | 414440800 | Socket Set Screw M8 X 10 | 1 |
| 1 | 414612700 | Kill Switch | 1 |
| 1 | 414473200 | Screw | 1 |
| 1 | 414438900 | Washer | 1 |
| 414931500 | Security Label | ||
| 1 | 219704400 | Was 409901800 Tubing (13 mm) | 1 |
| 414942900 | Tubing | ||
| 570276900 | Rubber Ring | ||
| 415027600 | Air Filter | ||
| 222851465 | Screw M5 x 14 | ||
| 224151101 | WASHER-LOCK SERRATED DIN.6798A | ||
| 517284900 | Deflector (2 Holes Silencer) | ||
| 8 | 517225900 | Flat Washer | 8 |
| 517285000 | Deflector (1 Holes Silencer) | ||
| 517278500 | Plate | ||
| 1 | 390402400 | Pop Rivet 3/16" | 1 |
| 1 | 414977200 | Plastic Nut | 1 |
| 1 | 413703000 | Loctite 242, 10 cc | 1 |
| 1 | 414439000 | Circlip | 1 |
| 3 | 414420700 | Spring Clamp | 3 |
