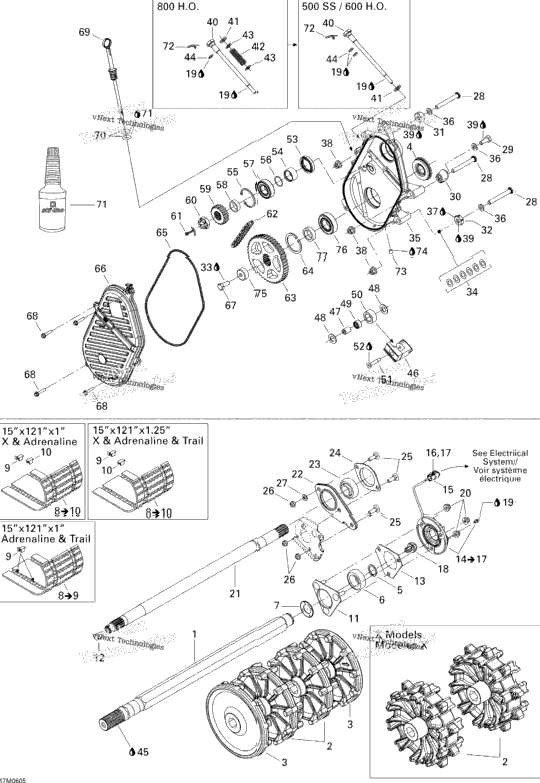

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 501027400 | DRIVE AXLE | 1 |
| 2 | 504152198 | SPROCKET, 10 TEETH 500/600/800 Adrenaline & 500 Trail | 2 |
| 2 | 504152199 | HALF SPROCKET, 10 TEETH 500/600/800 Adrenaline & 500 Trail | 2 |
| 1 | 504151918 | Oil Seal Ass'y | 1 |
| 371910200 | CIRCLIP | ||
| 1 | 504152009 | Ball Bearing | 1 |
| 1 | 501017400 | BEARING PROTECTOR | 1 |
| 504152446 | Track 15" X 121" X 1" Ass'y 800 X & 500/600/800 Adrenaline, Includes 8 to 10 | ||
| 1 | 504152558 | TRACK 15 X 121 X 1.25 ASS'Y 800 X & 500/600/800 Adrenaline & 500 Trail, Includes 8 to 10 | 1 |
| 1 | 504152484 | Track 15" X 121" X 1" Ass'y 500/600/800 Adrenaline & 500 Trail, Includes 8 to 9 | 1 |
| 32 | 504152410 | Guide | 32 |
| 64 | 500003300 | Cleat | 64 |
| 1 | 504151860 | BEARING HOUSING | 1 |
| 1 | 414784800 | CORK | 1 |
| 501025000 | FLANGE | ||
| 1 | 504152345 | Rotation Sensor Includes 14 to 17 | 1 |
| 1 | 515175671 | FEMALE TERMINAL HOUSING, 3 CIRCUITS | 1 |
| 1 | 278000632 | Female Terminal | 1 |
| 1 | 515175676 | Female Lock, 3 Circuits | 1 |
| 504152040 | MAGNETIC ADAPTOR | ||
| 219700417 | SYNTHETIC GREASE, 400 G | ||
| 3 | 233281414 | Hex. Flange Elastic Nut M8 | 3 |
| 504152018 | COUNTER SHAFT | ||
| 504151968 | SPACER | ||
| 1 | 504152535 | Ball Bearing | 1 |
| 1 | 501026900 | Flange | 1 |
| 3 | 207782544 | Carriage Bolt, M8 X 25 | 3 |
| 3 | 232581414 | Hex. Elastic Stop Nut M8 | 3 |
| 1 | 234081410 | Flat Washer 8 mm | 1 |
| 3 | 250000151 | HEX. SCREW M10 X 80 | 3 |
| 1 | 207102544 | Hex. Screw M10 X 25 | 1 |
| 504152252 | Spacer | ||
| 504083800 | Spacer | ||
| 1 | 504152237 | SPACER | 1 |
| 1 | 293800005 | Loctite 271, 10 ml | 1 |
| 6 | 504073700 | WASHER | 6 |
| 1 | 504152481 | CHAINCASE 500 SS / 600 H.O. | 1 |
| 3 | 503175800 | Washer | 3 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 3 | 233201414 | Hex. Flange Elastic Nut M10 | 3 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 1 | 732601314 | ADJUSTMENT SCREW 500 SS / 600 H.O. | 1 |
| 1 | 234001410 | Flat Washer 10 mm 500 SS / 600 H.O. | 1 |
| XXX | Not Available As Spare Parts | ||
| 2 | 414484400 | O-Ring 500 SS / 600 H.O. | 2 |
| 504151951 | Chain Tensioner 500 SS / 600 H.O. | ||
| 1 | 504080200 | SPACER | 1 |
| 2 | 504080300 | WASHER | 2 |
| 1 | 405403000 | NEEDLE BEARING | 1 |
| 414531300 | ROLLER | ||
| 1 | 732601144 | SCREW | 1 |
| 1 | 415049300 | Oil Seal | 1 |
| 507031500 | SPACER | ||
| 371901700 | CIRCLIP | ||
| 414876700 | O-RING | ||
| 1 | 504152006 | Ball Bearing | 1 |
| 1 | 504152587 | SHIM | 1 |
| 1 | 504091100 | Sprocket 22 Teeth Large 500 SS / 600 H.O. | 1 |
| 250000012 | HEX. CASTLE NUT M20 X 1.5 | ||
| 371006300 | PIN COTTER | ||
| 1 | 504151857 | Drive Chain, 74 Links 500 SS / 600 H.O. | 1 |
| 504148500 | 43 TEETH SPROCKET, LARGE 500 SS / 600 H.O. | ||
| 415064300 | CIRCLIP, INTERIOR | ||
| 1 | 415046400 | O-Ring | 1 |
| 1 | 504152471 | CHAINCASE COVER | 1 |
| 4 | 210263080 | Hex. Flange Screw M6 X 30 | 4 |
| 1 | 504151703 | FILLER CAP ASS'Y | 1 |
| 414969400 | O-RING | ||
| 413803300 | SYNTHETIC CHAINCASE OIL, 12 X 355 ML | ||
| 1 | 414575600 | Hair Pin | 1 |
| 1 | 504151921 | Plug 1/8”-27 | 1 |
| 1 | 219704455 | Was 293800018 Loctite 592, 50 ml | 1 |
| 504152460 | CAP | ||
| 504152005 | BALL BEARING | ||
| 504152058 | Shim |
