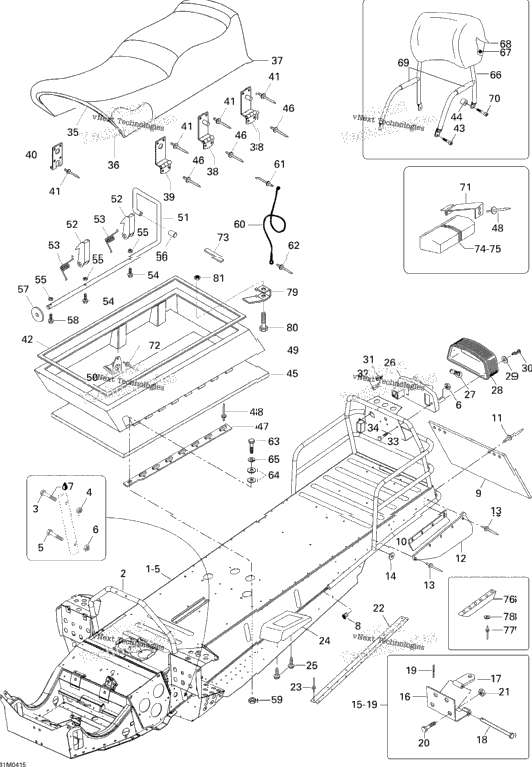

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 605148688 | Frame 550F SUV | ||
| 605149618 | Frame 600 SUV | ||
| 1 | 605150258 | HANDLE SUPPORT | 1 |
| 2 | 207063044 | Hex. Screw M6 X 30 | 2 |
| M33051 | Hex. Nut M6 | ||
| 2 | 207064044 | Hex. Screw M6 X 40 | 2 |
| 4 | M33200 | Nut M6 | 4 |
| 1 | 293800060 | Loctite 243, 10 ml | 1 |
| 2 | M28136 | PLUG | 2 |
| 1 | M538629 | Snow Guard | 1 |
| M5340532 | Support | ||
| 6 | M36036 | Black, Rivet | 6 |
| 2 | M5142828 | Lateral Snow Guard | 2 |
| M36097 | RIVET | ||
| 8 | M20037 | Washer | 8 |
| XXXX | Not Available As Spare Part - Hitch ass'y | ||
| 1 | M5344151 | Plaque *Plate-Clip | 1 |
| M548745 | HITCH PLATE | ||
| 1 | 560309200 | PIN-RETAINER | 1 |
| 1 | M41031 | Cheville *Pin | 1 |
| M40336 | SCREW M8 X 20 | ||
| 4 | 232581414 | Hex. Elastic Stop Nut M8 | 4 |
| 605348881 | ANTISLIPERRY RUNNING BAND 600 SUV | ||
| M36010 | Rivet 600 SUV | ||
| 414975300 | RH Rear Footrest 600 SUV | ||
| 414975400 | LH Rear Footrest 600 SUV | ||
| M40870 | SCREW-HEX.TAPING 600 SUV | ||
| 511000007 | Light Housing Ass. | ||
| 1 | 410504000 | Bulb, Tail Lamp | 1 |
| 414513700 | Lens | ||
| 2 | 414516400 | Washer | 2 |
| 2 | 414516300 | Screw | 2 |
| 3 | M42178 | Female Terminal | 3 |
| 3 | M42179 | Logement Femel.*Housing-Female | 3 |
| M5345713 | Adaptor | ||
| M519394 | Sub Seat | ||
| 605148623 | Foam Seat | ||
| 605149043 | COVER SEAT | ||
| M549874 | HINGE | ||
| 1 | M5440581 | HINGE | 1 |
| M549732 | Lock Plate | ||
| M36071 | Rivet | ||
| 1 | M5440059 | SEALING STRIP PROFIL | 1 |
| 2 | M40388 | SCREW-SOCKET | 2 |
| M5440665 | Spacer | ||
| M5344621 | Foam 550F SUV | ||
| M5346079 | Foam 600 SUV | ||
| M36489 | Rivet | ||
| M5144029 | RH Support | ||
| M5144028 | LH Support | ||
| 1 | M36083 | Rivet *Rivet | 1 |
| M5142066 | Welded Seat Base Weld | ||
| M5443661 | Support | ||
| M5344987 | Pivot Pin | ||
| M5443664 | Lock Tongue | ||
| 2 | M5444439 | SPRING | 2 |
| M40146 | Screw | ||
| 3 | 232541414 | Elastic Stop Nut M4 | 3 |
| M28019 | Cap | ||
| 1 | 234081410 | Flat Washer 8 mm | 1 |
| M40144 | Screw M4 X 16 | ||
| 2 | M33066 | NUT M6 | 2 |
| 1 | M546777 | Cable Retenue *Cable-Retainer 550F SUV | 1 |
| M5447746 | Retainer Cable 600 SUV | ||
| M36038 | Rivet | ||
| 1 | M36009 | Rivet *Rivet 550F SUV | 1 |
| M36103 | Rivet 600 SUV | ||
| M40052 | Socket Head Screw M6 X 20 | ||
| 4 | M20009 | Washer 6.4 Din 9021 | 4 |
| 2 | 234161471 | Lock Washer M6, Black | 2 |
| M5245664 | Backrest | ||
| M539399 | Backrest Foam | ||
| M5340917 | COVER-BACKREST | ||
| 415050300 | RH Grip, 250 mm | ||
| M40389 | Allen Screw | ||
| 1 | M5344443 | SPRING-HOLDER | 1 |
| 2 | M36009 | Rivet *Rivet | 2 |
| M39020 | Cushion 600 SUV | ||
| 529035500 | TOOL KIT | ||
| 572036310 | BOX COVER | ||
| 1 | 605349264 | PROTECTOR 550F SUV | 1 |
| 6 | M36005 | Rivet *Rivet 550F SUV | 6 |
| 6 | 234051410 | Flat Washer M5 550F SUV | 6 |
| M5444464 | Keeper Cable 550F SUV | ||
| M40149 | Screw M6 X 30 550F SUV | ||
| 1 | M33200 | Nut M6 550F SUV | 1 |
