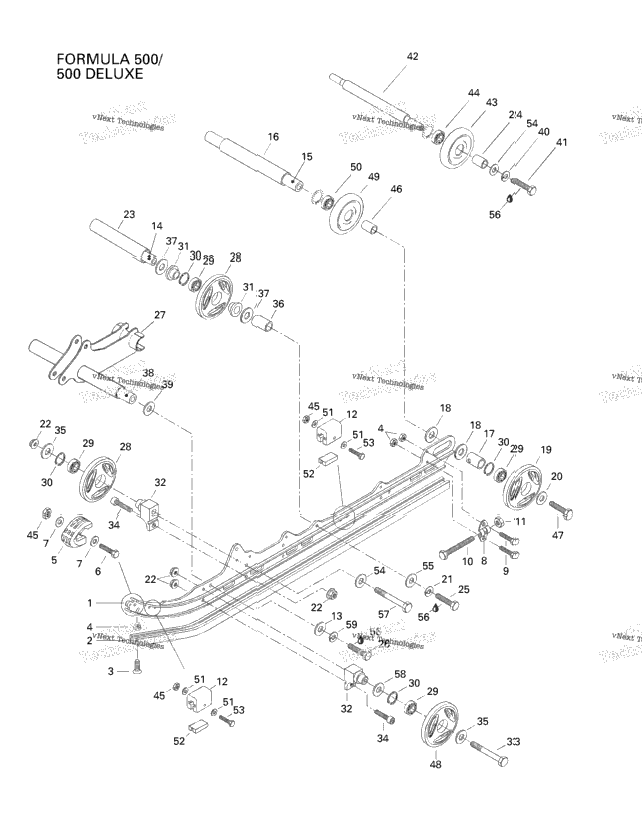

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 503175500 | Runner 121" Formula 500. Formula 500 Deluxe. | ||
| 2 | 560317100 | Runner Shoe 121" Formula 500. Formula 500 Deluxe. | 2 |
| 2 | 216362560 | Countersunk Phillips Screw M6 x 25 Formula 500. Formula 500 Deluxe. | 2 |
| 6 | 228561045 | Elastic Stop Nut M6 Formula 500. Formula 500 Deluxe. | 6 |
| 572075400 | RUNNER PROTECTOR Formula 500. Formula 500 Deluxe. | ||
| 222052565 | SCREW-HEX.CAP DIN.933 Formula 500. Formula 500 Deluxe. | ||
| 4 | 391301600 | Washer Formula 500. Formula 500 Deluxe. | 4 |
| 503155300 | Tensioner Formula 500. Formula 500 Deluxe. | ||
| 4 | 222062065 | Hex. Screw M6 x 20 Formula 500. Formula 500 Deluxe. | 4 |
| 732601017 | Hex. Screw M10 x 110 Formula 500. Formula 500 Deluxe. | ||
| 2 | 228501045 | Elastic Stop Nut M10 Formula 500. Formula 500 Deluxe. | 2 |
| 570063000 | Rubber Stopper Formula 500. Formula 500 Deluxe. | ||
| 2 | 224021251 | Flat Washer 12 mm Formula 500. Formula 500 Deluxe. | 2 |
| 503152800 | Axle Wheel Formula 500. Formula 500 Deluxe. | ||
| 1 | 503160700 | Rear Axle Formula 500. Formula 500 Deluxe. | 1 |
| 503139500 | Interior Spacer Long Formula 500. Formula 500 Deluxe. | ||
| 2 | 503154800 | Outer Spacer Formula 500. Formula 500 Deluxe. | 2 |
| 4 | 504108200 | SHIM Formula 500. Formula 500 Deluxe. | 4 |
| 570066723 | Wheel 165 (Red) Formula 500. Formula 500 Deluxe. | ||
| 2 | 503183300 | Washer Formula 500. Formula 500 Deluxe. | 2 |
| 224701188 | WASHER-LOCK SPRING DIN.128A-A2 Formula 500. Formula 500 Deluxe. | ||
| 8 | 228781045 | Elastic Flange Stop Nut M8 Formula 500. Formula 500 Deluxe. | 8 |
| 503153100 | Spacer Formula 500. Formula 500 Deluxe. | ||
| 572048300 | Spacer Formula 500. Formula 500 Deluxe. | ||
| 2 | 222003565 | Hex. Screw M10 x 35 Formula 500. Formula 500 Deluxe. | 2 |
| 222023565 | SCREW-HEX.CAP M12 X 35 Formula 500. Formula 500 Deluxe. | ||
| 503182100 | Welded Shock Support Formula 500. Formula 500 Deluxe. | ||
| 4 | 570066622 | Bonded Wheel 135 Formula 500. Formula 500 Deluxe. | 4 |
| 8 | 405404500 | Ball Bearing 6205 Formula 500. Formula 500 Deluxe. | 8 |
| 371901700 | CIRCLIP Formula 500. Formula 500 Deluxe. | ||
| 4 | 414888400 | Cushion Formula 500. Formula 500 Deluxe. | 4 |
| 503174600 | SUPPORT Formula 500. Formula 500 Deluxe. | ||
| 2 | 222088565 | Hex. Screw M8 x 85 Formula 500. Formula 500 Deluxe. | 2 |
| 4 | 222082565 | Hex. Screw M8 x 25 Formula 500. Formula 500 Deluxe. | 4 |
| 4 | 503183100 | Washer Formula 500. Formula 500 Deluxe. | 4 |
| 503151000 | Spacer Formula 500. Formula 500 Deluxe. | ||
| 4 | 503154000 | WASHER Formula 500. Formula 500 Deluxe. | 4 |
| 503174800 | Lower Axle Formula 500. Formula 500 Deluxe. | ||
| 503175400 | Hardened Washer Formula 500. Formula 500 Deluxe. | ||
| 2 | 224781140 | Lock Washer 8 mm Formula 500. Formula 500 Deluxe. | 2 |
| 2 | 222083065 | Hex. Screw M8 x 30 Formula 500. Formula 500 Deluxe. | 2 |
| 503153600 | Wheel Support Axle Formula 500. Formula 500 Deluxe. | ||
| 2 | 572043500 | Idler Wheel Includes 43 - 44. Formula 500. Formula 500 Deluxe. | 2 |
| 2 | 405404600 | Ball Bearing Formula 500. Formula 500 Deluxe. | 2 |
| 6 | 228551045 | Elastic Stop Nut M5 Formula 500. Formula 500 Deluxe. | 6 |
| 503139600 | Interior Spacer Short Formula 500. Formula 500 Deluxe. | ||
| 732601002 | Hex. Screw Formula 500. Formula 500 Deluxe. | ||
| 570066623 | Wheel 135 (Red) Formula 500. Formula 500 Deluxe. | ||
| 1 | 572045800 | Wheel 165 Includes 49 - 50. Formula 500. Formula 500 Deluxe. | 1 |
| 1 | 405404500 | Ball Bearing 6205 Formula 500. Formula 500 Deluxe. | 1 |
| 8 | 391301700 | Washer Formula 500. Formula 500 Deluxe. | 8 |
| 4 | 572084800 | Reinforcement Stopper Formula 500. Formula 500 Deluxe. | 4 |
| 222054065 | SCREW-HEX.CAP DIN.931 Formula 500. Formula 500 Deluxe. | ||
| 4 | 224081171 | Flat Washer 8 mm Formula 500. Formula 500 Deluxe. | 4 |
| 2 | 224001211 | Flat Washer 10 mm Formula 500. Formula 500 Deluxe. | 2 |
| 1 | 413707400 | Loctite 271, 10cc Formula 500. Formula 500 Deluxe. | 1 |
| 2 | 222088065 | Hex. Screw M8 x 80 Formula 500. Formula 500 Deluxe. | 2 |
| 503173700 | WASHER Formula 500. Formula 500 Deluxe. | ||
| 224721218 | Lock Washer 12 mm Formula 500. Formula 500 Deluxe. |
