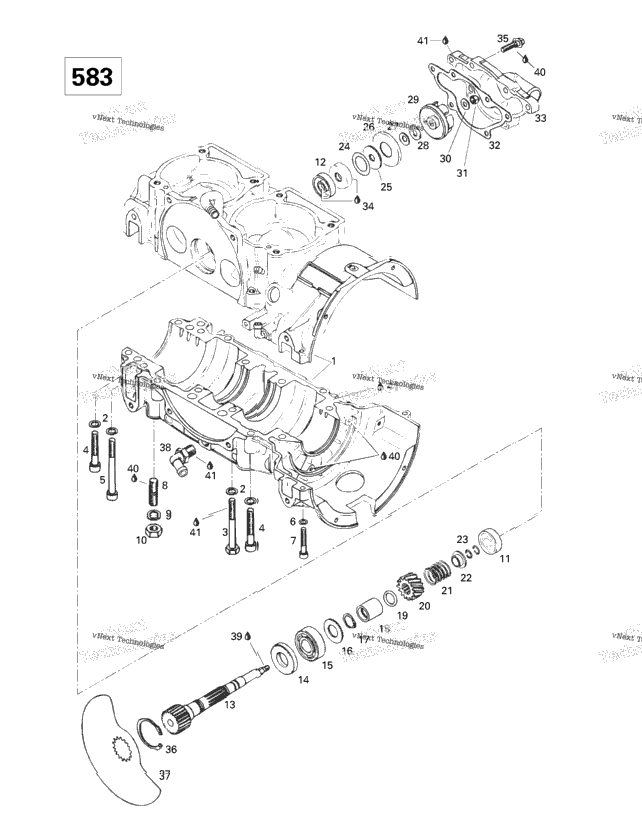

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 420886848 | Crankcase Ass'y Includes 1 - 7. Formula Z 583. Formula 583 Deluxe. | ||
| 14 | 420945752 | Lock Washer 8 mm Formula Z 583. Formula 583 Deluxe. | 14 |
| 6 | 222086565 | Hex. Screw M8 x 65 Formula Z 583. Formula 583 Deluxe. | 6 |
| 420841561 | Socket Head Screw M8 X 45 Formula Z 583. Formula 583 Deluxe. | ||
| 2 | 420841831 | ALLEN SCREW M8 X 75 Formula Z 583. Formula 583 Deluxe. | 2 |
| 420945751 | WASHER-LOCK DIN.128 Formula Z 583. Formula 583 Deluxe. | ||
| 2 | 420241811 | Socket Head Screw M6 X 35 Formula Z 583. Formula 583 Deluxe. | 2 |
| 420940190 | Stud M10 X 29/20 Formula Z 583. Formula 583 Deluxe. | ||
| 420945753 | Lock Washer Formula Z 583. Formula 583 Deluxe. | ||
| 4 | 228001045 | Hex. Nut M10 Formula Z 583. Formula 583 Deluxe. | 4 |
| 1 | 420932797 | Ball Bearing Formula Z 583. Formula 583 Deluxe. | 1 |
| 420850710 | Oil Seal Formula Z 583. Formula 583 Deluxe. | ||
| 420837242 | Rotary Valve Shaft Formula Z 583. Formula 583 Deluxe. | ||
| 420930580 | OIL SEAL Formula Z 583. Formula 583 Deluxe. | ||
| 1 | 405406400 | Ball Bearing «6203» Formula Z 583. Formula 583 Deluxe. | 1 |
| 420227439 | SHIM Formula Z 583. Formula 583 Deluxe. | ||
| 1 | 420845450 | SNAP RING Formula Z 583. Formula 583 Deluxe. | 1 |
| 1 | 420847282 | SPACER BUSHING Formula Z 583. Formula 583 Deluxe. | 1 |
| 1 | 420831500 | O-Ring Formula Z 583. Formula 583 Deluxe. | 1 |
| 1 | 420935735 | Sprocket 14 Teeth Formula Z 583. Formula 583 Deluxe. | 1 |
| 1 | 420938810 | SPRING Formula Z 583. Formula 583 Deluxe. | 1 |
| 1 | 420827430 | SPRING SEAT Formula Z 583. Formula 583 Deluxe. | 1 |
| 2 | 420845160 | CIRCLIP Formula Z 583. Formula 583 Deluxe. | 2 |
| 1 | 420944462 | SHIM Formula Z 583. Formula 583 Deluxe. | 1 |
| 1 | 420850890 | Rubber Washer Formula Z 583. Formula 583 Deluxe. | 1 |
| 1 | 420827970 | Supporting Plate Formula Z 583. Formula 583 Deluxe. | 1 |
| 1 | 420227945 | Thrust Washer Formula Z 583. Formula 583 Deluxe. | 1 |
| 420227155 | Washer Formula Z 583. Formula 583 Deluxe. | ||
| 420922036 | WATER IMPELLER Formula Z 583. Formula 583 Deluxe. | ||
| 1 | 224061121 | Flat Washer Formula Z 583. Formula 583 Deluxe. | 1 |
| 420842042 | Locking Nut M6 Formula Z 583. Formula 583 Deluxe. | ||
| 420931355 | Gasket Formula Z 583. Formula 583 Deluxe. | ||
| 420922551 | Water Pump Housing Formula Z 583. Formula 583 Deluxe. | ||
| 1 | 413707000 | Dow Corning 111, 150 g Formula Z 583. Formula 583 Deluxe. | 1 |
| 6 | 420240031 | Hex. Screw M6 X 25 Formula Z 583. Formula 583 Deluxe. | 6 |
| 1 | 420845260 | Snap Ring Formula Z 583. Formula 583 Deluxe. | 1 |
| 1 | 420924502 | ROTARY VALVE, 159 Formula Z 583. Formula 583 Deluxe. | 1 |
| 1 | 420922245 | Angular Tube Formula Z 583. Formula 583 Deluxe. | 1 |
| 1 | 413711400 | Loctite 648, 10 ml Formula Z 583. Formula 583 Deluxe. | 1 |
| 1 | 413703000 | Loctite 242, 10 cc Formula Z 583. Formula 583 Deluxe. | 1 |
| 413707100 | Sealant, 100 gr Formula Z 583. Formula 583 Deluxe. |
