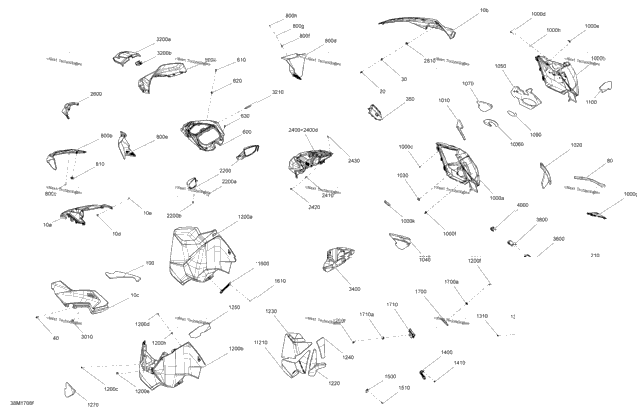

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 1 | 517304796 | Deep Black, Center Hood | 1 |
| 1 | 517305239 | Deep Black, RH Hood | 1 |
| 1 | 517305240 | Deep Black, LH Hood | 1 |
| 8 | 293150104 | Pop Rivet 3/16" | 8 |
| 8 | 517124300 | Washer | 8 |
| 6 | 250000528 | Torx Screw M5 X 20 | 6 |
| 8 | 250000079 | Panel Nut M5 X 0.8 | 8 |
| 2 | 250000587 | Torx Screw M5 X 26 | 2 |
| 1 | 517305090 | RH Rear Hood Foam | 1 |
| 1 | 517305091 | LH Rear Hood Foam | 1 |
| 1 | 517305641 | Deep Black, Rear Console | 1 |
| 1 | 517304518 | Console Nut | 1 |
| 2 | 250000705 | Torx Truss Screw M6 X 20 | 2 |
| 2 | 250000048 | Panel Nut M6 X 1.0 | 2 |
| 1 | 517305549 | Deep Black, RH Front Console | 1 |
| 1 | 517306021 | CONSOLE-FRONT | 1 |
| 1 | 517305511 | Deep Black, Indicator Support | 1 |
| 4 | 250000528 | Torx Screw M5 X 20 | 4 |
| 4 | 250000079 | Panel Nut M5 X 0.8 | 4 |
| 1 | 517306043 | Windshield 490mm | 1 |
| 1 | 860200944 | Windshield Support Long, Yellow 2000 | 1 |
| 6 | 732610072 | Push Nut | 6 |
| 1 | 517305737 | RH Air Deflector | 1 |
| 1 | 517305738 | LH Air Deflector | 1 |
| 4 | 250000720 | Torx Screw K50 X 16 | 4 |
| 4 | 250200025 | Washer M5 | 4 |
| 4 | 250200024 | Rubber Washer 5 mm | 4 |
| 3 | 517303756 | Grommet | 3 |
| 1 | 517305714 | Black, RH Panel | 1 |
| 1 | 517304802 | Deep Black, Panel Trim RH | 1 |
| 5 | 250100158 | Push Nut | 5 |
| 4 | 517305109 | Rivet Plate | 4 |
| 1 | 517305504 | Pin | 1 |
| 1 | 517305715 | Grille | 1 |
| 4 | 517124300 | Washer | 4 |
| 1 | 517305731 | Bumper Stopper | 1 |
| 1 | 517305793 | RH Foam Central | 1 |
| 1 | 517305801 | RH Foam Rear | 1 |
| 2 | 517305451 | Heat Shield | 2 |
| 1 | 517305790 | RH Foam Upper | 1 |
| 1 | 517305792 | RH Foam Lower | 1 |
| 1 | 517305795 | Foam | 1 |
| 1 | 517305791 | Foam | 1 |
| 1 | 517305796 | Rubber Sheet | 1 |
| 1 | 517305794 | Foam | 1 |
| 1 | 517305717 | Black, LH Panel | 1 |
| 1 | 517304805 | Black, LH Flashing Panel | 1 |
| 2 | 250100158 | Push Nut | 2 |
| 1 | 517305802 | Foam | 1 |
| 1 | 517305797 | Foam | 1 |
| 1 | 517305798 | Foam | 1 |
| 1 | 517305803 | Foam | 1 |
| 1 | 517305800 | Foam | 1 |
| 1 | 517305799 | Foam | 1 |
| 2 | 517305279 | Panel Latch | 2 |
| 2 | 250000565 | Hexalob Screw M4 X 10 | 2 |
| 2 | 250100156 | Weld Nut M4 | 2 |
| 1 | 517303612 | RH Panel Latch | 1 |
| 1 | 517304919 | RH Panel Latch | 1 |
| 1 | 293150108 | Pop Rivet 3/16” | 1 |
| 1 | 517304221 | Latch Support | 1 |
| 1 | 250000792 | Torx Screw M5 X 20 | 1 |
| 1 | 517303808 | LH Panel Latch | 1 |
| 1 | 517305724 | RH Panel Clip Ass'y, Black Includes 1700 to 1700a | 1 |
| 1 | 517305723 | Ring | 1 |
| 1 | 517305722 | LH Panel Clip Ass'y, Black Includes 1710 to 1710a | 1 |
| 1 | 517305100 | RH Mirror Ass'y | 1 |
| 1 | 517305101 | LH Mirror Ass'y | 1 |
| 4 | 250000721 | Torx Truss Screw M6 X 16 | 4 |
| 6 | 250200024 | Rubber Washer 5 mm | 6 |
| 1 | 517306180 | Headlamp Includes 2400 to 2400d | 1 |
| 2 | 219400070 | Cap | 2 |
| 2 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) | 2 |
| 2 | 219800282 | Holder Bracket | 2 |
| 2 | 219800281 | Spring | 2 |
| 2 | 250000528 | Torx Screw M5 X 20 | 2 |
| 2 | 250100035 | Jack Nut M5 | 2 |
| 2 | 250000725 | Screw M4 X 16 | 2 |
| 1 | 517305010 | Headlight Trim Cap | 1 |
| 2 | 517302841 | Grommet | 2 |
| 1 | 517304912 | Deep Black, Upper Storage Access Cover | 1 |
| 1 | 517304917 | Cover Latch | 1 |
| 2 | 517305157 | Seal Joint | 2 |
| 1 | 517305095 | Deep Black, Trunk | 1 |
| 1 | 517304970 | Deep Black, Console Support | 1 |
| 1 | 517305147 | Deep Black, Support Console Cap | 1 |
| 1 | 517305148 | Deep Black, Support Console Cap | 1 |
