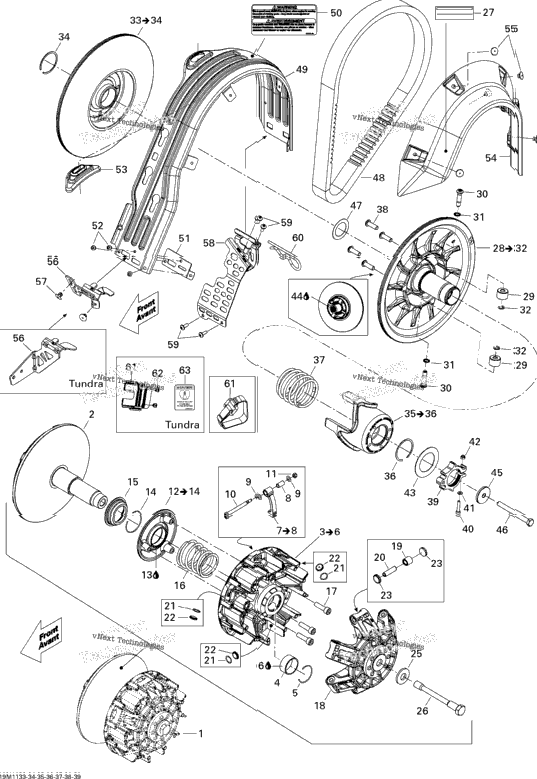

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| XXXX | Not Available As Spare Part - Drive Pulley Ass'y | ||
| 1 | 417223286 | Fixe Flange Ass'y | 1 |
| 417223288 | Sliding Flange Ass'y Includes 3 to 6 | ||
| XXX | Not Available As Spare Parts Included In Ramp Kit | ||
| 1 | 293370065 | Circlip | 1 |
| 293800118 | ADHESIVE LOCTITE 680 | ||
| 417223452 | Ramp 715 Includes 7 to 8 | ||
| 12 | 417223255 | Thrust Washer | 12 |
| 6 | 417223258 | Axle Ramp | 6 |
| 6 | 232551414 | Elastic Stop Nut M5 | 6 |
| 417223373 | Sliding Adaptor Ass'y Includes 12 to 14 | ||
| 293370063 | CIRCLIP | ||
| 417223155 | SPRING SEAT | ||
| 1 | 417223314 | Spring Clutch | 1 |
| 3 | 250000473 | SCREW-SOCKET HEAD S.GRIP | 3 |
| 417223283 | Governor Cup Ass'y | ||
| 6 | 417223387 | Roller | 6 |
| 6 | 417223257 | Roller Axle | 6 |
| 3 | 293300145 | O-ring | 3 |
| 3 | 417223254 | Slider Shoe | 3 |
| 9 | 417223269 | Slider Shoe | 9 |
| 1 | 250200006 | Spring Washer 14 mm | 1 |
| 1 | 417300407 | DRIVE BOLT PULLEY | 1 |
| 1 | 516004542 | English Decal | 1 |
| 1 | 417127229 | Fixed Flange Ass'y Includes 28 to 32 | 1 |
| 2 | 417127016 | Pulley Roller | 2 |
| 2 | 417127128 | Stud | 2 |
| 2 | 250200009 | Lock Washer 8 mm | 2 |
| 2 | 414753500 | Circlip | 2 |
| 1 | 417127231 | Slider Flange Ass'y Includes 33 to 34 | 1 |
| 1 | 293370049 | Circlip | 1 |
| 1 | 417127235 | Cam Ass'y Includes 35 to 36 | 1 |
| 1 | 417127236 | Spring Release | 1 |
| 4 | 250000283 | Torx Screw M8 X 25, Scotch Grip | 4 |
| 417127248 | Adjustment Pulley Ass'y | ||
| 1 | 205052544 | Socket Screw M5 X 25 | 1 |
| 1 | 234051410 | Flat Washer M5 | 1 |
| 1 | 232551414 | Elastic Stop Nut M5 | 1 |
| 1 | 417127155 | Washer | 1 |
| 219704461 | LUBRICANT LOCTITE LB 8150 236ML | ||
| 1 | 517302322 | Strength Washer | 1 |
| 1 | 207287544 | Hex. Cap Screw M8 X 75 | 1 |
| 1 | 504112000 | Shim | 1 |
| 1 | 414860700 | Drive Belt | 1 |
| 1 | 417300382 | Belt Guard | 1 |
| 1 | 516004595 | Security Label Decal English | 1 |
| 1 | 417300380 | Reinforcement | 1 |
| 3 | 390909200 | Avex Rivet | 3 |
| 1 | 417300381 | Guide | 1 |
| 1 | 417300356 | Side Protector | 1 |
| 5 | 293150103 | Pop Rivet 3/16" | 5 |
| 1 | 417300360 | FRONT BELT GUARD BRACKET | 1 |
| 2 | 293150104 | Pop Rivet 3/16" | 2 |
| 1 | 417300375 | Belt Guard Bracket | 1 |
| 4 | 250000145 | Torx Screw M5 X 14 | 4 |
| 1 | 114045200 | Hair Pin | 1 |
| 1 | 508000599 | Velcro Strip | 1 |
| XXX | Not Available As Spare Parts |
