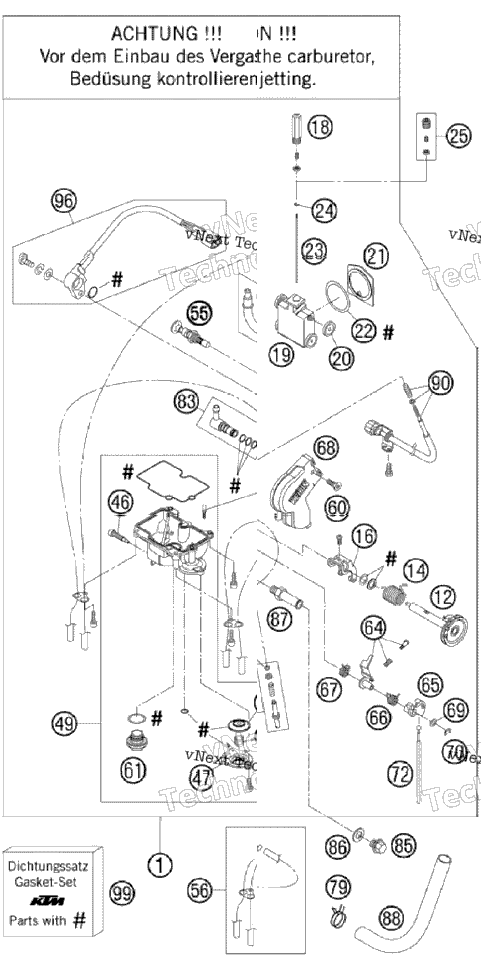

Список запчастей
| № | Артикул | Название | Кол-во |
|---|---|---|---|
| 77031001500 | CARBURETOR FCR-MX 3900K,TPS 08 08 | ||
| 1 | 57331027044 | CARBURETOR COVER WITH GASKET | 1 |
| 57331046100 | THROTTLE SHAFT CPL. 06 06 | ||
| 1 | 57331046050 | COIL SPRING THROTTLE SHAFT | 1 |
| 76231035051 | LINK ARM THROTTLE VALVE CPL.07 07 | ||
| 59031029010 | SLIDE STOP 03 03 | ||
| 57331035100 | THROTTLE VALVE CPL. FCRMX 2007 2007 | ||
| 1 | 59031035050 | BUSHING THROTTLE VALVE | 1 |
| 1 | 57331035153 | GASKET PLATE THROTTLE VALVE 04 04 | 1 |
| 1 | 59031035052 | GASKET WASHER THROTTLE VALVE | 1 |
| 1 | 57331034100 | JET NEEDLE KEIHIN OBEKP (As required) | 1 |
| 57331034500 | JET NEEDLE KEIHIN OBEKT (As required) | ||
| 1 | 59031034100 | JET NEEDLE KEIHIN OBETP (As required) | 1 |
| 1 | 59031034200 | JET NEEDLE KEIHIN OBETN (As required) | 1 |
| 59031034300 | JET NEEDLE KEIHIN OBETQ (As required) | ||
| 77031034000 | JET NEEDLE KEIHIN OBDYS (As required) | ||
| 1 | 59031029000 | BAR CLIP | 1 |
| 1 | 57331032000 | NEEDLE SET SCREW CPL. | 1 |
| 1 | 59031121000 | NEEDLE JET FCR-MX | 1 |
| 1 | 54531623160 | MAIN JET 160 KEIHIN (As required) | 1 |
| 1 | 54531623162 | MAIN JET 162 KEIHIN (As required) | 1 |
| 1 | 54531623165 | MAIN JET 165 KEIHIN (As required) | 1 |
| 1 | 54531623168 | MAIN JET 168 KEIHIN (As required) | 1 |
| 1 | 54531623170 | MAIN JET 170 KEIHIN (As required) | 1 |
| 1 | 54531623172 | MAIN JET 172 KEIHIN (As required) | 1 |
| 1 | 54531623175 | MAIN JET 175 KEIHIN (As required) | 1 |
| 1 | 54531623178 | MAIN JET 178 KEIHIN (As required) | 1 |
| 1 | 54531607038 | IDLE JET 38 KEIHIN (As required) | 1 |
| 1 | 54531607040 | IDLE JET 40 KEIHIN (As required) | 1 |
| 1 | 54531607042 | IDLE JET 42 KEIHIN (As required) | 1 |
| 1 | 59031051065 | STARTER JET 65 (As required) | 1 |
| 59031051070 | STARTER JET 70 (As required) | ||
| 1 | 59031051075 | STARTER JET 75 (As required) | 1 |
| 59031051080 | STARTER JET 80 (As required) | ||
| 1 | 59031051085 | STARTER JET 85 (As required) | 1 |
| 1 | 57331107100 | IDLE AIR JET 100 KEIHIN | 1 |
| 1 | 59031017100 | ADJUST SCREW CPL. FCR-MX | 1 |
| 1 | 57331085000 | BUFFER PLATE | 1 |
| 1 | 57331009000 | FLOAT CPL. | 1 |
| 1 | 57331008000 | ARM PIN FLOAT | 1 |
| 1 | 78031096044 | STARTER VALVE CPL. | 1 |
| 1 | 54631220000 | FLOAT NEEDLE | 1 |
| 1 | 54531621000 | CLAMP | 1 |
| 1 | 76231155000 | DRAIN SCREW + O-RING | 1 |
| 1 | 57331060000 | COVER ACCELERATOR PUMP | 1 |
| 1 | 57331057100 | DIAPHRAGM ACCELERATOR PUMP | 1 |
| 1 | 78031011000 | FLOAT CHAMBER CPL. 08 08 | 1 |
| 54631085000 | JET POWER JET CLOSED KEIHIN (As required) | ||
| 1 | 54631085050 | JET POWER JET 50 KEIHIN (As required) | 1 |
| 1 | 54631085060 | JET POWER JET 60 KEIHIN (As required) | 1 |
| 1 | 54631085070 | JET POWER JET 70 KEIHIN (As required) | 1 |
| 1 | 59031059000 | COIL SPRING | 1 |
| 1 | 77031048000 | STARTER VALVE SHORT CPL. | 1 |
| 1 | 57331098000 | BREATH.HOSE FCR-MX KEIHIN CPL. | 1 |
| 1 | 0965050103 | FLAT HEAD SCREW DIN0965-M 5X10 | 1 |
| 1 | 54531699000 | PLUG M 18X1 | 1 |
| 1 | 57331062000 | INTERMEDIATE LEVER CPL. | 1 |
| 1 | 57331056000 | LINK LEVER | 1 |
| SXS08250030 | SXS ACCELERATION PUMP SPRING | ||
| 1 | 57331159000 | SPRING INTERMEDIATE LEVER | 1 |
| 1 | 57331038200 | CARBURETOR COVER 06 06 | 1 |
| 1 | 57331087000 | WASHER LINK LEVER | 1 |
| 1 | 57331084000 | E-CLIP | 1 |
| 1 | 57331061000 | ROD ACCELERATOR PUMP | 1 |
| 1 | 58431082100 | YDNAC-CLAMP 10173 (16MM) '98 (16MM) '98 | 1 |
| 1 | 59031013044 | HOSE CONNECTOR CPL. | 1 |
| 1 | 0910100003 | PLUG DIN0910-M 10X1 | 1 |
| 1 | 0603100141 | sealing ring DIN 7603 10x14x1 | 1 |
| 1 | 59031040300 | HOSE CONNECTOR KEIHIN | 1 |
| 1 | 77031050000 | ENGINE BREATHER TUBE | 1 |
| 1 | 57331025000 | STOP SCREW CPL. FCR-MX | 1 |
| 1 | 59031077200 | TPS-SENSOR FCRMX 190MM 2006 2006 | 1 |
| 1 | 57331099000 | GASKET SET FCR-MX KEIHIN | 1 |
